Assembly Instructions for Best Choice Products 2-Door Rattan Cabinet
Step-by-step assembly guide for the Best Choice Products 2-Door Rattan Cabinet (Models SKY9212, SKY9213, SKY9214, SKY9215). Includes hardware lists, assembly steps, and safety warnings.
Quick answers from the manual
Quick answer
- This manual provides assembly instructions for the Best Choice Products 2-Door Rattan Cabinet. It requires 2 people and approximately 60 minutes to assemble. p. 3
Key actions
- Assemble the cabinet frame using cam locks and dowels. p. 6, 7
- Attach the base frame and foot caps. p. 8, 9
- Attach doors and handles. p. 10, 11
Problems and fixes
Door alignment issues
Use a Phillips screwdriver to adjust the pre-installed screws on the hinges.
p. 10Maintenance and reset
- Reconfirm that all bolts, screws, and knobs are secure every 90 days. p. 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Cabinet Top Capacity | 99 lbs | Maximum weight limit for the top surface | p. 3 |
| Top Shelf Capacity | 44 lbs | Maximum weight limit for the internal shelf | p. 3 |
| Cabinet Bottom Capacity | 99 lbs | Maximum weight limit for the bottom surface | p. 3 |
Where to find it in the PDF
- Hardware and Tools p. 3

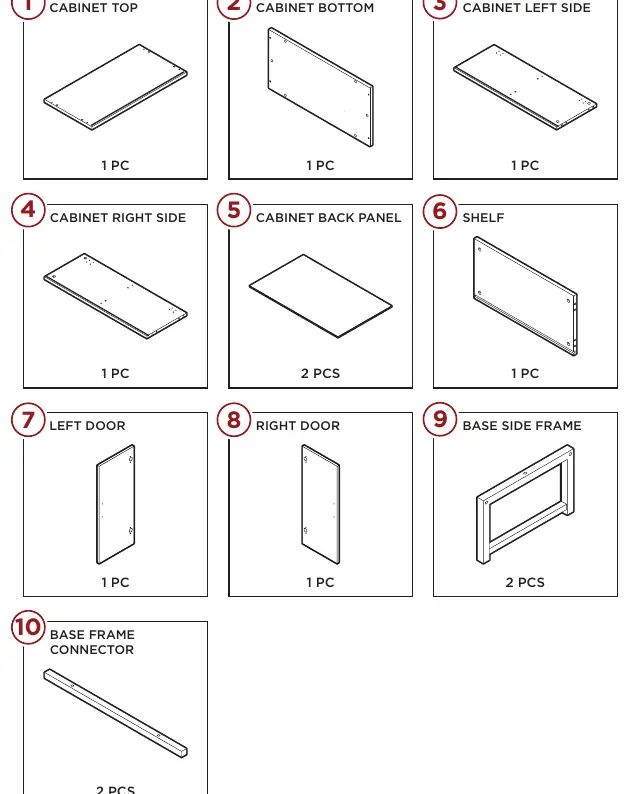

- Parts List p. 4
- Assembly Steps p. 5, 6, 7, 8
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This cabinet requires 2-person assembly and takes approximately 60 minutes to complete. Please ensure you have a clear workspace and the necessary tools before beginning.
Weight Limitations
- Cabinet Top: 99 lbs
- Top Shelf: 44 lbs
- Cabinet Bottom: 99 lbs
Tools Required
- Phillips screwdriver
- M6 Allen wrench (provided)
- Power drill (recommended)

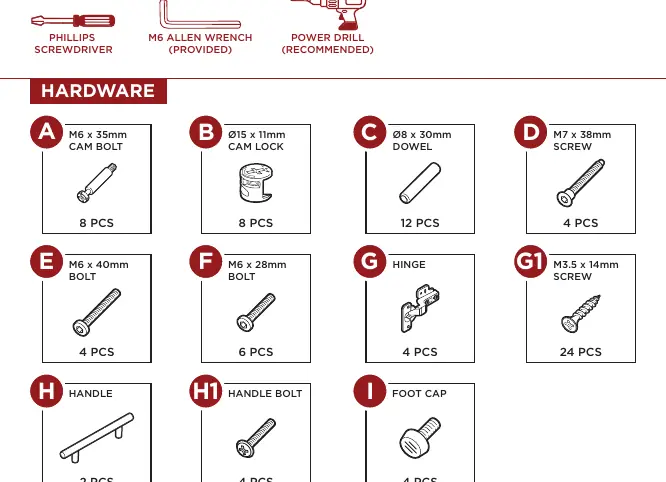

Hardware and Parts
Before starting, verify all parts and hardware are present. The hardware includes cam bolts, cam locks, dowels, screws, hinges, handles, and foot caps. The parts include the cabinet top, bottom, sides, back panels, shelf, doors, and base frame components.
Assembly Instructions
Step 1: Preparation
Insert cam bolts into the cabinet top, left side, and right side. Attach hinges to the left and right doors using the provided screws.
Step 2: Main Frame Assembly
Attach the shelf to the left and right sides using dowels and cam locks. Turn cam locks halfway to secure. Insert dowels into the top of the side panels.
Step 3: Back Panels and Top
Slide the back panels into the grooves on the side panels and shelf. Attach the cabinet top to the side panels and tighten all cam locks fully.
Step 4: Bottom and Base
Attach the cabinet bottom to the side panels using dowels and screws. Assemble the base frame using connectors and bolts, then attach the base frame to the cabinet bottom. Screw in the foot caps and adjust for level.
Step 5: Doors and Handles
Attach the doors to the cabinet using the hinges and screws. Use the adjustment screws on the hinges to align the doors properly. Finally, attach the handles to the doors.
Safety and Maintenance
- Do not exceed the weight limitations.
- Do not stand on or use the item as a step ladder.
- Reconfirm that all bolts, screws, and knobs are secure every 90 days.
- Do not use or store near open flames or flammable chemicals.
- If parts are missing or damaged, stop using the product until repaired.
Manufacturer information
Best Choice Products
Practical help
Common problems
Doors are misaligned
Use a Phillips screwdriver to adjust the two pre-installed screws on each hinge after attaching the doors.
Parts are missing or damaged
Stop assembly immediately and contact Best Choice Products customer support.
Before use
- Verify all parts and hardware are present
- Ensure you have a Phillips screwdriver
- Clear a 60-minute workspace
- Have a second person available for assembly
- Check that all feet are level after assembly
Specs in practice
- Cabinet Top Capacity
- Maximum weight limit of 99 lbs for the top surface.
- Top Shelf Capacity
- Maximum weight limit of 44 lbs for the internal shelf.
- Cabinet Bottom Capacity
- Maximum weight limit of 99 lbs for the bottom surface.
Images and diagrams
- Cam locks require a 50% turn to secure initially, and 100% to lock.
- Hinges feature adjustment screws for fine-tuning door position.
Model compatibility
- This manual applies to models SKY9212, SKY9213, SKY9214, and SKY9215.
