User Manual for Best Choice Products 2-Tier Square LED Cantilever Umbrella

Quick Guide

This umbrella is designed for residential use. Important: Do not use the umbrella without base weights. The recommended weight is over 200 lbs. The umbrella is suitable for rain showers and light wind but should not be used in inclement weather such as snow, thunderstorms, or strong winds. Ensure all bolts, screws, and knobs are secured before use and re-checked every 90 days.

Assembly Instructions

Assembly requires two people and takes approximately 30 minutes. Tools provided include S10 and S5 Allen wrenches.

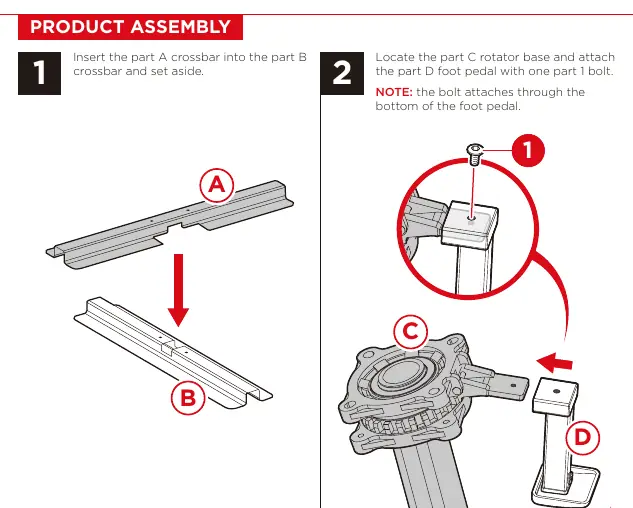

• Step 1: Insert the part A crossbar into the part B crossbar.
• Step 2: Attach the part D foot pedal to the part C rotator base using one part 1 bolt. The bolt attaches through the bottom of the foot pedal.

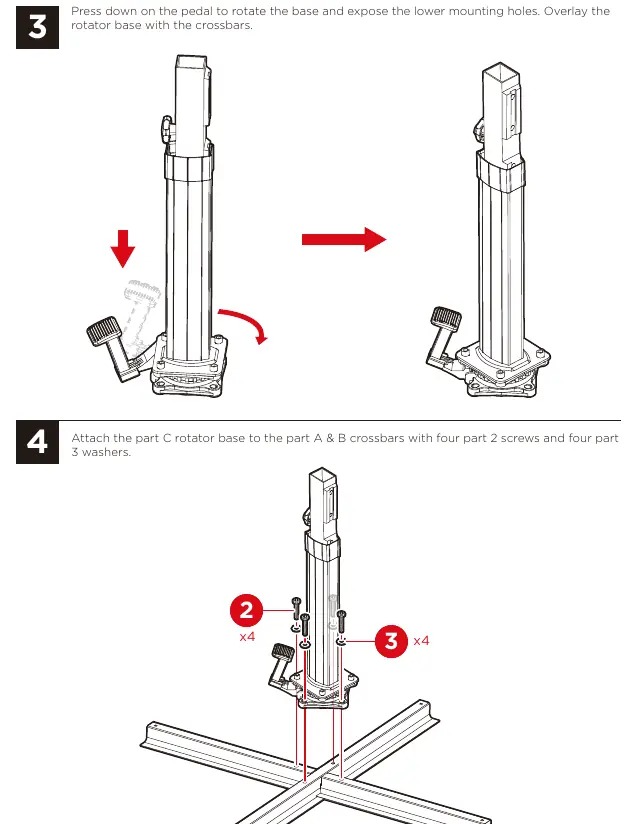

• Step 3: Press down on the pedal to rotate the base and expose the lower mounting holes. Overlay the rotator base with the crossbars.
• Step 4: Attach the rotator base to the crossbars using four part 2 screws and four part 3 washers.
• Step 5: Fill the part J and K base weights with sand or water. Do not mix sand and water. Capacity is 220 lbs of water or 308 lbs of sand.
• Step 6: Place the base weights over the crossbar assembly (K weights closest to the rotator base, J weights on the outside). Slide the part E rotator plate over the base. Ensure the pedal can move through the plate opening.

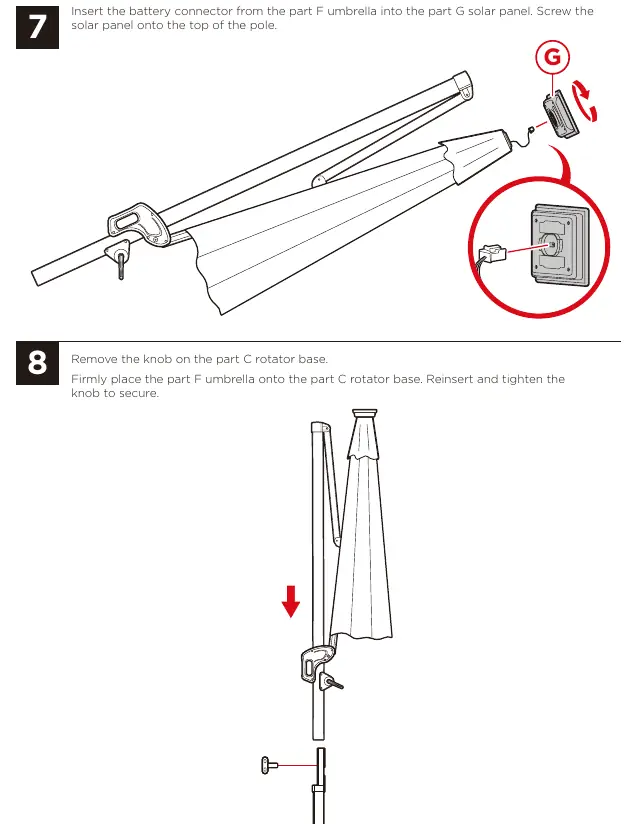

• Step 7: Connect the battery cable from the umbrella to the part G solar panel and screw the panel onto the top of the pole.
• Step 8: Remove the knob on the rotator base, place the umbrella onto the base, and reinsert/tighten the knob to secure.

Operating the Umbrella

Before First Use: Hold the umbrella upside down and shake gently to separate the ribs. Insert the crank handle and turn slowly to open.

Opening the Canopy: Grip and squeeze the handle to engage the release, move the arm up, release the handle to lock, and turn the crank to open.

Adjusting the Tilt: Grip and squeeze the handle to move the arm up or down. Release to lock. Step on the foot pedal to rotate the canopy.

Turning on Lights: Press the power switch located on the canopy.

Storage and Maintenance

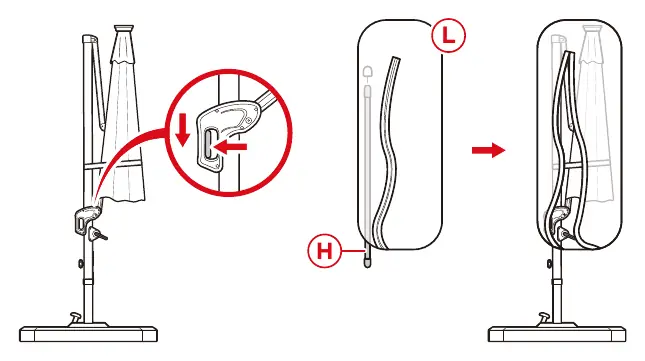

Storage: Close the canopy when not in use. Move the arm all the way down and secure with the touch fastener. Use the part H cover support and part L umbrella cover to protect the unit. Store in a dry area.

Cleaning: Wipe clean with mild detergent, warm water, and a soft cloth. Do not use abrasive cleaners.

Battery Safety

The solar panel requires 6 to 7 hours of direct sunlight to fully charge. LED lights last for 6 to 7 hours on a single charge. Do not mix battery types (alkaline, standard, rechargeable). Remove batteries if the product will not be used for an extended period. Ensure correct polarity (+/-) during insertion.
