This document provides essential information for the safe and efficient operation of the Bosch GSB 12V-15 Professional cordless combi drill. Always read the full safety instructions provided in the original manual before use.
Device Description
The GSB 12V-15 is a cordless combi drill designed for drilling in wood, metal, ceramic, and plastic, as well as impact drilling in brick, masonry, and stone. It also functions as a screwdriver.
Operation
Inserting the Battery: Set the rotational direction switch to the middle position to prevent accidental starting. Insert the charged battery into the handle until it engages audibly.
Setting Rotational Direction: Use the rotational direction switch to change the direction. Right rotation is for drilling and driving screws; left rotation is for loosening screws and nuts.
Operating Modes: Use the operating mode presetting ring to select between drilling, screwdriving, or impact drilling.
Torque Preselection: The torque presetting ring allows you to select the required torque in 20 stages.
Mechanical Gear Selection: Use the gear selector switch only when the tool is at a standstill. Gear I is for low speeds (large drilling diameter or screwdriving), and Gear II is for high speeds (small drilling diameter).
Maintenance and Cleaning
Always remove the battery before performing any work on the tool (e.g., maintenance, tool change, transport, or storage). Keep the tool and ventilation slots clean for safe and efficient operation.
Safety
Wear ear protection when impact drilling. Always hold the tool by insulated gripping surfaces when performing operations where the tool bit or fasteners may contact hidden wiring.
Manufacturer information
Bosch
Practical help
Common problems
Tool does not start
Check battery charge status and ensure the battery is properly inserted.
Tool stops automatically
The battery is discharged or the tool is overloaded. Recharge the battery or reduce the load.
Before use
- Ensure the battery is fully charged.
- Check that the correct tool bit is inserted and securely locked.
- Set the correct rotational direction.
- Select the appropriate operating mode (drilling, screwdriving, or impact drilling).
- Select the correct gear (I or II).
Specs in practice
- Rated voltage
- 12V DC power supply.
- No-load speed
- 0-380 rpm (1st gear) / 0-1300 rpm (2nd gear).
Images and diagrams

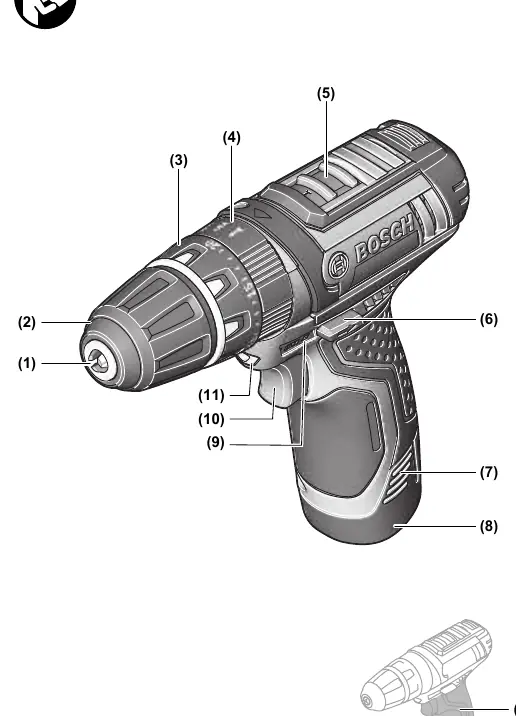

- The tool features a keyless chuck, torque presetting ring, gear selector, and rotational direction switch.
- The battery release button is located on the battery pack itself.
Model compatibility
- Use only Bosch GBA 12V series batteries.
- Use only Bosch GAL 12 or GAX 18 series chargers.
