BOSCH GSR 10,8-LI Professional Cordless Screwdriver
The Bosch GSR 10,8-LI Professional is a compact and powerful cordless screwdriver designed for driving and loosening screws, as well as drilling in wood, metal, ceramic, and plastic. It features a 2-speed gearbox, 20+1 torque settings, and...
Table of contents
Manual images
Jump to the sectionProduct Description

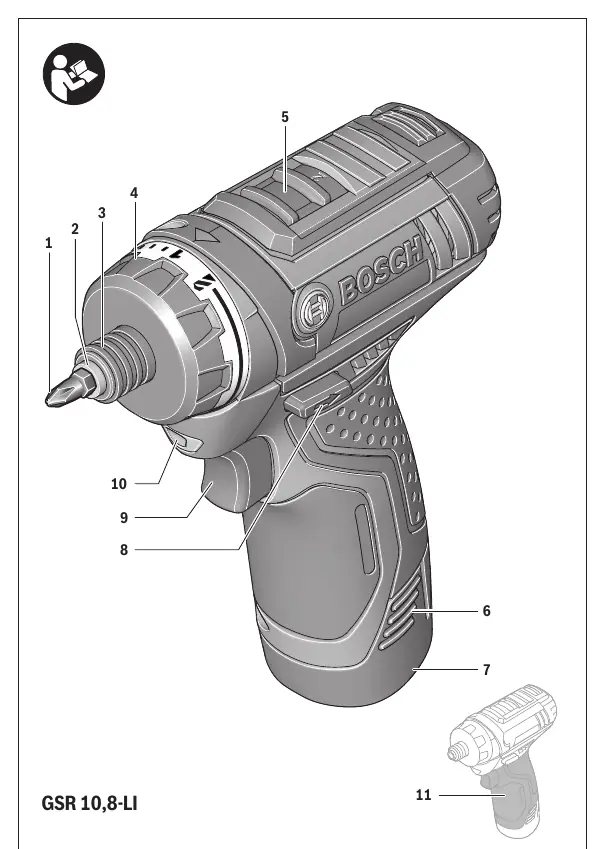

The Bosch GSR 10,8-LI Professional is a versatile cordless screwdriver designed for professional use. It is ideal for driving and loosening screws, as well as drilling into materials such as wood, metal, ceramic, and plastic. The tool is powered by a lithium-ion battery, which is protected against deep discharge by the Electronic Cell Protection (ECP) system.
Operation
The tool features a 2-speed gearbox, allowing for high torque in the first gear and high speed in the second gear. The torque can be precisely adjusted using the 20-step torque presetting ring, ensuring screws are driven flush with the material surface. The integrated PowerLight illuminates the immediate work area, making it easier to work in poorly lit conditions. The tool also includes an automatic spindle lock (Auto-Lock) for manual screwdriving when the battery is empty.
Safety Notes
- Always wear personal protective equipment, including safety glasses.
- Keep the work area clean and well-lit to prevent accidents.
- Do not operate the tool in explosive atmospheres.
- Remove the battery before performing any maintenance, changing accessories, or during transport to prevent accidental starting.
- Hold the tool by insulated gripping surfaces when performing operations where the fastener may contact hidden wiring.
Maintenance
To ensure safe and efficient operation, keep the tool and its ventilation slots clean. Regularly clean the tool holder and the insert tool to maintain the locking and releasing function of the locking sleeve. If the battery is no longer functional, please contact an authorized Bosch service center.
Transport and Disposal
The lithium-ion batteries are subject to dangerous goods legislation. Users can transport the batteries by road without further requirements. When shipping via third parties, special requirements regarding packaging and labeling must be observed. Dispose of power tools, batteries, accessories, and packaging in an environmentally friendly manner.
Manufacturer information
Bosch
Practical help
Common problems
Tool does not start
Check if the battery is charged and properly inserted. Ensure the rotational direction switch is not in the center position.
Tool stops during operation
The tool may be overloaded or the battery temperature is outside the permitted range. Allow the tool to cool down.
Gear selector cannot be pushed
Lightly turn the tool holder with the insert tool to align the gears.
Before use
- Ensure the battery is fully charged.
- Check that the correct bit is inserted and locked.
- Set the desired rotational direction.
- Select the appropriate gear (I or II).
- Adjust the torque setting for the specific task.
Specs in practice
- Rated voltage
- 10.8V, the operating voltage of the tool.
- No-load speed
- 0-400 rpm (1st gear) and 0-1300 rpm (2nd gear).
- Max. drilling diameter
- 10 mm in steel, 19 mm in wood.
Images and diagrams

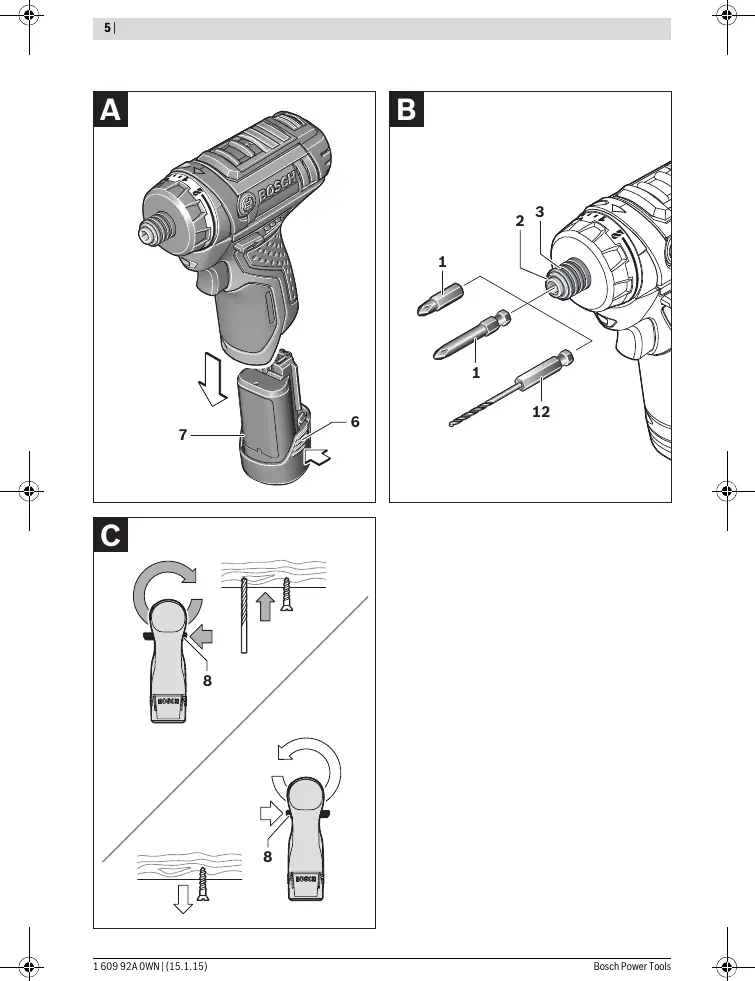

- Figure A: Battery removal and charging.
- Figure B: Inserting and removing the tool bit.
- Figure C: Setting the rotational direction.
Model compatibility
- Use only original Bosch lithium-ion batteries (GBA 10,8 V...).
- Use only recommended Bosch chargers (AL 11..).
