User Manual for Bosch GSR 18 V-EC TE Professional Cordless Drywall Screwdriver
Quick guide for the Bosch GSR 18 V-EC TE Professional cordless screwdriver, covering battery operation, bit changing, depth adjustment, and safety instructions.
Table of contents
Quick guide from the manual
The Bosch GSR 18 V-EC TE Professional is a cordless screwdriver designed for driving in and loosening screws. This document provides essential information on safe operation, battery management, and tool adjustments. Always remove the battery before performing maintenance or changing accessories to prevent accidental activation.
Operation
To start the tool, press and hold the On/Off switch. The integrated LED illuminates the work area when the switch is partially or fully pressed. Use the lock-on button to keep the tool running during continuous use.
Reversing Rotation
The rotational direction switch allows you to change the direction of the bit. Ensure the switch is in the center position to prevent accidental starting when not in use. Move the switch to the left or right stop to select the desired rotation.
Adjusting Screw-in Depth
Use the adjustment sleeve to preset the screw-in depth. Each of the 8 locking steps per full turn corresponds to a 0.25 mm change in depth. Turning clockwise increases depth, while counter-clockwise decreases it.
Maintenance and Cleaning
Always keep the machine and ventilation slots clean for safe operation. Before any maintenance or transport, remove the battery pack. If the battery is no longer functional, contact an authorized Bosch service center.
Safety
Use only original Bosch lithium-ion batteries. Protect the battery from heat, fire, water, and moisture. Do not open the battery pack. When working, wear appropriate personal protective equipment, including eye protection.
Manufacturer information
Bosch
Practical help
Common problems
Tool does not rotate
Check if the battery is empty or if the rotational direction switch is in the center (locked) position.
Battery overheated or overloaded
The tool will automatically reduce speed if the battery temperature exceeds 70 °C. Allow the tool to cool down.
Screw-in depth is incorrect
Adjust the depth using the adjustment sleeve. Test on a scrap piece of material to verify the setting.
Before use
- Ensure the battery is fully charged.
- Check that the correct screwdriver bit is securely inserted.
- Set the rotational direction switch to the desired position.
- Verify the screw-in depth setting.
Specs in practice
- Rated voltage
- 18 V, requires compatible Bosch 18V Li-Ion batteries.
- No-load speed
- 0 – 4200 min-1, variable speed controlled by the trigger.
Images and diagrams

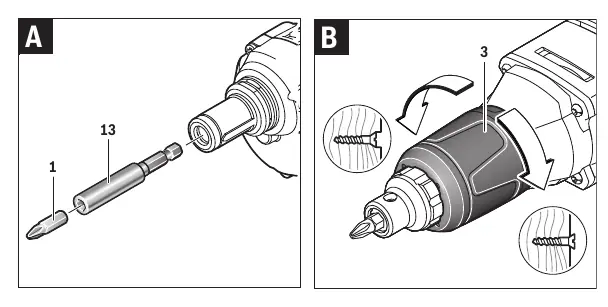

- Figure A: Shows the process of removing the depth stop and changing the screwdriver bit.
- Figure B: Illustrates how to adjust the screw-in depth using the adjustment sleeve.
Model compatibility
- Compatible with Bosch 18V Li-Ion battery packs.
- Use only chargers specified by Bosch for these batteries.
