Instruction Manual for Bright Starts 11803-MEES Comfort 2 Go Portable Swing
Quick guide for the Bright Starts 11803-MEES Comfort 2 Go Portable Swing, covering assembly, battery installation, safety warnings, and operation of the swing control module.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides essential instructions for the assembly, safe operation, and maintenance of the Bright Starts Comfort 2 Go Portable Swing. Always read the full manual before use. Key safety requirements include using the restraint system at all times, stopping use when the infant attempts to climb out (approx. 9 months), and never using the product on elevated surfaces or soft surfaces like beds or sofas.
Safety and Warnings
- Fall and Strangulation Hazard: Always use the restraint system and adjust it to fit snugly. Never leave the child unattended.
- Suffocation Hazard: Keep the seat fully reclined until the infant is at least 4 months old and can hold their head up without help. Never use on soft surfaces.
- Weight Limits: Do not use if the child weighs less than 3 kg (6 lbs) or more than 9 kg (20 lbs).
- General Safety: Never move or lift the product with the baby inside. Never use the toy bar as a handle.
Assembly
The swing requires adult assembly. Follow the numbered steps in the manual to connect the swing frame assemblies, attach the foot assemblies, and secure the seat pad and toy bar. Ensure all parts are securely locked before placing a child in the swing.
Battery Installation
The swing control module requires (4) size C/LR14 (1.5V) alkaline batteries (not included). Use a screwdriver to open the battery compartment. Ensure correct polarity as marked. Replace the entire set of batteries at once and do not mix old and new or different types of batteries.
Operation
Use the control module to manage swing settings:
- Power: Press the power switch to turn the swing on.
- Speed: Use the +/- buttons to select from 6 speed settings. Gently push the seat to start the motion.
- Timer: Select 30, 45, or 60 minutes for automatic shutoff. If no time is selected, the default is 90 minutes.
- Sound: Use the volume control switch to adjust or turn off music.
Care and Cleaning
- Seat pad and Headrest: Remove from frame, fasten all buckles and hook-and-loop patches. Machine wash on gentle cycle with cold water. No bleach. Tumble dry on low heat (seat pad) or air dry flat (headrest).
- Frame and Toy bar: Wipe clean with a damp cloth and mild soap. Do not immerse in water.
Manufacturer information
Bright Starts
Practical help
Common problems
Swing not working or erratic operation (distorted sound, dim lights, slow motor)
Replace all four batteries with a fresh set of alkaline C/LR14 batteries.
Baby's head falling forward
Ensure the seat is in the fully reclined position until the infant is at least 4 months old and can hold their head up.
Before use
- Check that all parts are present and not damaged.
- Ensure the swing is placed on a flat, level floor.
- Verify that the restraint system is properly adjusted to the child.
- Confirm the seat is reclined correctly for the child's age.
- Ensure batteries are installed with correct polarity.
Specs in practice
- Battery Type
- Requires (4) size C/LR14 (1.5V) alkaline batteries.
- Weight Capacity
- Minimum 3 kg (6 lbs) to maximum 9 kg (20 lbs).
Images and diagrams
- Page 15 shows the parts list and battery requirements.

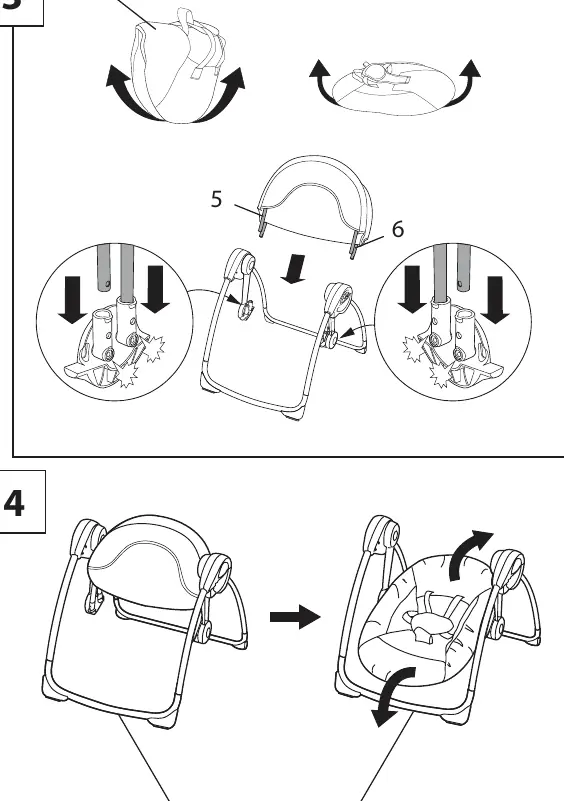

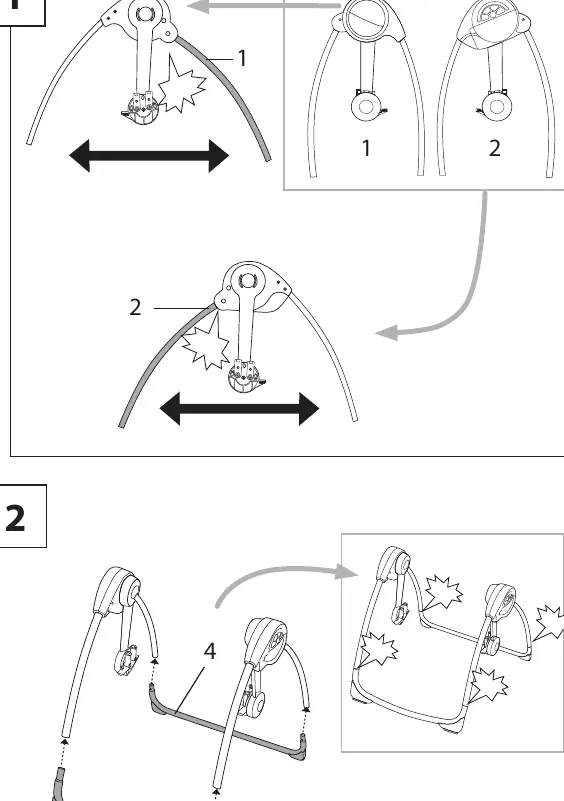

- Pages 16-18 detail the step-by-step frame and seat assembly.
- Page 20-21 illustrates how to secure the child using the seat restraint.

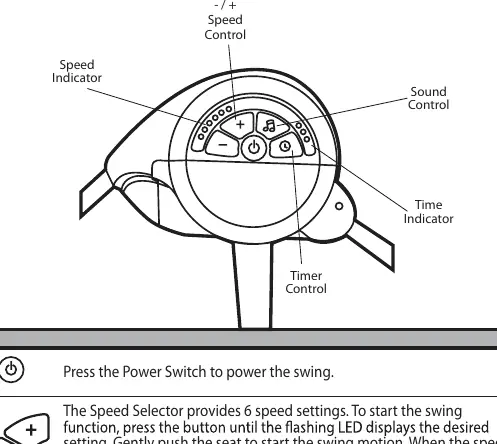

- Page 24 explains the control module buttons for speed, timer, and sound.
Model compatibility
- Do not use on elevated surfaces like tables.
- Do not use on soft surfaces like beds, sofas, or cushions.
- Not a substitute for a cot or crib; remove baby if they fall asleep.
