Bright Starts 12825-WSC Minnie Mouse Tiny Trek Walker User Manual

Quick guide for the Bright Starts 12825-WSC Minnie Mouse Tiny Trek Walker. Includes assembly instructions, safety warnings, battery installation, and maintenance tips.

Table of contents

Manual images

Jump to the section

Quick guide from the manual

This document provides essential assembly, safety, and maintenance instructions for the Bright Starts 12825-WSC Minnie Mouse Tiny Trek Walker. Always ensure the product is assembled by an adult and checked frequently for damaged or loose parts.

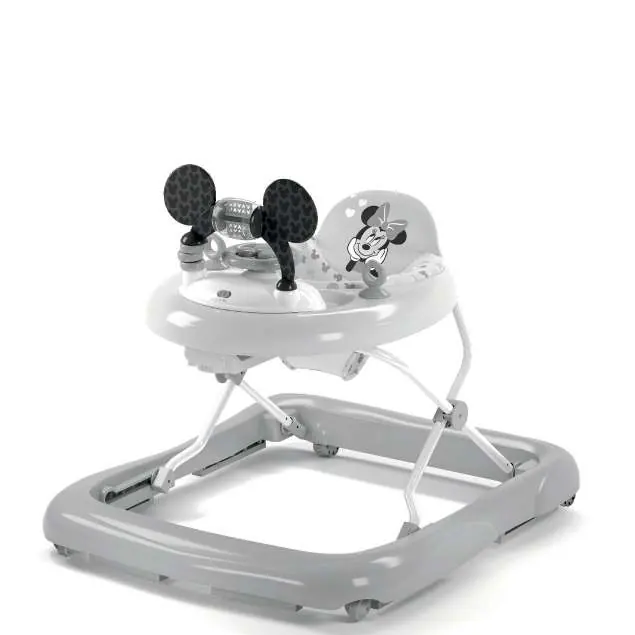

Minnie Mouse Tiny Trek Walker
Minnie Mouse Tiny Trek Walker

Safety Warnings

  • Child Requirements: Use only if the child can sit up by themselves (approx. 6 months), cannot walk by themselves, and weighs less than 12 kg (26 lbs).
  • Supervision: Never leave the child unattended. Keep the child in view at all times.
  • Environment: Use only on flat surfaces. Block stairs and steps securely. Keep away from hot liquids, electrical cables, and other hazards.
  • Usage: For indoor use only. Limit use to short periods (e.g., 20 minutes).

Assembly

The walker requires adult assembly. Follow the numbered steps in the manual to attach the frame, seat pad, and toy station. Ensure all parts are securely locked into place before use.

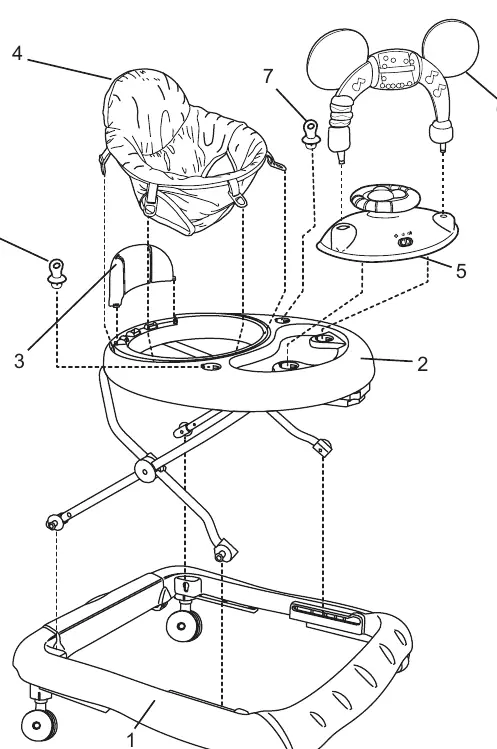

Exploded view of components
Exploded view of components

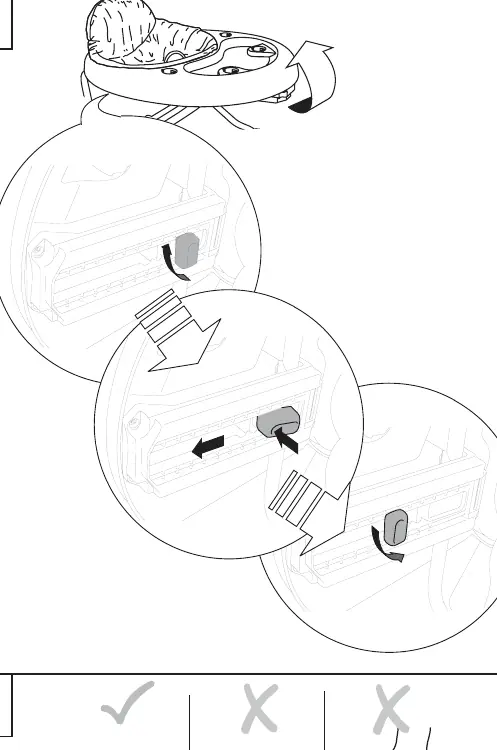

Adjusting seat height
Adjusting seat height

Battery Information

The music unit requires (3) AA/LR6 (1.5V) alkaline batteries (not included). Ensure correct polarity when installing. Replace batteries if functions fail or sound becomes distorted. Do not mix old and new batteries or different types.

Care and Cleaning

  • Seat Pad: Remove from frame. Machine wash with cold water, gentle cycle. No bleach. Tumble dry, low heat.
  • Plastic Parts: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
  • Frame: Wipe the metal frame with a soft, clean cloth and mild soap.

Manufacturer information

Bright Starts

Brand profile

Practical help

Common problems

Erratic product operation or distorted sound

Replace all three batteries with fresh alkaline batteries.

Walker tipping over

Ensure the walker is used only on flat surfaces free of objects that could cause it to tip.

Before use

  • Verify the child can sit up unassisted.
  • Ensure the child weighs less than 12 kg (26 lbs).
  • Check that all parts are present and not damaged.
  • Block all stairs and steps securely.
  • Ensure the seat pad is properly attached.
  • Install fresh batteries if using the music station.

Specs in practice

Battery Type
(3) AA/LR6 (1.5V) alkaline batteries required.
Weight Limit
Maximum 12 kg (26 lbs).
Usage Duration
Recommended for short periods, e.g., 20 minutes.

Images and diagrams

  • Page 15: Exploded view showing all components and their assembly order.
  • Page 16-22: Step-by-step visual guide for frame assembly, seat attachment, and toy station installation.
  • Page 23: Instructions for adjusting the seat height.
  • Page 24: Toy operation and volume settings.

Model compatibility

  • For indoor use only.
  • Do not use accessories or replacement parts not approved by the manufacturer.
