User Manual for Bright Starts 11619-W Playful Parade Door Jumper
Quick guide for the Bright Starts 11619-W Playful Parade Door Jumper, including safety warnings, assembly instructions, height adjustment, and maintenance tips.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Bright Starts Playful Parade Door Jumper is designed for infants who can sit up unassisted (approx. 6 months) and weigh less than 26 lbs (12 kg). It must be used only on recommended interior door frames with specific wall and trim dimensions. The product is not a swing and should only be used for short periods (20-minute intervals). Never leave the child unattended.
Safety Warnings
- Weight Limit: Maximum 26 lbs (12 kg).
- Developmental Stage: Child must be able to sit up unassisted.
- Door Frame Requirements: Wall thickness must be between 4-5 inches (10.2-12.7 cm) with a trim thickness of at least 0.5 inches (13 mm). Do not secure to the door trim.
- Strangulation Hazard: Do not place items with strings around the child's neck. Do not attach extra strings or straps to the product.
- Supervision: Always keep the child in view. Ensure the door cannot close on the jumper.
Assembly and Mounting
Adult assembly is required. Ensure all parts are present and undamaged before use.
Mounting the Door Jumper
- Secure the clamp assembly firmly to the center of the door frame.
- Verify the clamp is properly seated on the wall and trim before each use.
- Ensure the door cannot close on the jumper.
Adjusting the Seat Height
Adjust the height so that the child's toes touch the floor, but the child is not standing flat-footed. Use the adjustment mechanism on the strap to change the seat height as the child grows.
Care and Cleaning
- Fabric Seat: Remove the seat and frame halves. Machine wash in cold water on a gentle cycle. Do not bleach. Tumble dry on low heat.
- Plastic Parts: Wipe clean with a damp cloth and mild soap. Air dry. Do not immerse in water.
Manufacturer information
Bright Starts
Practical help
Common problems
Child is too tall or too short for the jumper.
Adjust the seat height using the strap mechanism so that only the child's toes touch the floor.
Clamp does not fit the door frame.
Verify the wall thickness is 4-5 inches (10.2-12.7 cm) and trim thickness is at least 0.5 inches (13 mm). Do not use if the frame does not meet these requirements.
Before use
- Check that the child can sit up unassisted.
- Verify the child weighs less than 26 lbs (12 kg).
- Ensure the door frame meets the required wall and trim thickness.
- Confirm the clamp is secured in the center of the door frame.
- Check for any damaged, missing, or loose parts.
Specs in practice
- Weight Limit
- Maximum 12 kg (26 lbs) to prevent structural failure.
- Wall Thickness
- Must be 10.2-12.7 cm for the clamp to grip safely.
- Trim Thickness
- Must be at least 13 mm to provide a secure anchor point.
Images and diagrams
- Page 8: Parts list showing frame halves, fabric seat, and clamp assembly.
- Page 9: Diagram showing required wall and trim dimensions for safe mounting.

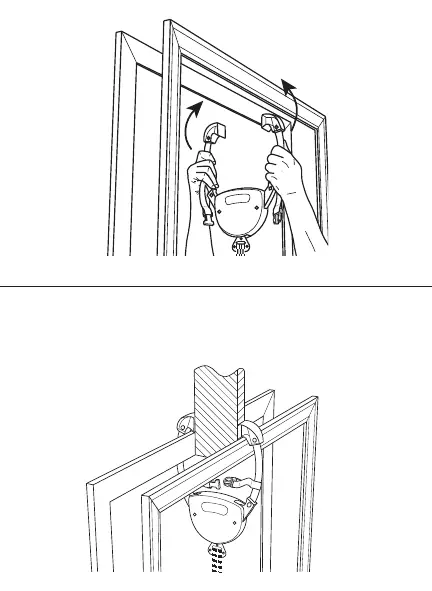

- Page 13: Illustration of how to mount the clamp to the door frame.
- Page 16: Visual guide for correct seat height (toes touching floor).
Model compatibility
- Only for use on interior door frames meeting specific thickness requirements.
- Not compatible with door frames lacking sufficient trim or wall thickness.
