CAT CT1CYR 11-Drawer Rolling Cabinet Owner's Manual
Comprehensive owner's manual for the CAT CT1CYR 11-drawer rolling cabinet, covering assembly, drawer removal and installation, and maintenance.
Table of contents
Manual images
Jump to the sectionProduct Overview
The CAT CT1CYR is a heavy-duty 11-drawer rolling cabinet designed for professional storage. The unit features a locking mechanism operated by a key-based cam lock. It is equipped with two fixed casters and two swivel casters for mobility.
Assembly
The cabinet requires basic assembly of the side handle and casters. The side handle should be attached using the provided screws. When installing the casters, ensure that the two swivel casters are mounted on the same side of the cabinet for proper maneuverability.
Drawer Operation
The drawers are equipped with slide mechanisms that include black retaining clips. To remove a drawer, simultaneously push the lever up on the left side and down on the right side, then slide the drawer out. To install a drawer, pull the slide out and align the track before pushing the drawer back in. It is normal to feel some resistance when first pushing the drawer in; cycle the drawer in and out 2-3 times to ensure smooth operation. If the drawer feels blocked, remove and re-install it.
Maintenance
To ensure the longevity and smooth operation of the drawer slides, it is essential to lubricate them periodically with light grease. This maintenance should be performed at least twice a year, or more frequently depending on the intensity of use. Always ensure all drawers are fully closed before engaging the locking mechanism.
Manufacturer information
Caterpillar Inc.
Practical help
Common problems
Drawer feels blocked or does not slide smoothly after installation.
Remove the drawer completely and re-install it, ensuring the tracks are properly aligned. Cycle the drawer in and out 2-3 times to re-engage the slides.
Before use
- Ensure all 12 drawer liners are in place.
- Verify that the side handle is securely attached with the included screws.
- Confirm that the two swivel casters are installed on the same side.
- Check that all drawers are fully closed before attempting to lock the cabinet.
Specs in practice
- Locking Mechanism
- Cam lock system requiring a key; drawers must be fully closed to engage.
Images and diagrams

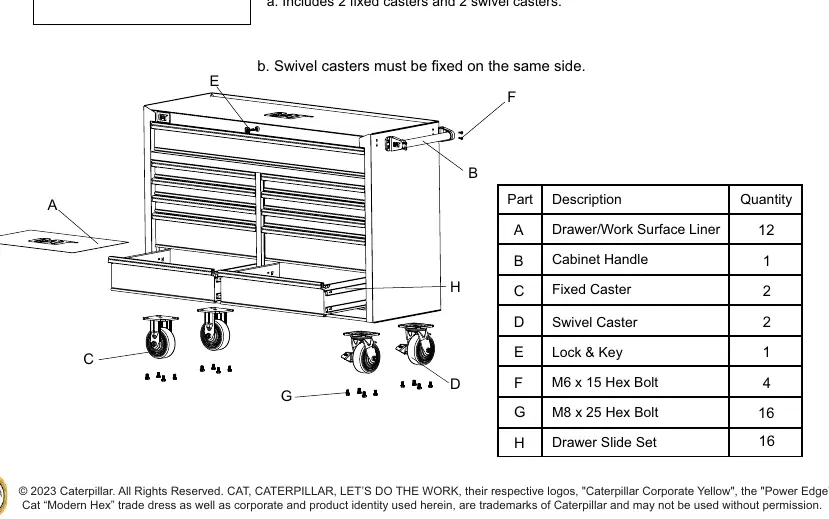

- The assembly diagram identifies parts A through H, including the quantity of bolts and the placement of casters.

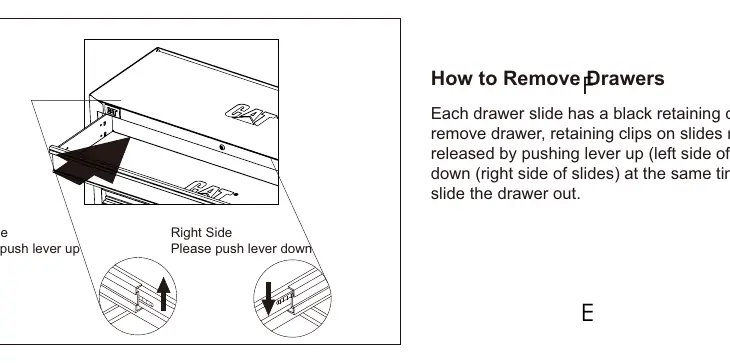

- The drawer removal diagram illustrates the specific direction to push the levers (up for left, down for right) to release the retaining clips.
Manual page author
Emily Carter
User documentation editor
Prepares concise manual descriptions and highlights the most useful setup, operation, and maintenance information for readers.
