Assembly Guide for The Home Depot ACOX9536 Outdoor Storage Cabinet
A comprehensive assembly guide for The Home Depot ACOX9536 outdoor storage cabinet, including step-by-step installation instructions, safety precautions, and weight capacity limits.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides assembly instructions for the ACOX9536 outdoor storage cabinet. Before starting, ensure all parts are present and undamaged. Do not fully tighten bolts until the entire unit is assembled. The cabinet is intended for domestic use only.
Safety and usage warnings
- Wear work gloves during assembly as some parts have sharp metal edges.
- Do not stand on the lid.
- Do not store hot items (e.g., recently used grills or blowtorches) inside the cabinet.
- The unit is not designed for carrying items.
- Prevent suffocation risks by ensuring children do not play inside the cabinet.
- Follow manufacturer instructions if using power tools and wear safety goggles.
Assembly instructions

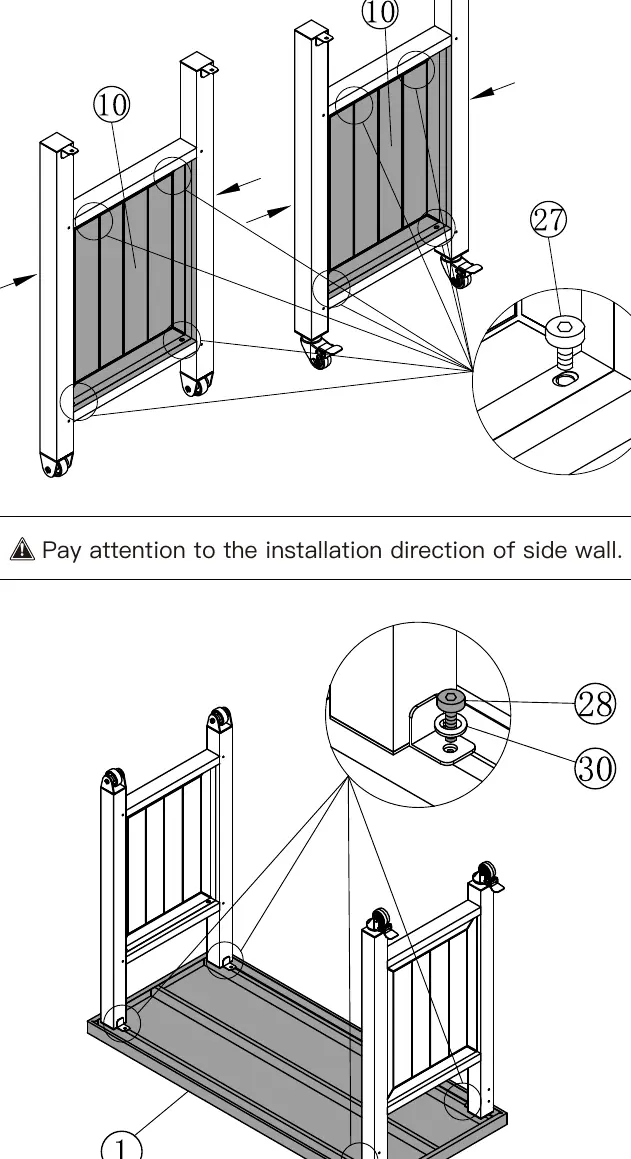

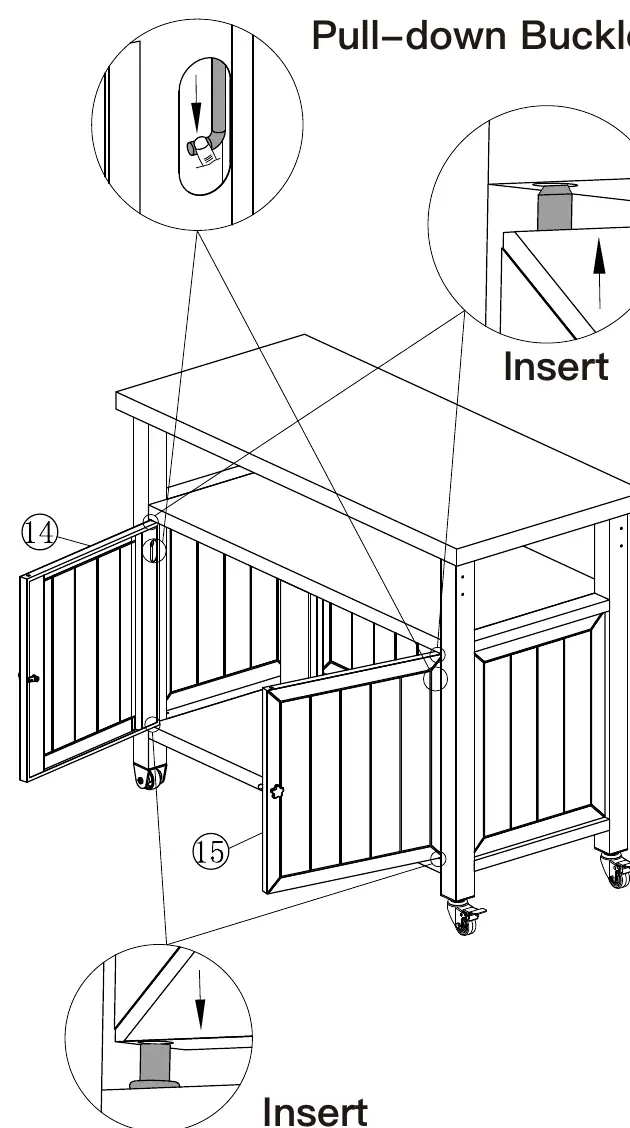

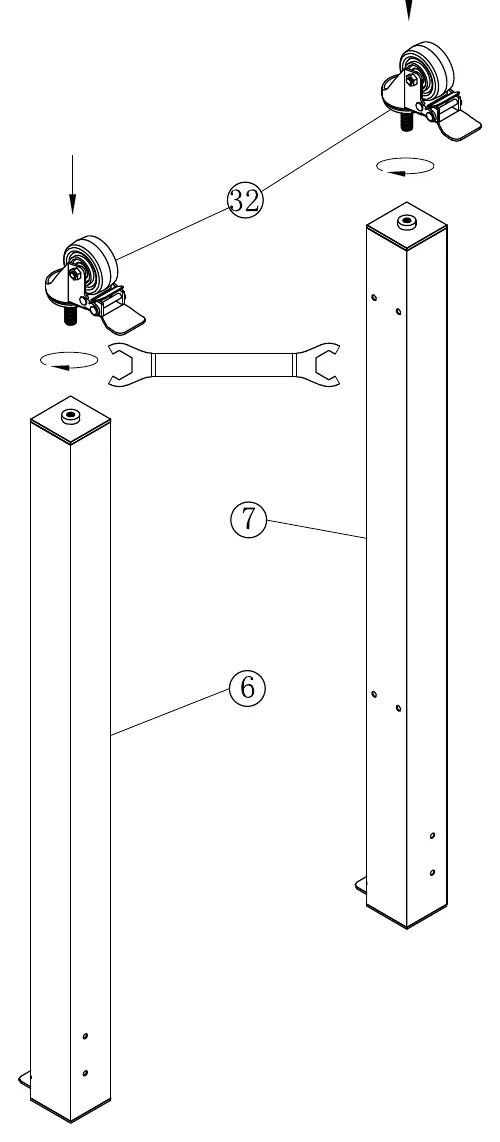

The assembly process involves 14 main steps, starting with attaching the wheels to the base legs. Follow the numbered diagrams carefully, paying close attention to the installation direction of side walls, baffles, and back panels. Use the provided tools (M6 wrench and M10 wrench) to secure components with the specified M6x12, M6x18, and M6x32 bolts.
Weight capacity
- Top surface: 68 kg (150 lb)
- Internal shelf: 5 kg (12 lb)
- Bottom base: 45 kg (100 lb)
Customer support
If you encounter missing or damaged parts, do not return the product directly to the store. Contact customer service via the email address provided on the product packaging or the company website for assistance.
Manufacturer information
The Home Depot
Practical help
Common problems
Missing or damaged parts
Do not return the product to the store. Contact customer service via email or the official website.
Difficulty with alignment during assembly
Ensure bolts are not fully tightened until the entire structure is assembled to allow for minor adjustments.
Before use
- Check all parts and components against the inventory list.
- Inspect all parts for damage.
- Wear work gloves to protect against metal edges.
- Ensure you have a clear, flat workspace.
- Verify you have the necessary tools (included wrenches).
Specs in practice
- Max Top Load
- 68 kg (150 lb) limit for the top surface.
- Max Internal Shelf Load
- 5 kg (12 lb) limit for the internal shelf.
- Max Bottom Load
- 45 kg (100 lb) limit for the bottom base.
Images and diagrams
- Numbered parts correspond to the hardware and panel list.
- Pay close attention to the orientation arrows for side walls and baffles.
- The 'Turn Around' instruction indicates when to rotate the unit for easier access to mounting points.
Model compatibility
- For domestic use only.
