User Manual for Cecotec Bolero Squad G 1200S Gas Hob

Quick guide from the manual

This manual provides essential information for the safe installation and operation of the Cecotec Bolero Squad G 1200S gas hob. Always ensure the appliance is installed by a qualified professional. The hob is designed for domestic use only. Ensure the room is well-ventilated during operation to prevent the accumulation of combustion gases.

Safety instructions

• Supervision: Children under 8 years old must be kept away unless supervised.
• Fire Hazard: Never leave cooking unattended, especially when using oil or grease. Do not place objects on the cooking surface.
• Ventilation: Ensure the room is well-ventilated. Use natural ventilation or a mechanical extractor hood.
• Gas Safety: If you smell gas, turn off the supply and contact a technician. Never use water to extinguish a grease fire; use a lid or fire blanket.
• Maintenance: Do not modify the appliance. Repairs must be performed by qualified professionals.

Installation

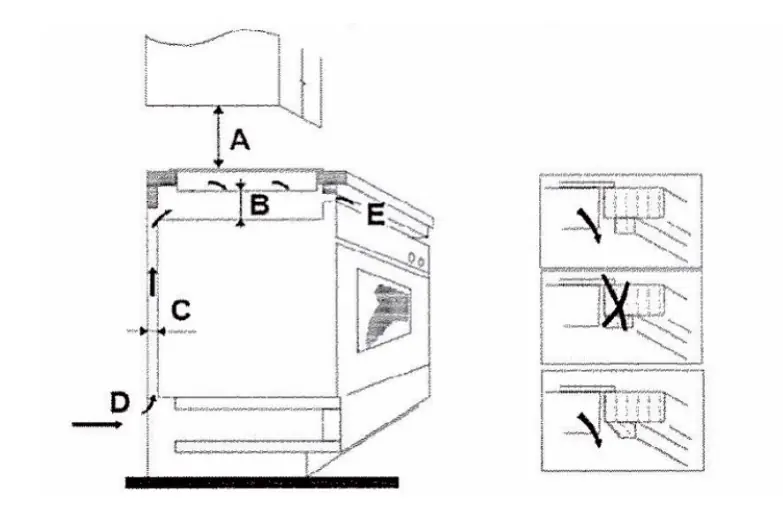

The installation must be carried out by a qualified technician. Ensure the gas and electricity supply are shut off before starting. Maintain minimum clearances from combustible surfaces as specified in the manual. Ensure the worktop is solid and level. Use the provided sealing gasket before installing the hob into the worktop.

Operation

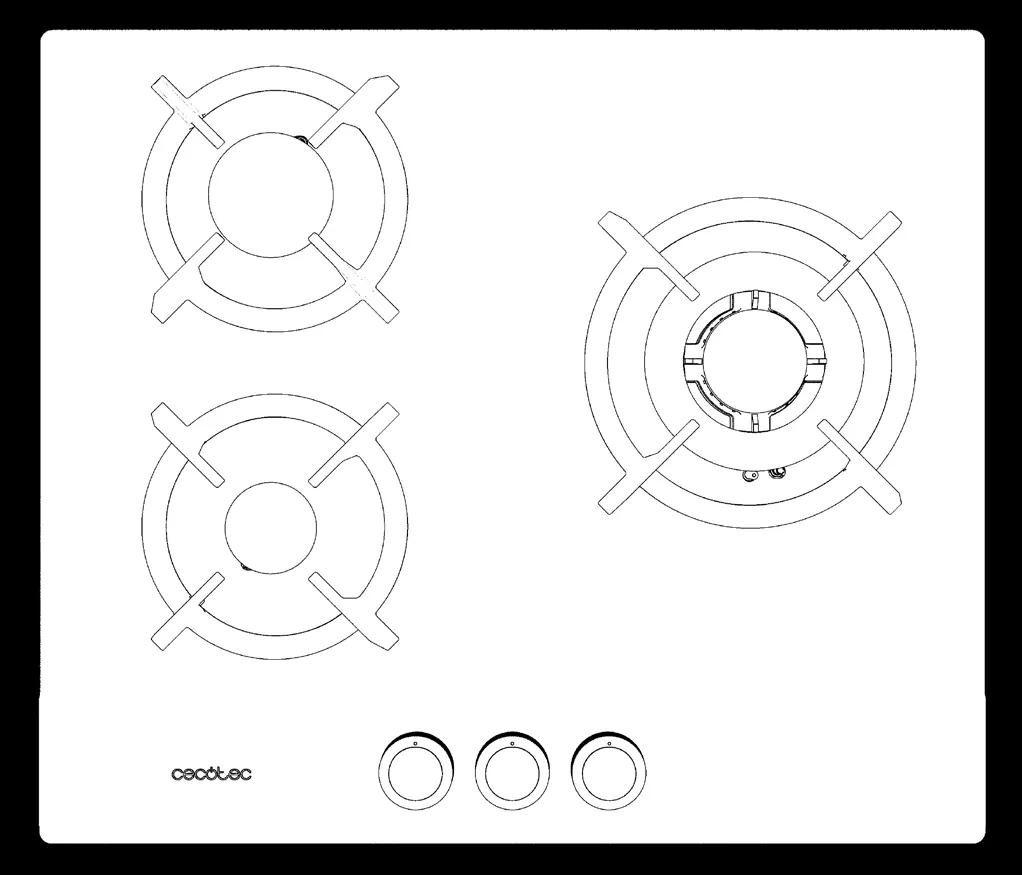

To ignite a burner, press the control knob, turn it to the left while holding it down, and keep it pressed for approximately 3-4 seconds to activate the safety system (thermocouple). If the flame does not ignite after 15 seconds, turn off the burner, open a window, and wait at least one minute before trying again.

Cleaning and maintenance

Clean the burner and its cap at least once a month. Use a soft cloth or non-abrasive scouring pad. Do not use metallic scouring pads or acidic cleaners. Ensure all parts are completely dry before reassembling. Do not rinse burners directly with water.

Troubleshooting

If the burner does not ignite, check the gas supply and ensure all parts are correctly positioned. If the flame is irregular, the gas power setting may be incorrect. If the hob makes noise, ensure the burner cap is fitted correctly. For any persistent issues, contact the official Cecotec Technical Support Service.
