Coaster 105071S5 Rectangular Dining Table Assembly Guide
Comprehensive assembly instructions for the Coaster 105071S5 61-inch rectangular black glass dining table, including parts identification, hardware list, and step-by-step setup guide.
Table of contents
Product Overview
The Coaster 105071S5 is a stylish 61-inch rectangular dining table featuring a sleek black glass top and elegant curved legs. Designed for residential use, this table combines modern aesthetics with sturdy construction. Please note that this product is intended for home use only and is not suitable for commercial establishments.
Assembly Preparation
Before beginning the assembly process, ensure you have a clear, flat workspace. Carefully unpack all components from the boxes and organize them by size to verify that all parts are present. The assembly process is estimated to take approximately 10 minutes. Do not attempt to repair or modify any parts that appear broken or defective; instead, contact the retailer immediately for assistance.
Parts and Hardware Identification
The table assembly requires the following components: one glass top, one top frame, and four legs. The hardware pack, located in box B3, includes 12 M10x12 bolts, 12 flat washers, one 8mm Allen wrench, and eight glass rests. Ensure all these items are accounted for before starting the assembly.
Step-by-Step Assembly
Begin by attaching the four legs to the top frame using the provided bolts and flat washers. Use the included 8mm Allen wrench to tighten the bolts securely, ensuring each leg is firmly attached to the frame structure. Once the frame and legs are fully assembled, place the eight glass rests onto the designated spots on the top frame. Finally, carefully lower the glass top onto the frame, ensuring it sits securely on the glass rests. The table is now ready for use.
Safety and Maintenance
To maintain the beauty and longevity of your dining table, clean the glass surface regularly with a soft, non-abrasive cloth and a mild glass cleaner. Avoid using harsh chemicals or abrasive sponges that could scratch the surface. Periodically check the bolts to ensure they remain tight, as normal use may cause them to loosen over time. Always lift the table when moving it rather than dragging it across the floor to prevent damage to the legs or your flooring.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Missing or damaged parts
Do not attempt to repair or modify; contact the store immediately.
Wobbly table
Check that all bolts are tightened securely using the provided Allen wrench.
Before use
- Clear a flat workspace for assembly.
- Unpack all boxes and sort parts by size.
- Verify all hardware is present according to the list.
- Ensure the Allen wrench is available.
- Check for any defects in the glass or frame.
Specs in practice
- Assembly Time
- Estimated 10 minutes for two people.
- Bolts M10*12
- Standard fasteners used to secure the legs to the frame.
- Dimension Tolerance
- Measurements may vary by up to 5%.
Images and diagrams

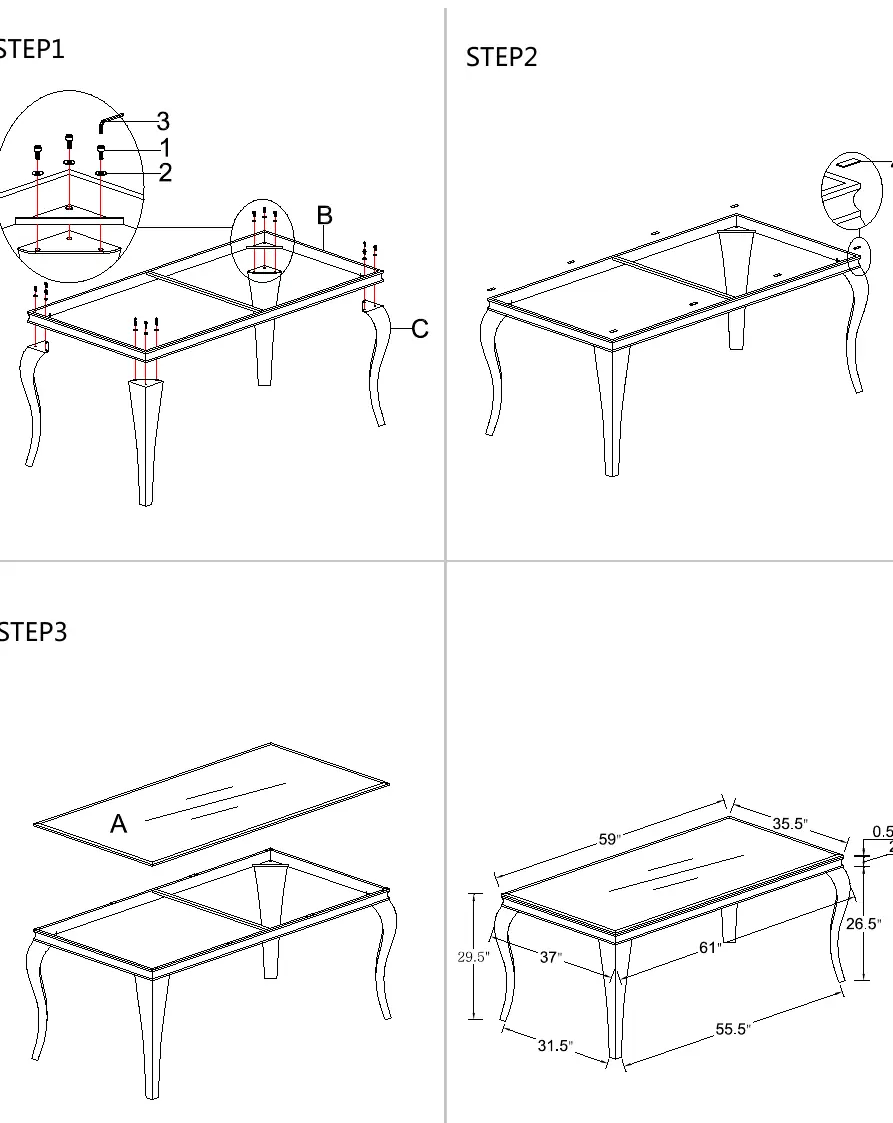

- Step 1 shows the alignment of legs to the frame using bolts and washers.
- Step 2 illustrates the placement of glass rests on the frame.
- Step 3 shows the final placement of the glass top onto the frame.
Model compatibility
- Designed for home use only.
- Not intended for commercial establishments.
