Assembly Instructions for Coaster 105076 Side Chair and 115071 Dining Table

Quick guide from the manual

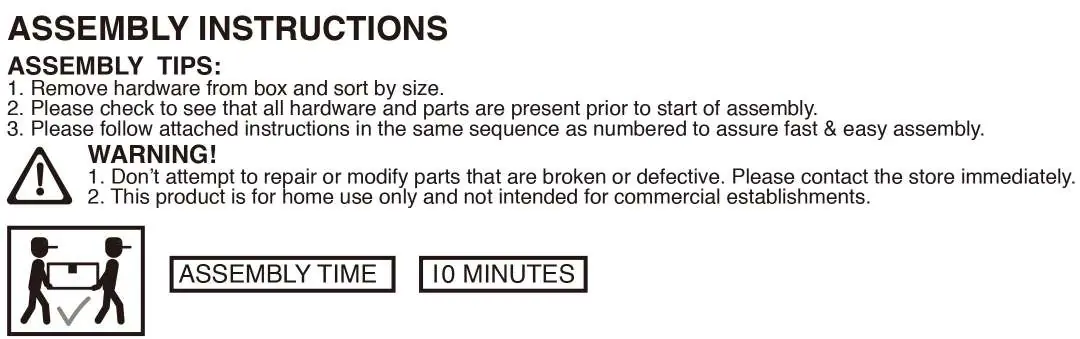

This document provides assembly instructions for two separate products: the 105076 Side Chair and the 115071 Dining Table. Before beginning, ensure all parts and hardware are present. Do not attempt to repair or modify damaged parts; contact the store immediately. These products are intended for home use only.

Assembly of 105076 Side Chair

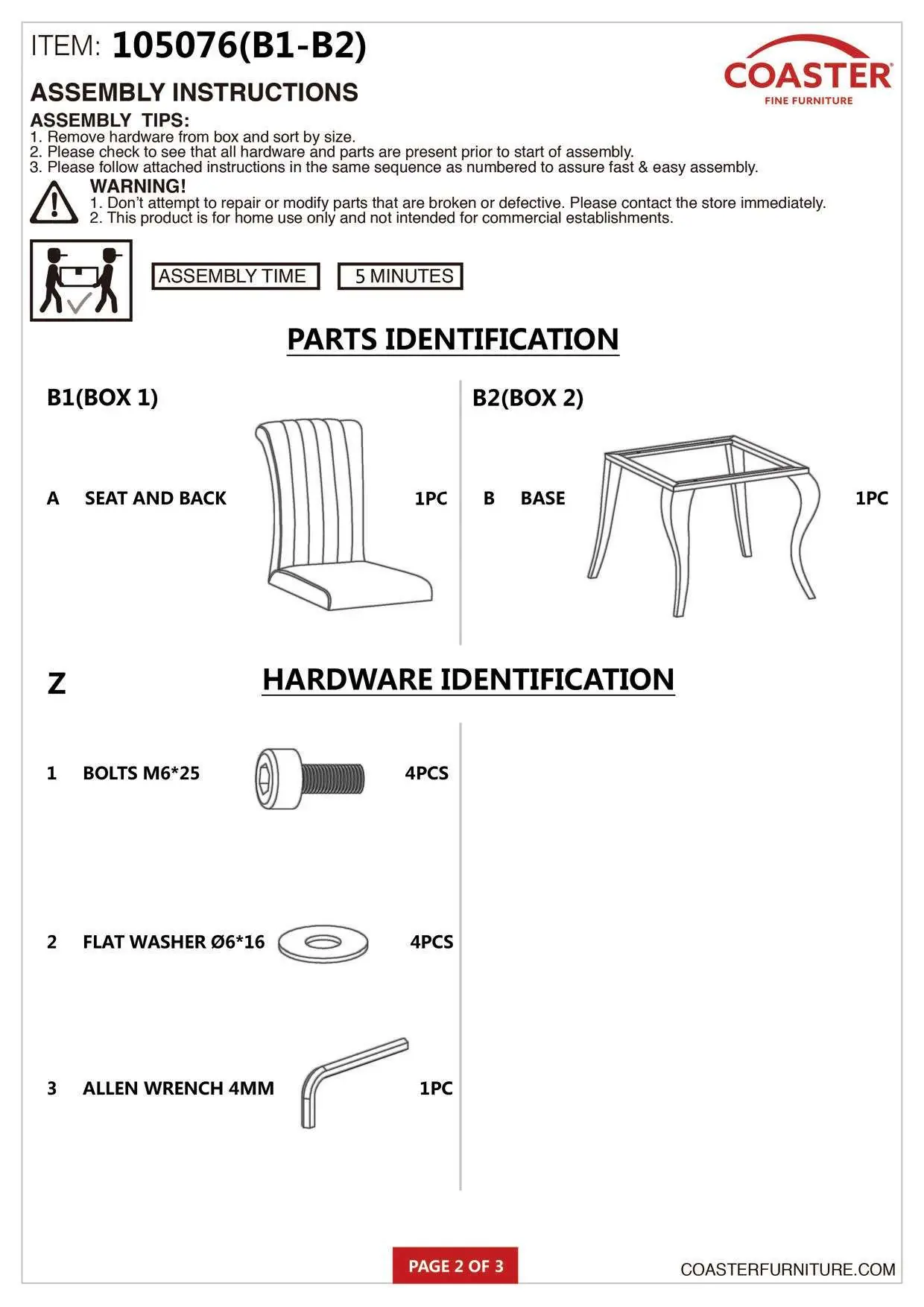

Parts included:

• A: Seat and Back (1pc)
• B: Base (1pc)

Hardware included:

• 1: Bolts M6*25 (4pcs)
• 2: Flat Washer Ø6*16 (4pcs)
• 3: Allen Wrench 4mm (1pc)

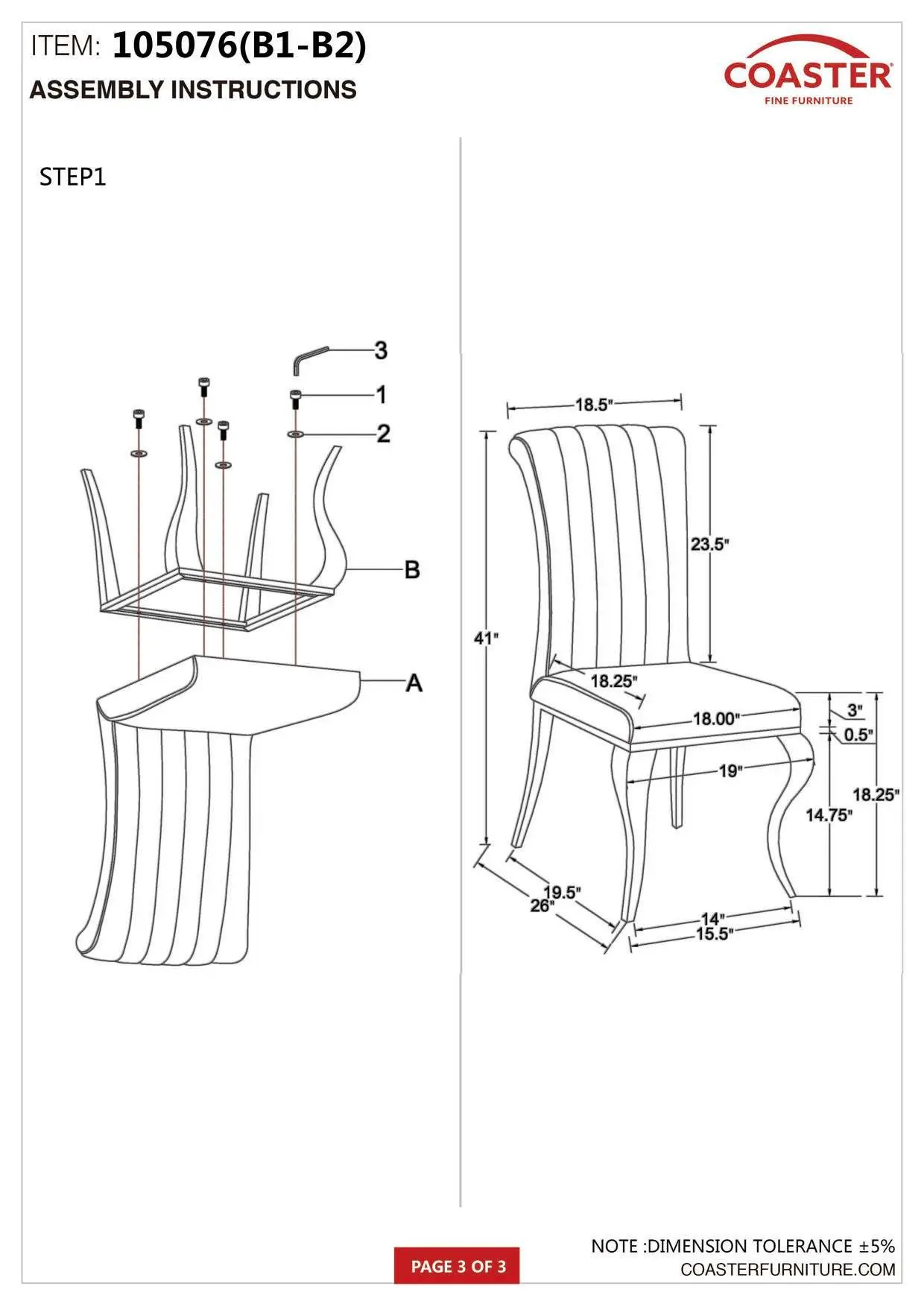

Assembly steps:

1. Place the Seat and Back (A) upside down on a clean, soft surface.
2. Align the Base (B) with the holes on the bottom of the Seat and Back.
3. Secure the base using the Bolts (1) and Flat Washers (2) provided, tightening them with the Allen Wrench (3).

Assembly of 115071 Dining Table

Parts included:

• A: Glass (1pc)
• B: Top Frame (1pc)
• C: Legs (4pcs)

Hardware included:

• 1: Bolts M10*12 (12pcs)
• 2: Flat Washer Ø10*20 (12pcs)
• 3: Allen Wrench 8mm (1pc)
• 4: Glass Rest (8pcs)

Assembly steps:

1. Place the Top Frame (B) upside down on a soft surface.
2. Attach each Leg (C) to the corners of the Top Frame using the Bolts (1) and Flat Washers (2). Tighten with the Allen Wrench (3).
3. Once the frame is assembled, turn it upright.
4. Place the Glass Rests (4) onto the frame, then carefully position the Glass (A) on top.
