User Manual for Consciot 110/160CFM Bath Fan with Bluetooth Speaker

Quick guide from the manual

This manual provides installation and operation instructions for the Consciot 110/160CFM Bath Fan with Bluetooth Speaker, 3CCT, and Night Light. Key requirements include a 120V, 60Hz power supply and a 6-inch duct. The unit is suitable for damp locations but is not for use in cooking areas or with dimmable switches.

Product Specifications

• Airflow: 110/160 CFM (selectable)
• Voltage: 120V, 60Hz
• Sound Output: 1.0 Sones
• Light: Main light 1500lm, Night light 100lm
• Power Consumption: Fan 40W, Light 20W
• Ceiling Opening: 11.39 in. x 10.42 in.

Safety Information

Warning: To reduce the risk of fire, electric shock, or injury:

• Always disconnect power before servicing.
• Installation must be done by a qualified person in accordance with all applicable codes.
• Do not bend or kink power wires.
• Do not install in a ceiling with insulation greater than R50.
• Ensure the fan is installed at least 7 feet (2.1m) above the floor.

Installation

The manual covers three installation scenarios:

• New Construction with Flex Bracket: Involves installing the flex bracket between joists, adjusting fan housing tabs, and securing the housing to the bracket.
• New Construction without Flex Bracket: Involves mounting the housing directly to the joist.
• Existing Construction: Involves removing the old fan, cutting the ceiling hole to size, and installing the new housing through the ceiling.

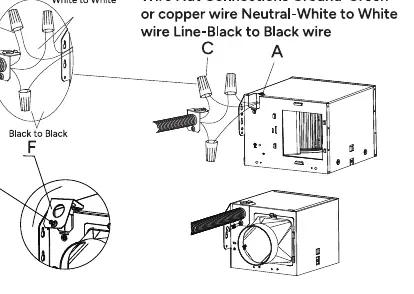

Wiring: Connect the house wires to the fan wires using the provided wire connectors (Ground-Green to Green, Neutral-White to White, Line-Black to Black). Ensure all connections are secure.

Remote Operation

The remote control allows for:

• Power: Fan and light ON/OFF.
• Lighting: Adjust color temperature (3000K, 4000K, 5000K), brightness, and RGB color selection.
• Audio: Bluetooth speaker control (Volume, Play/Pause, Music Sync).

Note: Press and hold the power button for 5 seconds to reset to factory defaults (5000K, 100% brightness).

Care and Maintenance

• Routine maintenance should be performed at least once a year.
• Disconnect power supply before servicing.
• Never use solvents, thinner, or harsh chemicals for cleaning.
• Do not allow water to enter the motor or immerse metal parts in water.

Troubleshooting

If the fan seems louder than expected, check the damper, ensure there are no sharp bends in the duct within 18 inches of the discharge, and verify the fan is securely attached to the joists. If the fan is not clearing the room, ensure the CFM rating matches the room size and that there is sufficient airflow intake (e.g., a slightly open door or window).

Contact Information

Spring Sunshine Technology Co., Limited. Website: www.consciot.com. Email: [email protected]. Phone: 1-866-698-6211 (Mon-Fri 8:00 AM-5:00 PM PT).
