User Manual for 3 Piece Woven Recliner Set 221-8J1-3SS-BCL
Quick guide for the 3 Piece Woven Recliner Set (Model 221-8J1-3SS-BCL). Includes assembly, operation, maintenance, and safety instructions for your outdoor furniture.
Quick answers from the manual
Quick answer
- The 3 Piece Woven Recliner Set is designed for outdoor domestic use. It features a reclining mechanism that requires lubrication every 12 months and should be used on hard, level surfaces to prevent mechanical failure. p. 1, 2
Key actions
- Lubricate the reclining mechanism with silicon at least every 12 months. p. 2
- Clean the frame with mild soap and water; avoid bleach and abrasive cleaners. p. 2
First start
- Level the chair using foot glides and place cushions/pillows. p. 4
Show 2 more answers Show less
Problems and fixes
Recliner mechanism failure
Avoid using on soft surfaces like grass or sand; use on hard surfaces.
p. 2Where to find it in the PDF
- Safety and Maintenance p. 2
- Parts List p. 3
- Operation p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the 3 Piece Woven Recliner Set. The set is intended for outdoor domestic use only and is not suitable for commercial applications. Proper maintenance of the reclining mechanism and fabric is essential for longevity.
Safety Warnings
- Pinch Hazard: Do not place hands inside the recliner at any time to avoid pinching fingers or injury.
- Surface Requirements: Use the recliner on hard surfaces like cement, wooden decks, or tiles. Using the recliner on soft surfaces like grass, leaves, or sand may cause the mechanism to fail.
- Weather Protection: Cover or store the recliners during heavy rain. Store completely during freezing temperatures, as rain, snow, and ice can damage the reclining mechanism.
Parts List
Before assembly, lay out all parts to verify everything is included. Assembly requires two people.
- Recliner (2)
- Wedge table (1)
- Back cushion (2)
- Seat cushion (2)
- Lumbar pillow (2)
Operation

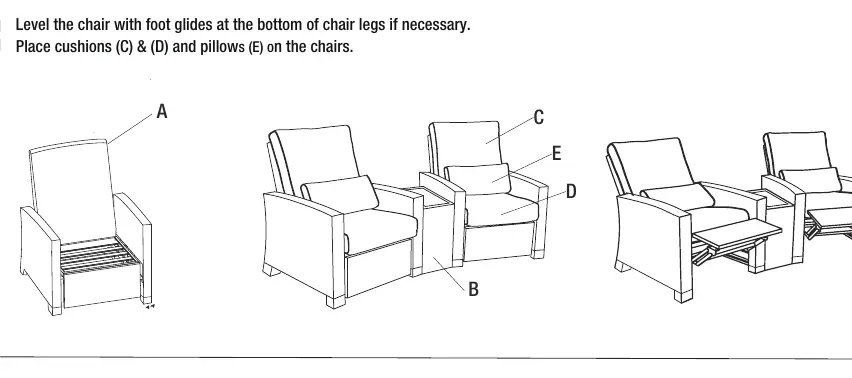

Placing Cushions
Level the chair using the foot glides at the bottom of the legs if necessary. Place the seat cushions, back cushions, and lumbar pillows onto the chairs.
Operating Recliners
The recliner uses the user's center of gravity to hold the second position. When in the first position with the leg rest up, ensure your body weight is in the center of the frame (furthest back against the backrest), then push back to engage the second position. This is particularly important for smaller individuals to ensure the backrest remains stable.
Care and Maintenance
Frame
Clean the frame with mild soap and water. Do not use abrasive materials or products containing bleach. Rinse with clean water and dry thoroughly. Before storing, ensure the frame is clean and dry. Drain any water that may have collected inside the frame tubing to prevent damage during freezing temperatures.
Fabric
Clean Sunbrella fabric regularly. Brush off loose dirt and wash with a mild soap and lukewarm water solution. For stubborn stains or mildew, use a solution of 236 ml (1 cup) of bleach and 59 ml (1/4 cup) of mild soap per 3.8 L (1 gallon) of water. Wear rubber gloves when handling bleach. Rinse thoroughly and allow to air dry. Do not machine wash or tumble dry, as cushions may shrink.
Mechanism Lubrication
You must lubricate the key points of the reclining mechanism with silicon at least every 12 months.
Manufacturer information
Costco Wholesale Corporation
Practical help
Common problems
Reclining mechanism failure
Ensure the chair is placed on a hard surface (cement, wood, tile). Avoid soft surfaces like grass or sand.
Backrest does not hold in position
Ensure body weight is centered in the frame (furthest back against the backrest) to engage the center of gravity.
Water damage to frame
Drain water from the frame tubing before storing in freezing temperatures.
Before use
- Verify all parts are included (2 recliners, 1 wedge table, cushions).
- Use two people for assembly.
- Level the chair using foot glides.
- Place cushions and pillows on the chairs.
Show more Show less
Images and diagrams

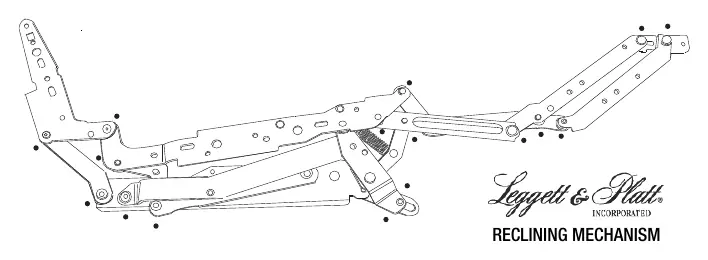

- The reclining mechanism requires lubrication at specific key points (marked with dots) every 12 months.
- The recliner relies on the user's center of gravity to maintain the second reclining position.
Model compatibility
- Intended for outdoor domestic use only.
- Not for commercial use.
