Installation Guide for The Home Depot 2500187 2.5m Garden Cantilever Umbrella
Quick installation guide for The Home Depot 2500187 2.5m Garden Cantilever Umbrella. Includes a complete parts list and step-by-step assembly instructions.
Quick answers from the manual
Quick answer
- This manual provides the parts list and 6-step assembly instructions for the 2.5m Garden Cantilever Umbrella (Model 2500187). p. 1, 2
Key actions
- Assemble the base frame using the provided screws and washers. p. 2
- Attach the umbrella assembly to the pole and secure with the knob. p. 2
First start
- Assemble the base, attach the pole, mount the umbrella, and use the crank handle to open. p. 2
Where to find it in the PDF
- Parts List p. 1
- Assembly Instructions p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly instructions for the 2.5m Garden Cantilever Umbrella (Model 2500187). Before beginning the installation, ensure you have a clear, flat workspace and verify that all parts listed in the manual are present.
Parts List

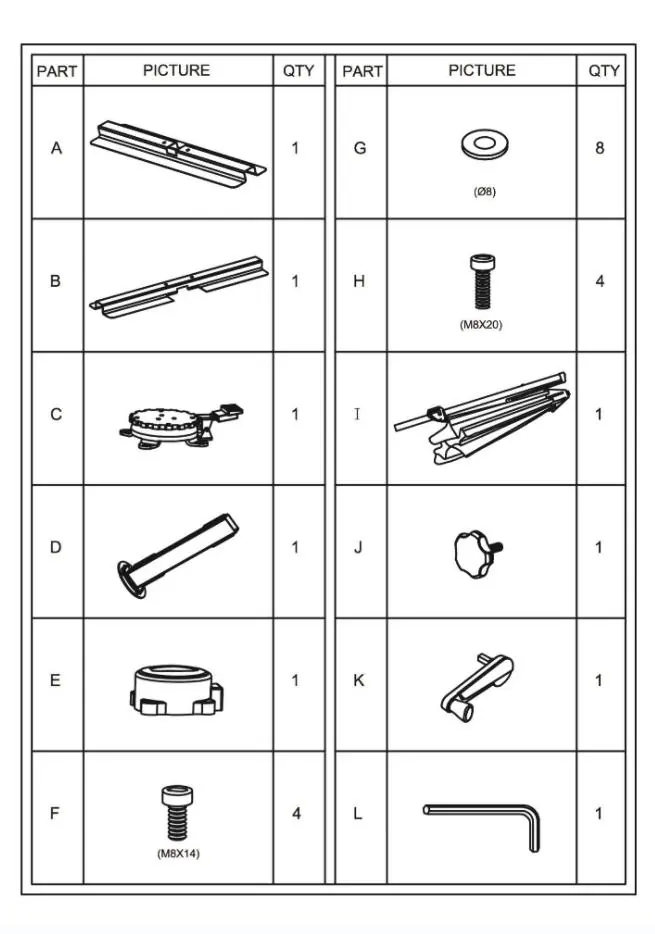

Before starting the assembly, check that you have the following components:
- A: Base frame (1)
- B: Base frame (1)
- C: Base connector (1)
- D: Pole (1)
- E: Cap (1)
- F: M8x14 screw (4)
- G: Ø8 washer (8)
- H: M8x20 screw (4)
- I: Umbrella assembly (1)
- J: Knob (1)
- K: Crank handle (1)
- L: Allen key (1)
Assembly Instructions

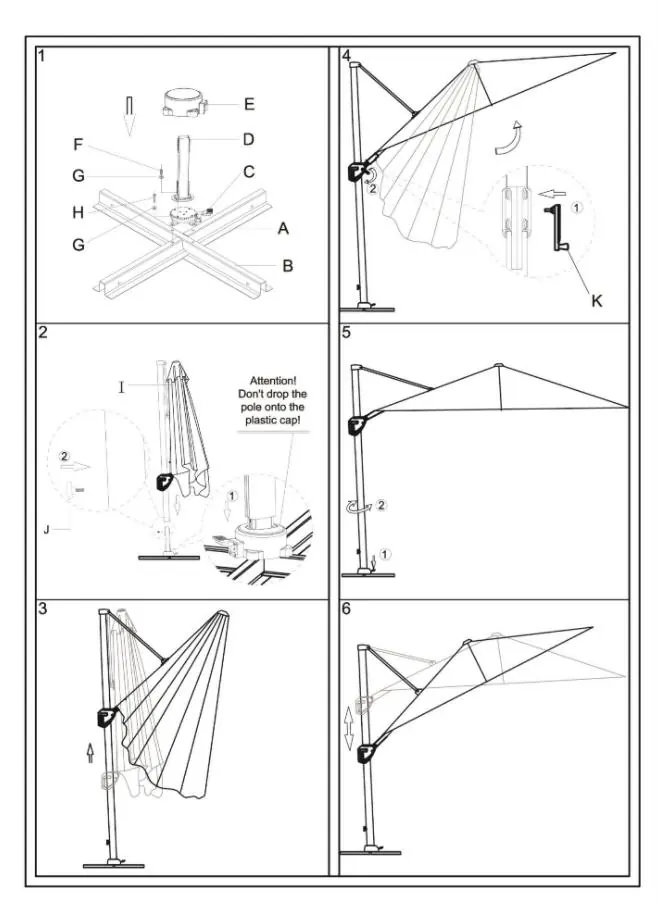

- Base Assembly: Assemble the base frame (A, B) and attach the connector (C) using screws (F, H) and washers (G). Place the pole (D) onto the connector and secure it with the cap (E).
- Umbrella Mounting: Insert the umbrella assembly (I) into the pole. Secure it using the knob (J). Attention: Do not drop the pole onto the plastic cap during this step.
- Raising the Umbrella: Lift the umbrella assembly into the upright position.
- Handle Attachment: Attach the crank handle (K) to the umbrella mechanism.
- Operation: Rotate the handle to open the umbrella.
- Adjustment: Use the mechanism to adjust the height or angle of the umbrella as needed.
Manufacturer information
The Home Depot
Practical help
Common problems
Umbrella does not open
Ensure the crank handle (K) is properly attached and rotated in the correct direction.
Pole feels unstable
Verify that all screws (F, H) are tightened securely to the base frame using the provided Allen key.
Before use
- Verify all parts A through L are present
- Ensure assembly is performed on a flat, stable surface
- Do not drop the pole onto the plastic cap during assembly
- Check that all screws are tightened before use
Images and diagrams
- The manual uses a 6-step visual process to guide assembly.
- Parts are labeled A through L for easy identification in the parts list.
Manual page author
Michael Turner
Technical manual editor
Reviews PDF manuals for structure, safety notes, and practical product details so readers can find the right information quickly.
