User Manual for Craftsman 5 Horsepower 22 Inch Dual Stage 120V Snow Thrower

Quick guide from the manual

This document provides essential instructions for the safe assembly, operation, and maintenance of the Craftsman 5HP 22-inch dual-stage snow thrower (Model 536.884790). Always read the full safety rules before use. Key safety precautions include keeping hands and feet away from rotating parts, never operating indoors (except for starting/transporting), and always disconnecting the spark plug wire before performing any maintenance or adjustments.

Assembly

The snow thrower requires basic tools for assembly, including wrenches (1/2, 9/16, 3/4 inch), pliers, a screwdriver, and a measuring tape. Follow these steps:

• Remove all packing material and roll the unit off the carton.
• Raise the upper handle into the operating position and secure it with the provided hardware.

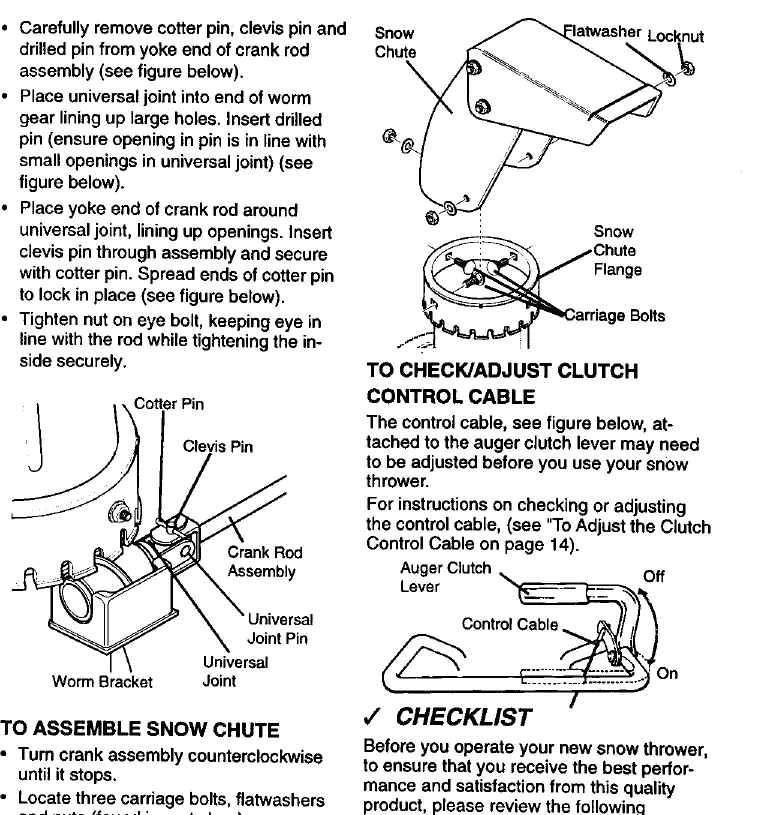

• Install the chute crank assembly by connecting the universal joint to the worm gear and securing it with the clevis pin and cotter pin.
• Attach the snow chute to the flange using the provided carriage bolts, flatwashers, and nuts.
• Check the clutch control cable adjustment before first use.

Operation

Familiarize yourself with the controls: the auger drive lever, crank assembly (for discharge direction), chute deflector (for distance), and the engine controls (primer, choke, throttle, and ignition key). To start the engine using the 120V electric starter: ensure the auger lever is disengaged, set the throttle to Fast, rotate the choke to ON, connect the power cord, prime the engine (based on temperature), and press the starter button. Once running, move the choke to the No Choke position and disconnect the power cord.

Maintenance and Storage

Regular maintenance is crucial for longevity and warranty coverage. Check engine oil levels before each use and change it every 25 hours. Frequently inspect shear bolts and other fasteners for tightness. After each use, clear all snow and debris from the unit to prevent freezing. For long-term storage, drain the fuel system or use a fuel stabilizer, and lubricate all pivot points.

Troubleshooting

If the unit fails to start, check the spark plug and fuel system. If it fails to propel itself, check the auger drive belt and clutch cable adjustment. If the unit fails to discharge snow, check for clogs in the discharge chute or foreign objects in the auger housing.
