Crystorama 135-MK Calypso Ceiling Mount Light Installation Guide
Quick installation and assembly guide for the Crystorama 135-MK Calypso ceiling light. Includes wiring instructions, crystal placement patterns, and technical specifications.
Table of contents
Quick guide from the manual
This document provides assembly and installation instructions for the Crystorama 135-MK Calypso ceiling light. All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. The fixture is damp-rated.
How to install

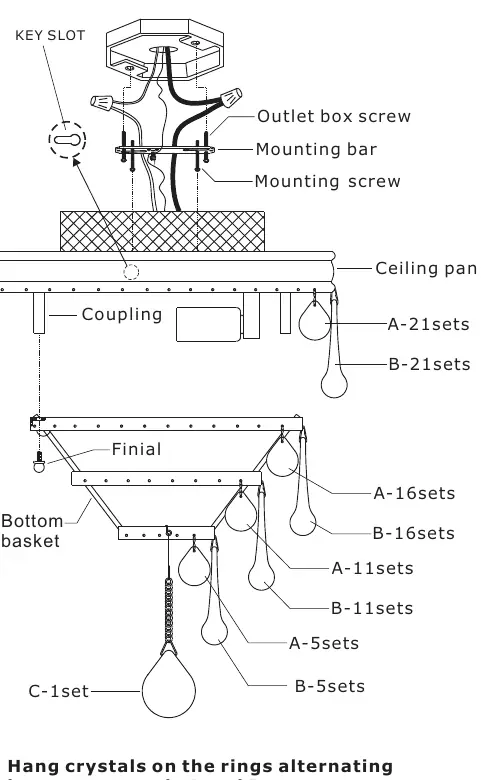

- Thread the mounting screws into the matching holes in the mounting bar. Secure the mounting bar to the outlet box using the provided outlet box screws.
- Connect the fixture wires to the supply wires in the outlet box.
- Raise the ceiling pan, allowing the mounting screws to protrude through the key slots on the pan. Rotate the ceiling pan clockwise until the screws are in the narrow part of the key slots, then tighten with a screwdriver.
- Install three Candelabra base bulbs (not included) into the sockets. 40 Watts recommended, 60 Watts maximum. LED bulbs are recommended for extended use.
- Secure the bottom basket to the ceiling pan using the finials.
- Hang the crystals on the rings of the ceiling pan and bottom basket, alternating between glass drop A and B.
- Hang glass drop C at the bottom of the bottom basket.
Crystal arrangement
The fixture requires a specific alternating pattern for the crystals:
- A: 30mm glass drops (53 sets total)
- B: 76mm glass drops (53 sets total)
- C: 30mm ball with chain (1 set)
Crystals should be hung on the rings alternating between type A and type B.
Technical specifications
- Dimensions: 10-1/2 inches diameter, 9-1/2 inches height.
- Bulb requirements: 3 x Candelabra base bulbs.
- Power: 40W recommended, 60W max per bulb.
- Rating: Damp rated.
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not secure to ceiling
Ensure the mounting screws are fully tightened in the narrow part of the key slots on the ceiling pan.
Bulb compatibility
Use Candelabra base bulbs only; LED bulbs are recommended for extended use.
Before use
- Verify all electrical components are installed by a licensed electrician.
- Ensure the outlet box is compatible with the mounting bar.
- Confirm you have 3 Candelabra base bulbs (not included).
- Check that the installation location is suitable for a damp-rated fixture.
Specs in practice
- Candelabra base
- E12 base size bulbs required for the sockets.
Images and diagrams
- The key slot mechanism allows the ceiling pan to be locked onto the mounting screws by rotating it clockwise.
- The bottom basket is secured to the ceiling pan using finials.
Model compatibility
- Fixture is damp rated.
- Not for use with bulbs exceeding 60 Watts.
