Parts List for Dake 150H-2023 Hand Operated Machine
Official parts list and exploded view diagrams for the Dake 150H-2023 hand-operated machine. This guide provides detailed component breakdowns for the handpump, workhead, general assembly, and table hoist to assist with maintenance and...
Table of contents
Manual images
Click an image to enlargeParts Identification and Ordering Guide
This document serves as the official parts list and exploded view reference for the Dake 150H-2023 hand-operated machine. It is designed to help users identify specific components for maintenance, repair, or replacement. When ordering parts, you must provide the part number, part name, and the machine model number.

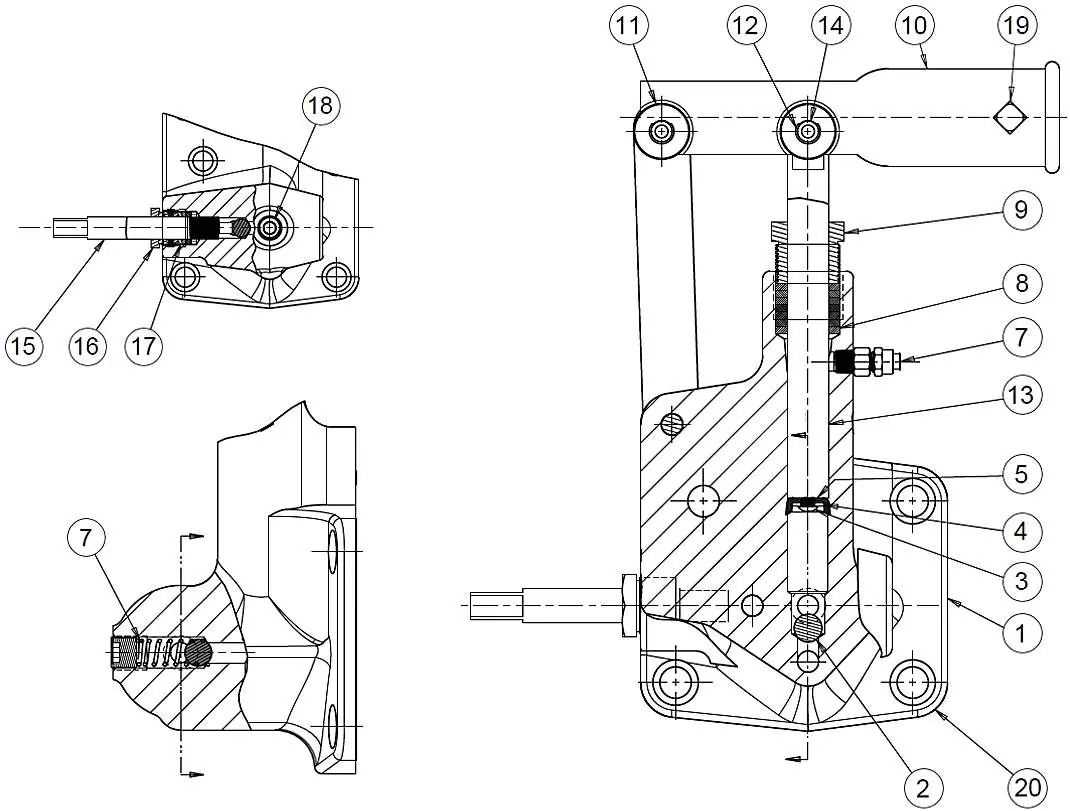

Handpump Assembly
The handpump assembly diagram illustrates the internal components of the pump mechanism. Key parts include the pump body, ball valves, pump plunger, and various packing nuts and seals. Refer to the exploded view to identify the correct item number and corresponding part number for your repair needs.

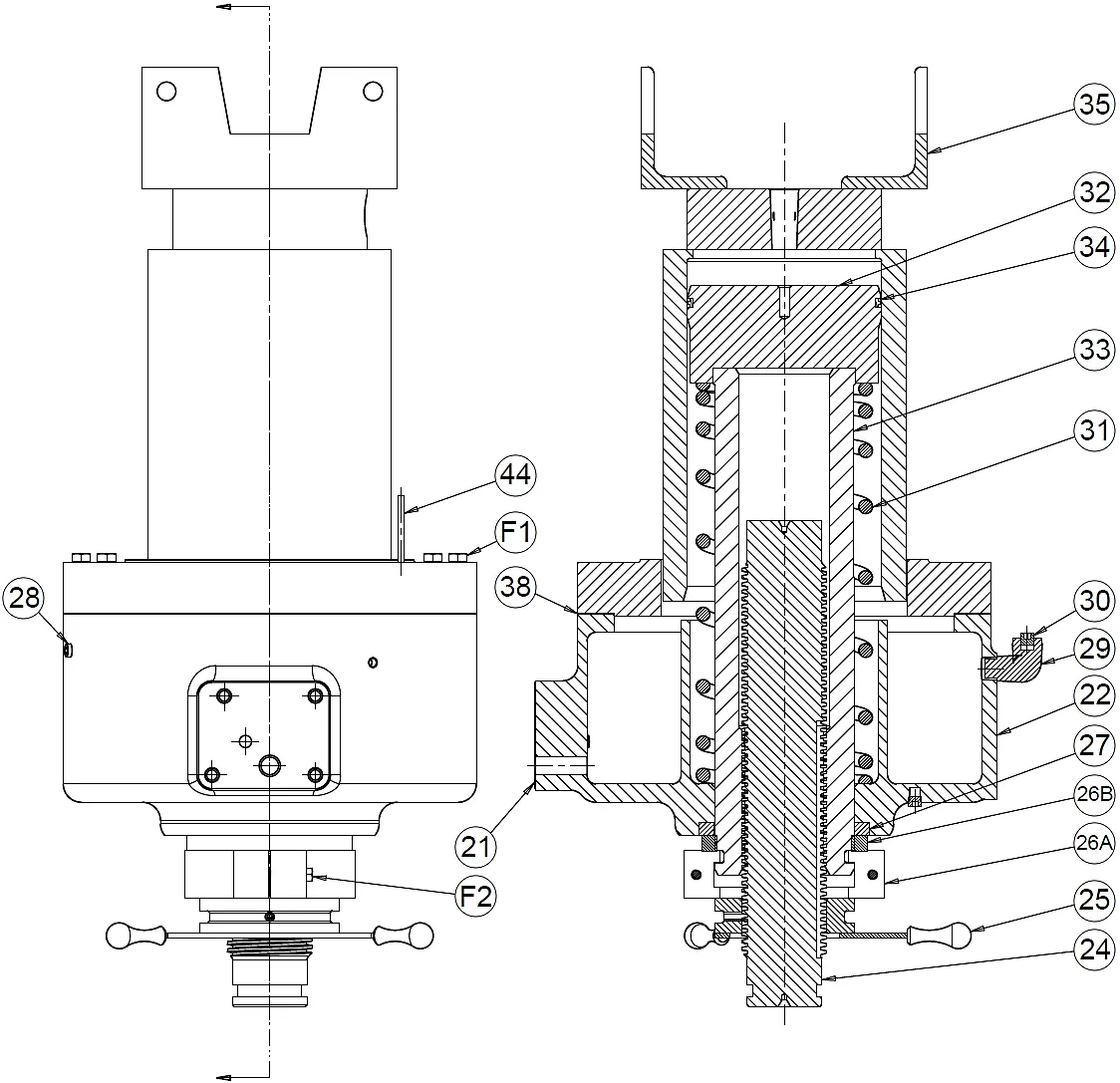

Workhead Assembly
The workhead assembly section details the components of the press head. Note that certain parts, such as the Piston Leather and Piston Assembly, are dependent on the machine's serial number. Ensure you verify your machine's serial number against the specifications listed in the parts table before ordering.

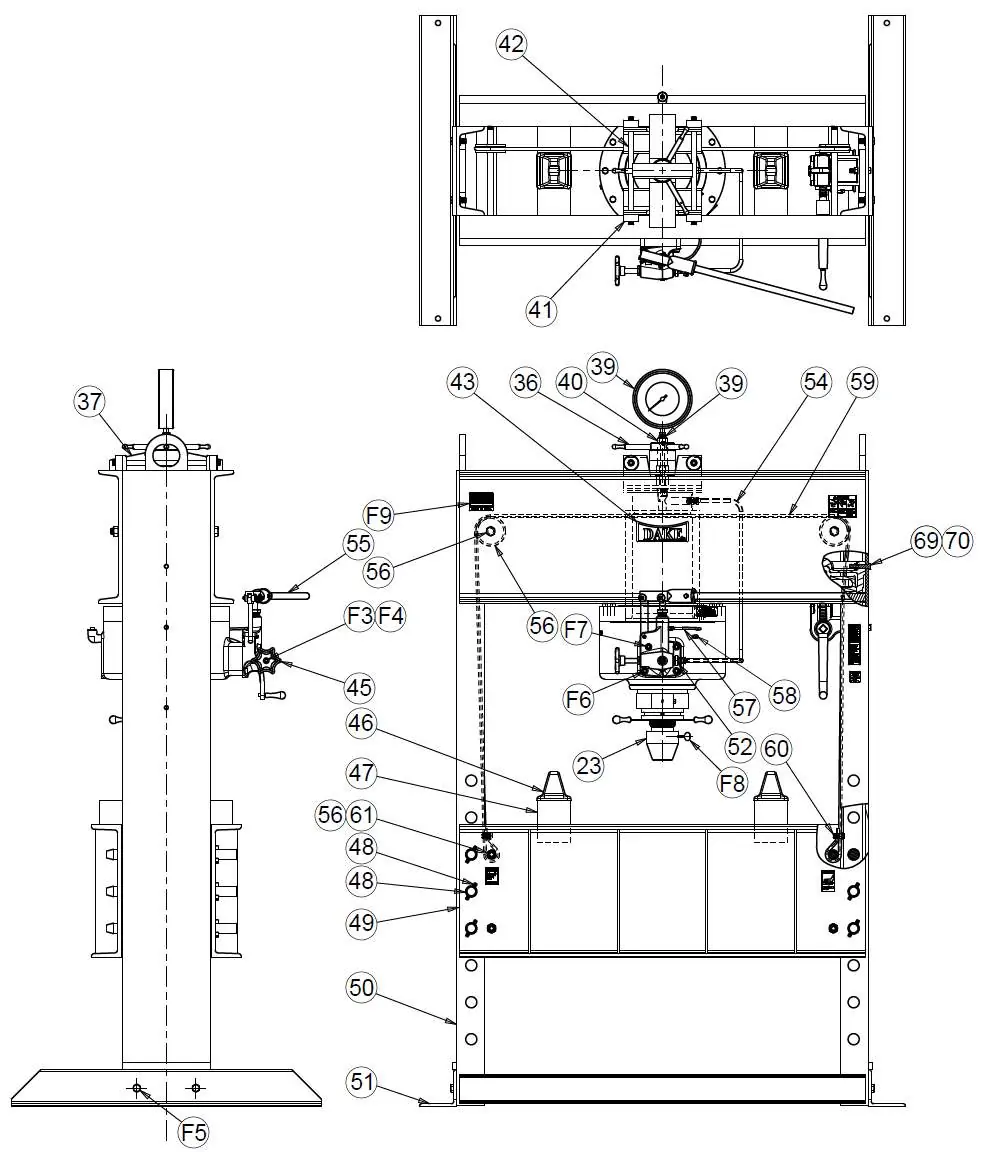

General Assembly
This section provides an overview of the general machine assembly, including the frame, table, and gauge components. It details the hardware required for the main structure, including screws, nuts, and washers used in the assembly.

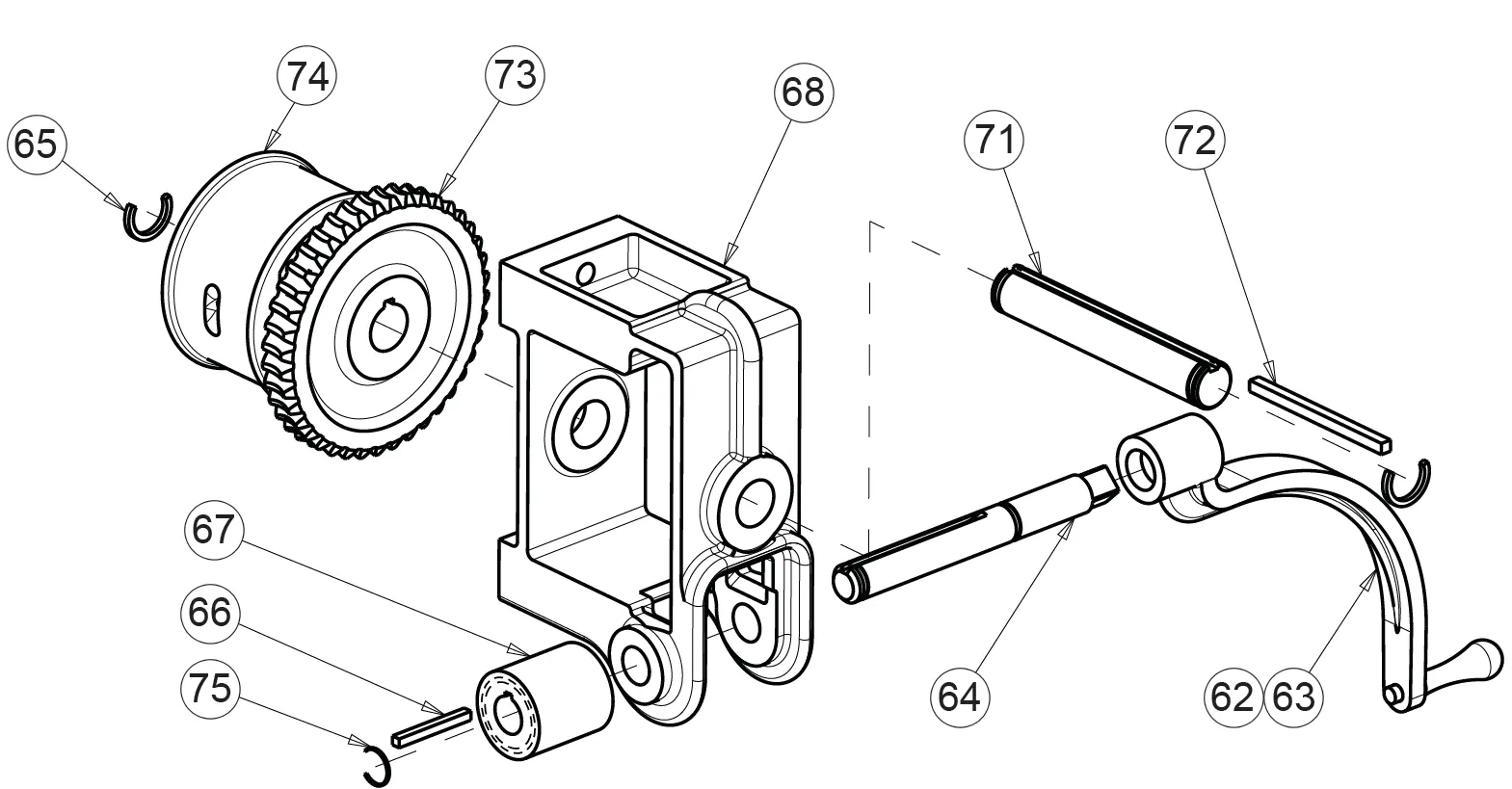

Table Hoist Assembly
The table hoist assembly diagram shows the mechanism used for raising and lowering the table. Components include the hand crank, worm gear, cable drum, and associated shafts and keys. Use this diagram to identify parts for the hoist system.
Ordering Information
Parts are available for direct purchase from Dake or through an authorized distributor. When placing an order, ensure you have the following information ready:
- Part Number
- Name of Part
- Model Number (150H-2023)
All parts are shipped F.O.B. Factory in Grand Haven, MI. Please contact the factory for current pricing.
Manufacturer information
DAKE Corporation
Practical help
Common problems
Ordering incorrect parts due to serial number variations
Always check the machine serial number. Parts like the Piston Leather and Piston Assembly differ based on whether the serial number is less than 192522 or greater than 192523.
Difficulty identifying a specific component
Locate the component in the relevant exploded view diagram (Handpump, Workhead, General, or Table Hoist) to find its item number, then cross-reference it with the corresponding parts list table.
Before use
- Locate the machine serial number to ensure compatibility for parts requiring specific versions.
- Identify the specific assembly (Handpump, Workhead, General, or Table Hoist) that requires maintenance.
- Consult the exploded view diagram to confirm the part number before contacting the distributor.
Specs in practice
- Serial Number Dependency
- Certain components (e.g., Piston Assembly) are specific to serial number ranges ( 192523) and are not interchangeable.
- F.O.B. Factory
- Freight On Board; parts are shipped from the Dake factory in Grand Haven, MI.
Images and diagrams
- Exploded views use numbered callouts that correspond directly to the 'Item No.' column in the adjacent parts tables.
- Tables list the 'Part Name', 'Part No.', and 'Qty' (quantity) required for each assembly.
Model compatibility
- Some parts are specific to serial number ranges. Verify your machine's serial number before ordering.
