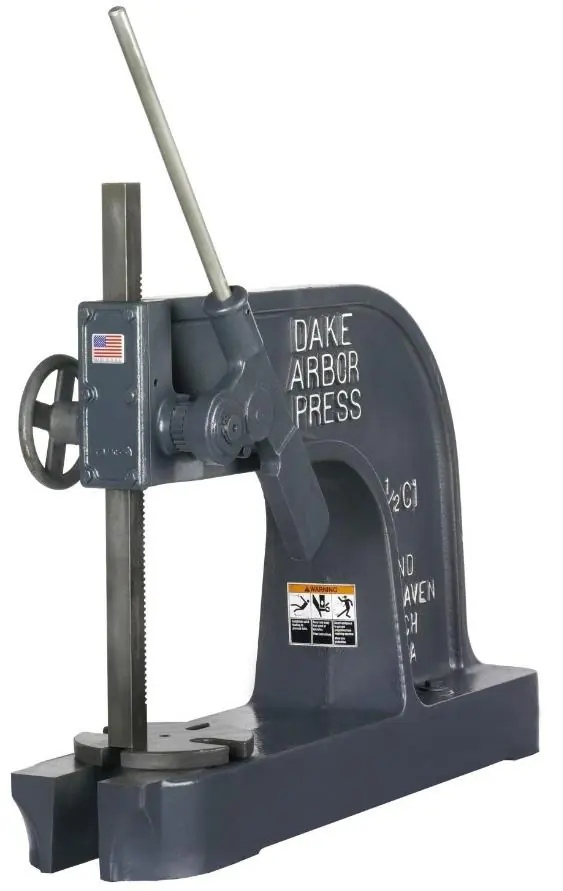

Dake 1-1/2C Ratchet Lever Arbor Press
Quick guide for the Dake 1-1/2C Ratchet Lever Arbor Press. Includes safety warnings, operating instructions, maintenance tips, and parts list.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Dake 1-1/2C Ratchet Lever Arbor Press is a manual industrial tool designed for pressing operations. Key safety requirements include anchoring the unit to prevent tipping and ensuring only one person operates the machine at a time. Never pull the handle past the horizontal position to avoid gear damage or slippage. Do not use pipe extensions or longer handles to increase leverage, and never hammer on top of the ram.
Specifications
- Model: 1-1/2C
- Capacity: 3 tons
- Leverage Ratio: 48:1
- Throat: 17-1/2 inches
- Largest Arbor: 2 inches
- Weight: 425 lbs
- Ram Size: 1-1/4 inch x 1-1/4 inch x 24-1/2 inch
Safety
The employer is responsible for performing a hazard and PPE assessment before work begins. Always keep safety labels in good condition and replace them if damaged. Wear eye protection and keep hands away from the point of operation. Ensure the workpiece is guarded to prevent projectiles from reaching the operator.
Operation
The press features two primary controls:
- Handwheel: Used to raise or lower the ram to and from the workpiece without exerting force.
- Handle: Used to lower the ram and exert force onto the workpiece.
Caution: Never pull the press handle past the horizontal position. Pull only until the handle is horizontal, then return it up as far as it allows before bringing it back down. This ensures the pawl fully engages with the gear teeth.
Maintenance
Keep all working parts of the press well-oiled for easier operation. Maintain a light film of oil over the entire surface of the ram to prevent rust.
Parts List
The manual includes an exploded view of the press with a corresponding parts list. When ordering parts, provide the part number, name of the part, and the model number (1-1/2C). Parts can be purchased directly from Dake or through a distributor.
Manufacturer information
DAKE Corporation
Practical help
Common problems
Handle pulled past horizontal position
This can cause gear damage or slippage. Only pull the handle until it is horizontal, then return it to the top position.
Insufficient leverage
Do not use a pipe over the handle or a longer handle to increase leverage. This is dangerous and can damage the machine.
Ram rust
Keep a light film of oil over the entire surface of the ram to prevent rust.
Before use
- Ensure the press is securely anchored to a stable surface to prevent tipping.
- Verify that all safety labels are present and legible.
- Ensure the operator is the only person in the immediate area.
- Check that all working parts are well-oiled.
- Confirm the workpiece is properly guarded.
Specs in practice
- Capacity (3 tons)
- The maximum force the press is designed to exert.
- Leverage ratio (48:1)
- The mechanical advantage provided by the handle mechanism.
- Throat (17-1/2 inches)
- The distance from the center of the ram to the frame, determining the maximum diameter of the workpiece.
Images and diagrams

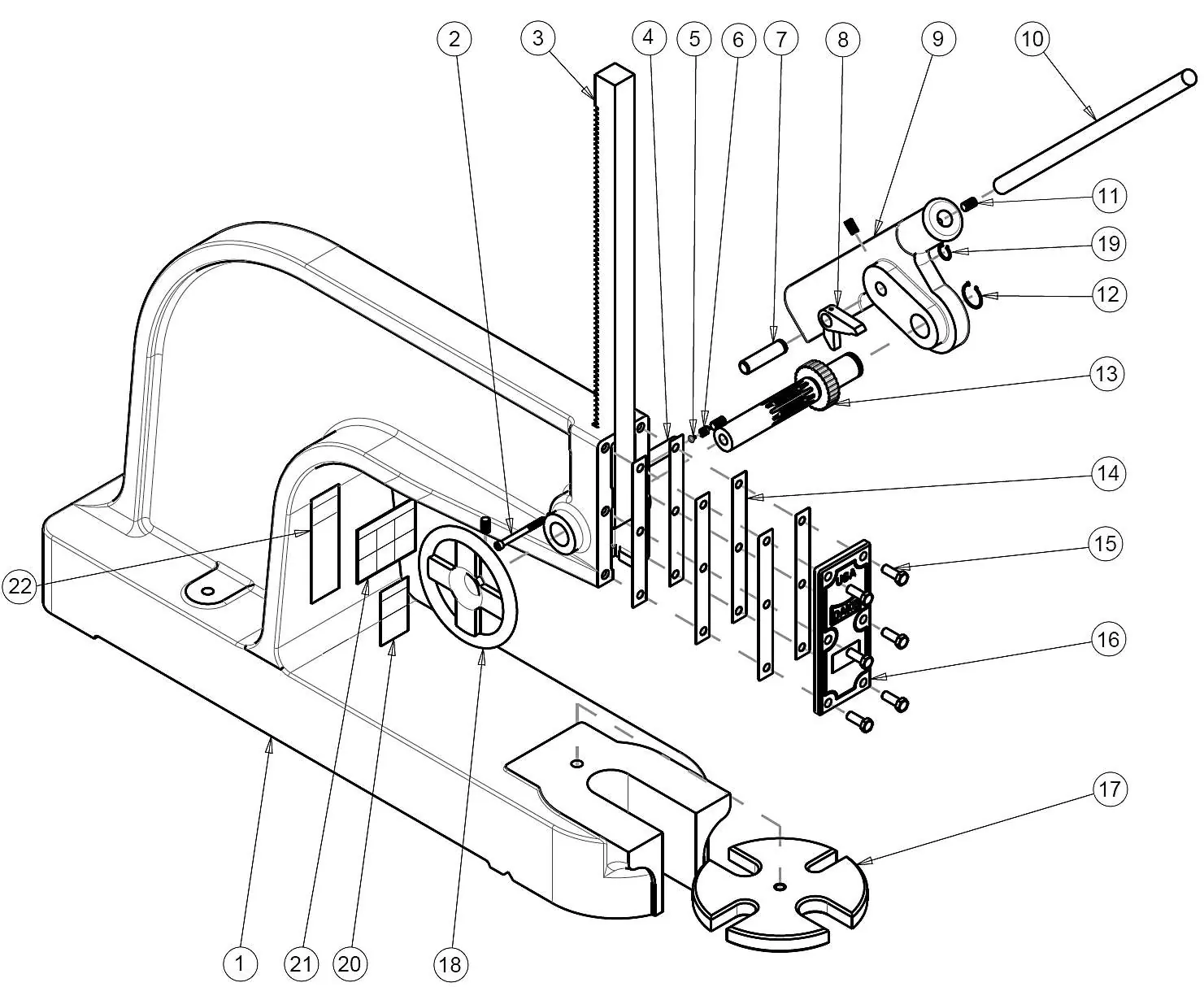

- The exploded view diagram identifies all 22 components, including the frame, ram, pawl, and handle assembly.
- The handle position diagram illustrates the safe operating range, showing the handle should not be pulled below the horizontal plane.
Model compatibility
- This manual is specific to the Dake 1-1/2C Ratchet Lever Arbor Press.
- Purchased components like Micro Drop mist systems are warranted only to the extent of the original manufacturer's warranty.
