DAKE 1-1/2, 1-1/2B and 1-3/4 Ratchet Lever Arbor Press User Manual

Quick guide from the manual

This manual provides operating and maintenance instructions for the DAKE Ratchet Lever Arbor Press models 1-1/2, 1-1/2B, and 1-3/4. Users must read and understand all safety instructions before operating the equipment to prevent serious injury.

Safety

• Never pull the press handle past the horizontal position. Doing so can cause gear slippage and tooth damage.
• Do not increase the leverage ratio by using a longer handle or by placing a pipe over the handle.
• Never hammer on top of the ram.
• The machine is intended to be operated by one person.
• Ensure the equipment is securely anchored to prevent tipping.
• Keep hands away from the point of operation.
• Wear eye protection and guard the workpiece to prevent projectiles.

Operation

The press features two primary controls for operation:

• Handwheel: Use the handwheel to raise or lower the ram to and from the workpiece without exerting force.

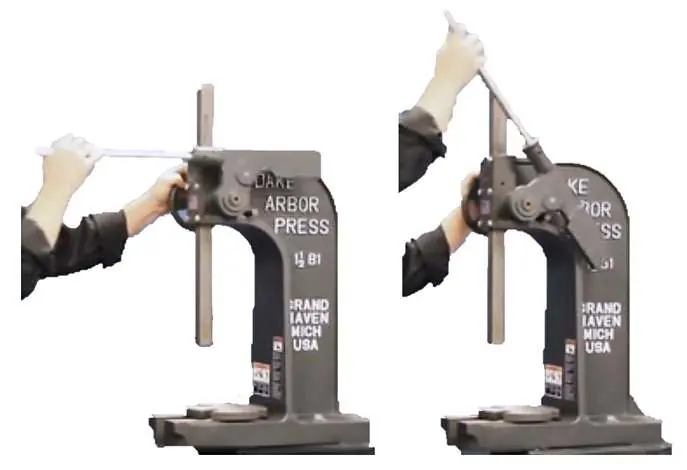

• Handle: Use the handle to lower the ram and exert force onto the workpiece. Always return the handle to the upright position after the stroke is complete.

Maintenance

• Keep all working parts of the press well-oiled to ensure smooth operation.
• Apply a light film of oil over the entire surface of the ram to prevent rust.

Parts and assembly

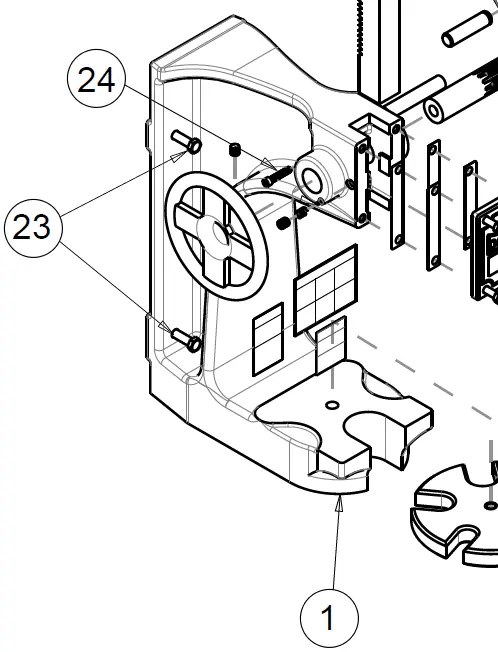

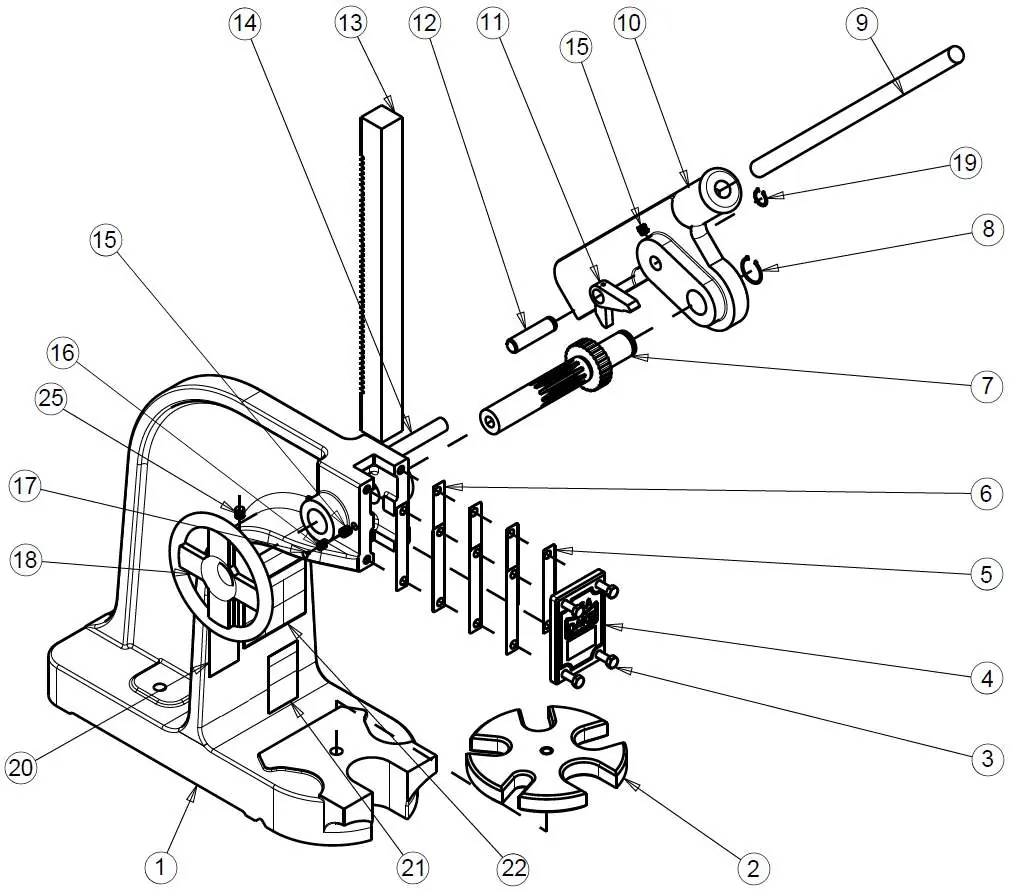

The manual includes detailed exploded views and parts lists for models 1-1/2, 1-1/2B, and 1-3/4. When ordering parts, provide the part number, name of the part, and the model number of your press. Parts can be purchased directly from Dake or through a distributor.
