Dellonda Standing Vertical Flexible Wire Cable Tidy Management System DH23

Quick guide from the manual

The Dellonda DH23 is a flexible, vertical cable management system designed to organize cables for desks. It supports both single and double-table configurations. The system features a serpentine tube design and offers flexible mounting options, including magnetic attachment or screw fixing for the lower connector.

Components

Ensure all parts are present before beginning installation:

• A: Upper Connector (1 pc)
• B: Lower Connector (1 pc)
• C: Serpentine Tube (4 pcs)
• D: Base (1 pc)
• Hardware: Allen Key 4x4 (1 pc), M5 screws (4 pcs), ST4.2 screws (4 pcs)

Installation

Step 1: Install the upper connector and the serpentine tubeAttach the upper connector (A) to one end of the serpentine tube (C) by buckling it in.

Step 2: Install the lower connector or the baseAttach the lower connector (B) or the base (D) to the other end of the serpentine tube (C) by buckling it in.

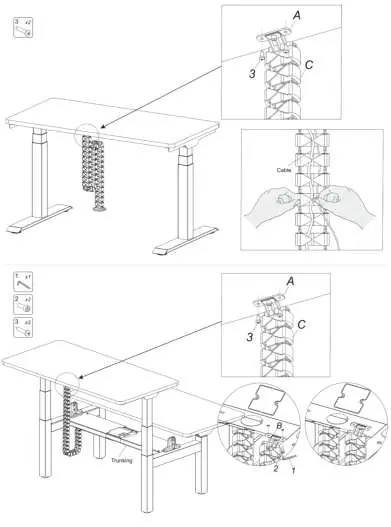

Step 3: Final mountingFor a single desk, fix the upper connector (A) to the desk and place the base (D) on the floor or a flat surface. Insert cables into the serpentine tube. For double-table setups, fix the upper connector (A) to the desk and the lower connector (B) to the trunking using screws or the magnetic attachment.

Safety and Maintenance

• Choking Hazard: This product contains small items. Keep away from young children.
• Supervision: Children should not play with the product.
• Installation: Read instructions carefully before attempting installation. If unsure, contact a professional installer.
• Environment: Ensure there are no hazard sources in the operating environment.
• Disposal: Dispose of the product and packaging in an environmentally friendly way in accordance with local regulations.

Support

For support, contact Dellonda Limited at Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk, IP32 7AR. Phone: 01284 757575. Email: [email protected]. Website: www.dellonda.co.uk.
