Dometic 10-Series Absorber Refrigerators: Operating Manual
Comprehensive operating manual for Dometic 10-Series absorber refrigerators, covering safety, installation, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionProduct Overview
The Dometic 10-Series is a high-performance absorber refrigerator designed specifically for installation in caravans and motor homes. It offers versatile cooling, deep-freezing, and food storage capabilities. The unit is designed to operate silently on three energy sources: 12 V DC, AC power, and liquefied gas (propane or butane). It features an automatic operating mode that intelligently selects the most economical energy source available.
Safety Instructions
Warning: Improper installation, adjustment, or maintenance can lead to serious injury or property damage. Always ensure the device is installed by qualified personnel. If you smell gas, immediately extinguish all open flames, do not touch electrical switches, open windows, and contact your gas supplier. Never store explosive substances like spray cans with propellants inside the refrigerator. The cooling aggregate at the back becomes very hot during operation; exercise caution when accessing the rear area.
Operation
Before first use, clean the interior and exterior with a damp cloth. For optimal performance, ensure the vehicle is level. The refrigerator features either a TFT display (T-models) or an LED display (S/X-models) for monitoring and control. Users can select cooling capacity, energy modes, and activate features like the frame heater to reduce condensation in high-humidity environments. The refrigerator also includes a 'tank stop' mode for safety during refueling, which blocks gas operation for 15 minutes.
Maintenance and Cleaning
Regular maintenance is essential for longevity and safety. Clean the interior regularly with a damp cloth, ensuring no water enters the electronics. Keep the condensate drain clear to prevent water buildup. The gas burner should be inspected and cleaned by a professional at least once a year, or more frequently if using liquefied petroleum gas. Always disconnect the power supply before performing any cleaning or service tasks.
Troubleshooting
If the refrigerator fails to operate, check the power supply fuses, gas cylinder levels, and ensure the vehicle is level. Faults are indicated by warning symbols and beeps. 'WARNING' type faults reset automatically once the issue is resolved, while 'ERROR' type faults require manual resetting via the control panel. If problems persist, contact an authorized Dometic service center.
Manufacturer information
Dometic
Practical help
Common problems
Refrigerator does not work on AC power
Check if the fuse is defective or if the vehicle is properly connected to the AC power supply.
Refrigerator does not work on gas
Ensure the gas cylinder is not empty, the valve is open, and there is no air in the supply line.
Inadequate cooling
Check for obstructed ventilation grills, ensure the door is closed properly, or defrost the evaporator if iced up.
Error code E14 (Stand-alone gas mode)
The battery charge is too low; insert new batteries and reset the error.
Door does not close
Check if the door handle is blocked on the opened side and remove the obstruction.
Before use
- Clean the interior and exterior with a damp cloth.
- Ensure the vehicle is parked on a level surface.
- Check that the gas supply is connected and the valve is open.
- Verify that the AC or DC power supply is connected.
- Ensure ventilation grills are not obstructed.
- Check that the door seals are clean and undamaged.
- Confirm the refrigerator is switched on and set to the desired mode.
Specs in practice
- Gross Capacity
- Total internal volume of the refrigerator and ice compartment before accounting for shelves/components.
- Climate Class SN
- Subnormal; designed for operation in ambient temperatures between +10 °C and +32 °C.
- Gas Consumption
- Approximate amount of gas used over a 24-hour period (522g).
- Connection Voltage
- The required electrical input (120 V AC / 12 V DC).
Images and diagrams

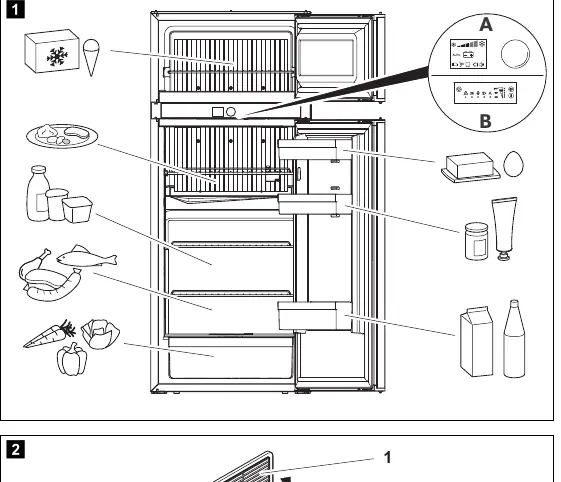

- Figure 1: Overview of control elements and food storage zones.
- Figure 2: Installation of winter covers for the ventilation grill.
- Figure 3: Menu navigation for TFT display models.
- Figure 8/9: Instructions for adjusting and positioning internal shelves.

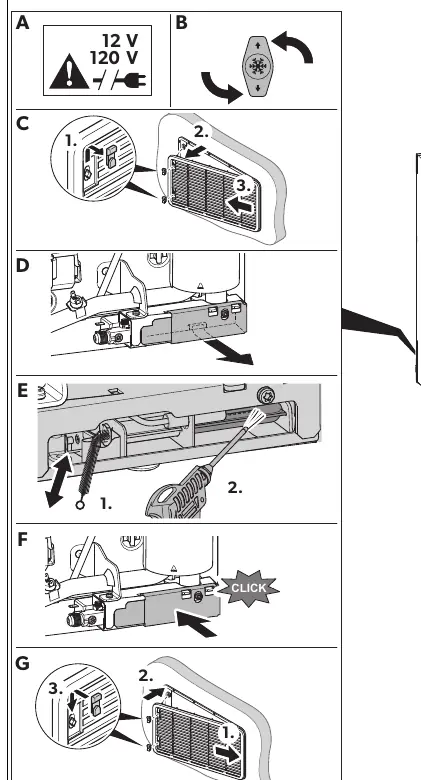

- Figure 15: Maintenance steps for cleaning the gas burner.
Model compatibility
- Only use propane or butane gas; natural gas is not permitted.
- Optional Battery Pack R10-BP is required for stand-alone gas operation.
- Winter cover LS300 is recommended for use in low ambient temperatures.
- The refrigerator is designed for installation in caravans and motor homes.
