Dometic 10-Series Compressor Refrigerator Manual
User manual for Dometic 10-Series compressor refrigerators, covering installation, operation, maintenance, and troubleshooting for various models.
Table of contents
Manual images
Jump to the sectionProduct Overview
The Dometic 10-Series is a range of high-performance compressor refrigerators designed specifically for installation in caravans and motorhomes. These units are engineered to operate on a 12V power supply, providing efficient cooling and freezing capabilities for mobile living environments. The series includes various models, such as the RC, RCS, RCL, and RCD variants, each tailored to specific space and capacity requirements.
Safety Information
Safety is paramount when operating the refrigerator. The cooling circuit contains flammable refrigerant (R600a or R134a), requiring careful handling. Ensure the installation area is well-ventilated and free from potential ignition sources. The appliance should only be installed, maintained, or repaired by qualified personnel. Children aged 8 years and older, as well as persons with reduced physical or mental capabilities, may use the refrigerator under supervision or with proper instruction. Always ensure that children do not play with the appliance and that shelves are secured to prevent entrapment.
Operation and Modes
The 10-Series refrigerators feature intuitive control interfaces, either via a TFT or LED display, depending on the model. Users can select between different operating modes to suit their needs:
- Performance Mode: Standard operation with full thermostat control.
- Quiet Mode: Reduced compressor and fan speed for quieter operation, ideal for nighttime.
- Boost Mode: Maximum cooling power for rapid chilling or when loading large quantities of fresh food.
The refrigerator also includes features like a child lock, frame heating (on RCD models), and adjustable temperature settings. For optimal efficiency, it is recommended to keep the refrigerator in a horizontal position and avoid frequent door openings.
Maintenance and Care
Regular maintenance ensures the longevity and efficiency of your refrigerator. Clean the interior and exterior with a damp cloth periodically. Keep the condensation drain clear to prevent water accumulation. If the refrigerator will not be used for an extended period, it should be defrosted, cleaned, and the door left slightly ajar to prevent mold growth. Use the winter position feature to keep the door open during storage.
Troubleshooting
In the event of a malfunction, the refrigerator will display a warning symbol and a specific error code. Common issues such as power supply problems, ventilation obstructions, or icing on the evaporator can often be resolved by following the provided troubleshooting guide. If an error persists, contact an authorized service center.
Disposal
When disposing of the refrigerator, ensure it is handled according to local environmental regulations. The appliance contains flammable refrigerant and insulation gases that require professional disposal.
Manufacturer information
Dometic
Practical help
Common problems
Refrigerator does not work
Check the DC fuse, vehicle fuse, battery charge, and ignition status. Ensure the compressor temperature is not too low (<0°C).
Insufficient cooling
Check for blocked ventilation, ice buildup on the evaporator, or incorrect temperature settings. Ensure the unit has been running for at least 4-5 hours.
Error codes displayed
Identify the code (e.g., E03, E32-E35) and follow the manual's reset instructions, typically involving holding the power button for 2 seconds.
Before use
- Clean the interior and exterior with a damp cloth.
- Ensure the vehicle is parked horizontally.
- Ventilate the room if any initial odors occur.
- Do not store goods for the first 4 hours after startup.
- Check that the door seal is intact.
- Verify the power supply voltage matches the rating plate.
Specs in practice
- Climate Class (T/ST/N)
- Indicates the ambient temperature range the refrigerator is designed to operate in.
- GWP (Global Warming Potential)
- A measure of how much heat a greenhouse gas traps in the atmosphere.
Images and diagrams
- The manual includes diagrams for door locking mechanisms, showing how to secure the door for travel and how to set it to the winter position.

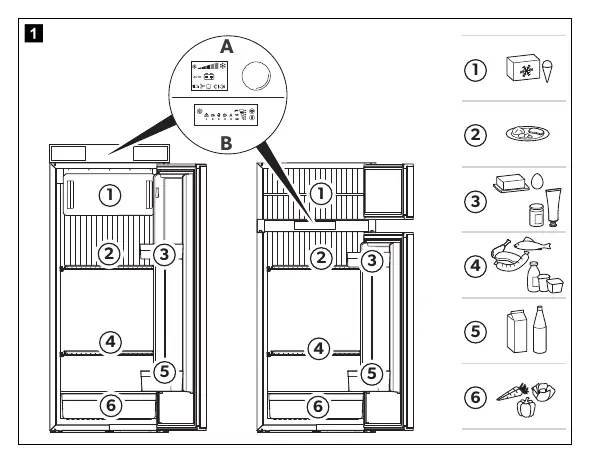

- Control panel diagrams illustrate the navigation menus for TFT and LED displays.
- Installation diagrams show the correct placement of shelves and the VG Fresh Base drawer.
Model compatibility
- Designed specifically for caravans and motorhomes.
- Not intended for household use.
- Not suitable for storing medicines or corrosive substances.
- Compatible with CI-bus systems on specific models.
