Dometic 10-Series Refrigerator Installation Guide
Comprehensive installation and setup guide for Dometic 10-Series absorption refrigerators, including safety instructions, ventilation requirements, and electrical/gas connection details.
Table of contents
Manual images
Jump to the sectionProduct Overview
The Dometic 10-Series is a range of high-performance absorption refrigerators designed specifically for installation in caravans and motorhomes. These units provide reliable cooling using either gas or electrical power sources. Proper installation is critical for both the performance of the cooling unit and the safety of the vehicle occupants.
Safety Instructions
Installation must be performed by qualified personnel in accordance with local regulations. The cooling unit operates under high pressure and must never be opened. Ensure the installation area is well-ventilated and free from flammable materials. When using gas, only propane or butane is permitted. Always check for leaks using a certified method, never an open flame. If you detect an ammonia smell, shut off the appliance immediately, ventilate the area, and contact a service professional.
Installation Requirements
The refrigerator must be installed in a niche to ensure stability during vehicle movement. It is essential to maintain a level installation (within 3 degrees) for the absorption system to function correctly. A minimum clearance of 5 mm from the floor is required for proper door operation. The unit must be installed in a draft-proof manner to prevent combustion gases from entering the living space. This is achieved by using appropriate seals between the refrigerator's rear wall and the vehicle interior.
Ventilation and Airflow
Proper ventilation is vital for the refrigerator's efficiency. You must install both a lower ventilation opening and an upper exhaust opening in the outer wall. If the required distance between these openings cannot be maintained, a roof ventilator must be installed. Ensure that these openings are not obstructed by vehicle parts, such as open doors or accessories like bike racks. A heat-conducting plate should be installed above the unit to prevent heat accumulation.
Electrical and Gas Connections
Gas connections must be made using metal-sealed fittings. A backup wrench must be used when tightening connections to prevent damage to the internal components. Electrical connections must be protected by appropriate fuses (20A for the heating element, 2A for the electronics). The refrigerator features a CI-bus interface for integration with compatible central vehicle displays. Ensure that the voltage drop is kept below 0.8V to maintain optimal cooling performance.
Maintenance and Disposal
Regular maintenance is required to ensure long-term performance. When disposing of the unit, remove the doors but leave the shelves inside to prevent accidental entrapment. Always use original Dometic ventilation grilles and components to maintain safety and warranty coverage.
Manufacturer information
Dometic
Practical help
Common problems
Ammonia smell
Shut off the appliance immediately, ventilate the room thoroughly, and contact a qualified service technician.
Reduced cooling performance
Ensure proper ventilation, check that the unit is level, and verify that the distance to the rear wall is between 15-25 mm.
Condensation inside the fridge
Avoid frequent door opening, ensure food is not too warm when stored, and check that the drain hose is installed with a constant slope.
Before use
- Ensure the vehicle is parked on a level surface (max 3-degree tilt).
- Verify that the gas type and pressure match the appliance specifications.
- Check that all electrical connections are dry and secure.
- Confirm that the unit is installed in a draft-proof manner.
- Ensure all ventilation openings are clear and unobstructed.
- Verify that the gas system has passed a leak and flame test by a specialist.
- Check that the condensation drain hose is correctly routed outside.
Specs in practice
- Gas Consumption
- Approximately 580g per 24 hours.
- Climate Class
- SN (Subnormal) rating for ambient temperature performance.
- Voltage Drop
- Must be <0.8V between power source and terminal for optimal cooling.
Images and diagrams
- Figure 1: Door clearance and floor mounting requirements.
- Figure 4-7: Ventilation and exhaust path requirements for optimal airflow.
- Figure 8: Methods for draft-proof installation using seals.
- Figure 19: Gas connection details including torque specifications.

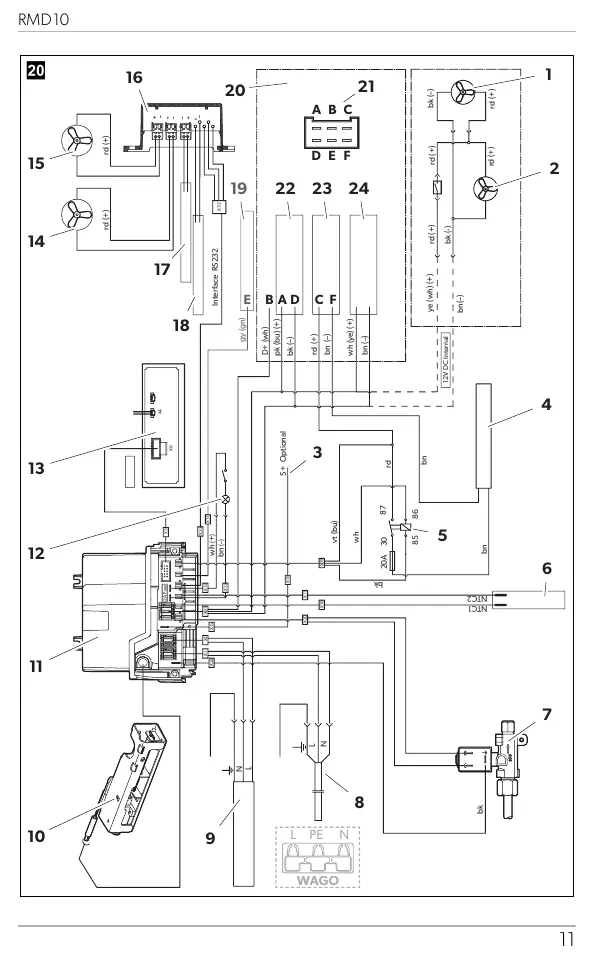

- Figure 20: Electrical wiring diagram for DC/AC power and CI-bus.
Model compatibility
- Compatible with Dometic LS300 winter covers.
- Supports optional REF-FANKIT for improved ventilation.
- Compatible with R10-BP battery pack for independent gas operation.
- CI-bus interface allows control via compatible central vehicle displays.
