Assembly and Parts Guide for DoorKing 14FT Wedge Barrier
Comprehensive assembly and parts guide for the DoorKing 14FT Wedge Barrier. Includes detailed exploded views, component lists, and installation notes for the 1625-614 model.
Table of contents
Manual images
Click an image to enlargeQuick Guide and Important Information
This document provides the technical drawings, parts list, and assembly details for the DoorKing 14FT Wedge Barrier (Model 1625-614). Please note the following critical information before beginning assembly:
- Sold Separately: The operator, arm, edge, and traffic lights are not included with this barrier unit.
- Anchor Bolts: Anchor bolts are not provided. It is recommended to use 3/4 in - 1.0 in diameter anchor bolts (57X required).
- Proprietary Information: This drawing is the sole property of DoorKing, Inc. and reproduction is prohibited without written permission.
Product Overview and Dimensions

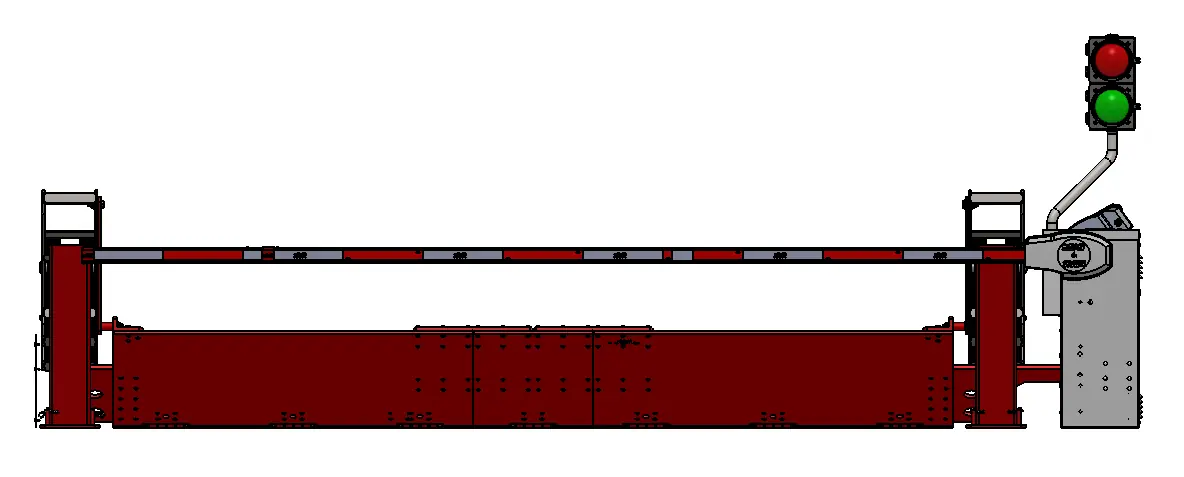

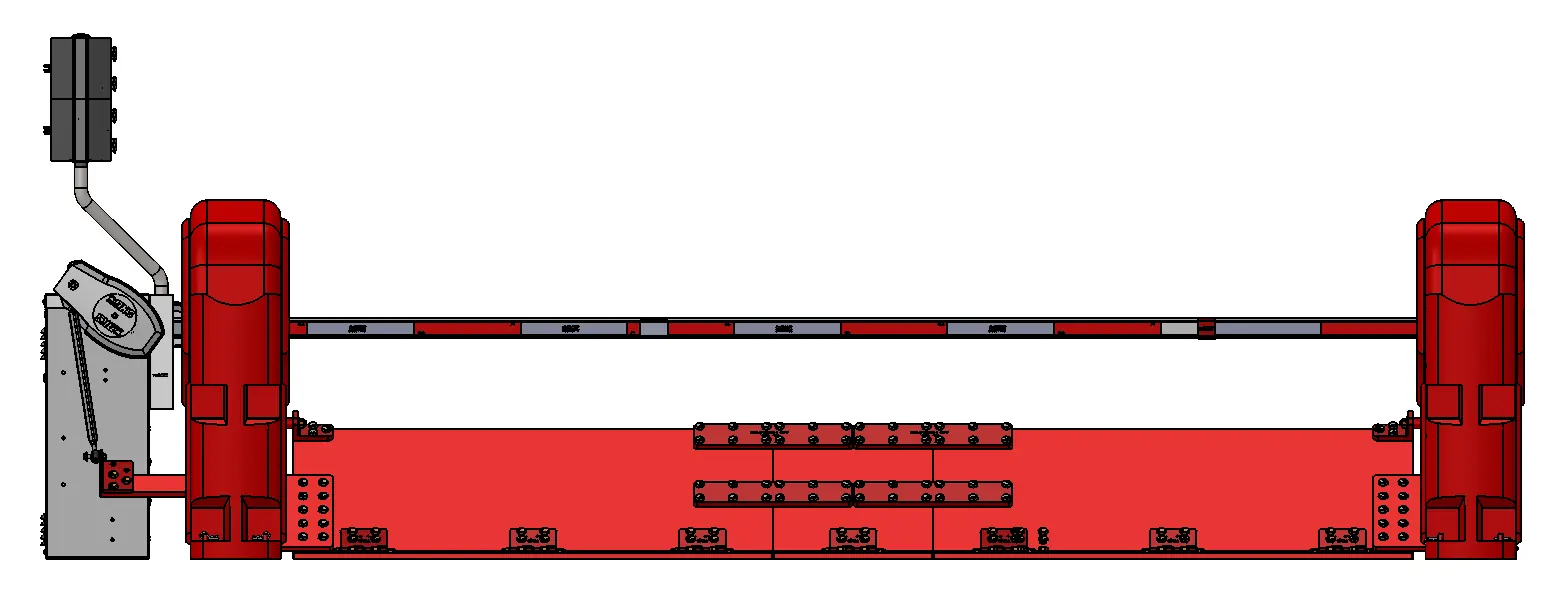

The DoorKing 14FT Wedge Barrier is designed for a 14-foot (164-inch) opening. The system features a 17-foot octagon arm. The documentation provides top, side, and front views to assist with site planning and installation layout.
Assembly and Parts

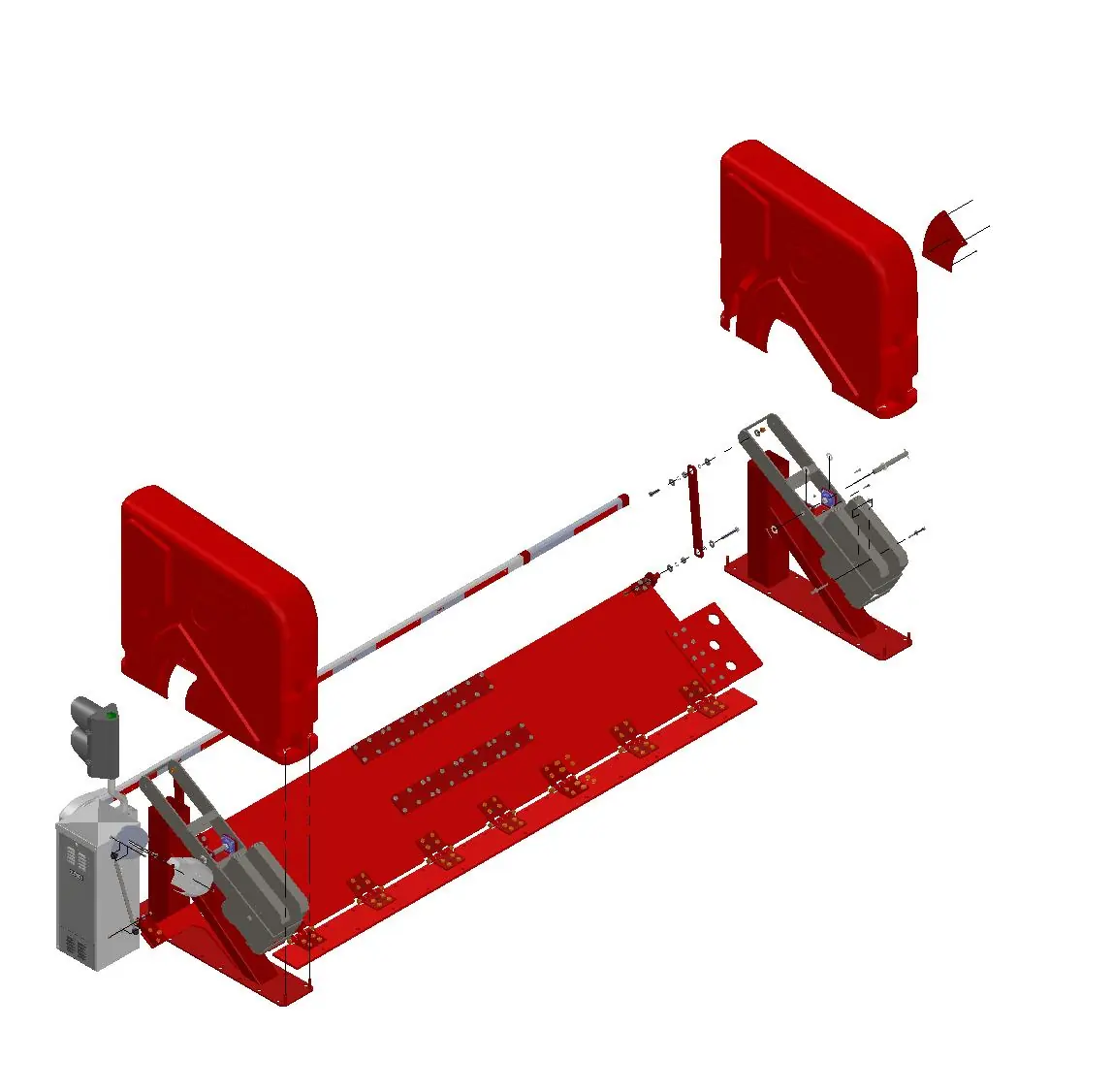

The manual includes detailed exploded views and a comprehensive parts list to assist in the assembly process. Refer to the following sections for specific hardware and component placement:
- Parts List: A complete table of components, including hinge bearings, link bars, wedge plates, covers, and various bolts/nuts, is provided on page 2.

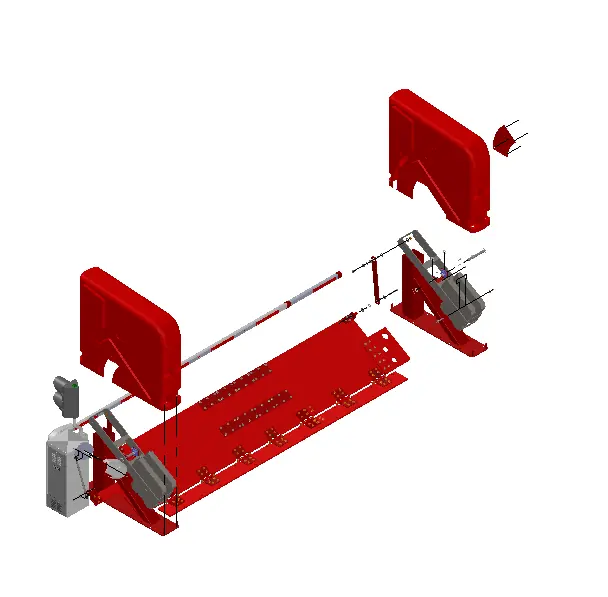

- Detail B: Illustrates the assembly of the hinge, basket, and associated hardware.

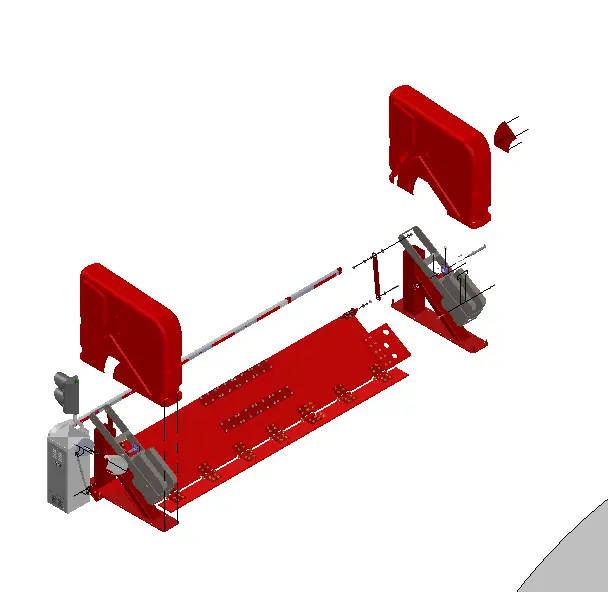

- Detail C: Illustrates the assembly of the hub, link, and bracket components.
Ensure all hardware is installed according to the specified quantities listed in the parts table to maintain structural integrity.
Practical help
Common problems
Missing anchor bolts
Anchor bolts are not provided. You must purchase 3/4 in - 1.0 in diameter anchor bolts separately (57X required).
Missing components
Verify all parts against the parts list on page 2 before starting assembly to ensure all hardware is present.
Before use
- Verify all parts against the provided parts list.
- Ensure you have the required 3/4 in - 1.0 in diameter anchor bolts.
- Confirm the installation site dimensions match the 14FT opening.
- Ensure the operator, arm, edge, and traffic lights are available as they are sold separately.
Specs in practice
- 14FT Opening
- The width of the vehicle barrier opening.
Images and diagrams
- Detail A: Shows side view scale.
- Detail B: Exploded view of hinge and basket assembly.
- Detail C: Exploded view of hub and link assembly.
Model compatibility
- Operator, Arm, Edge, and Traffic Lights are sold separately.
