Einhell TP-CI 18/250-C Li BL Cordless Impact Driver

Product Description

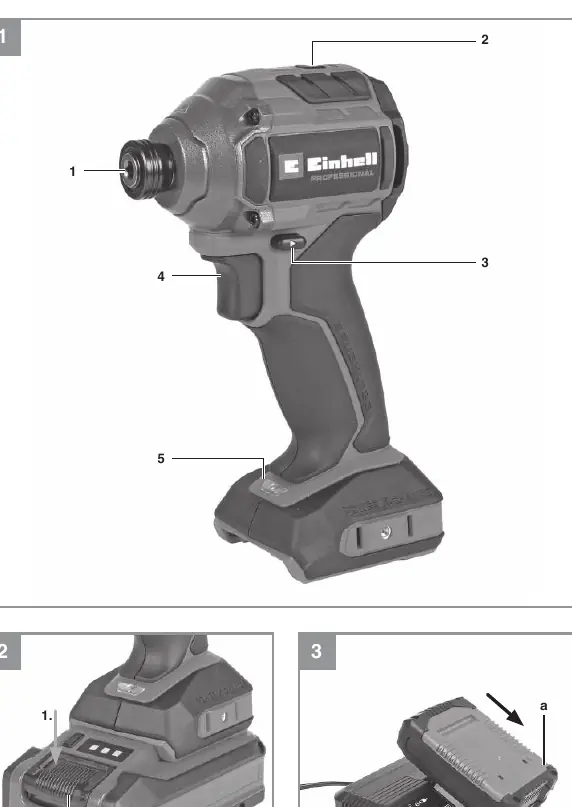

The Einhell TP-CI 18/250-C Li BL is a high-performance cordless impact driver designed for efficient screwdriving tasks. It is equipped with a brushless motor, providing increased power and longer runtime compared to conventional motors. The tool features a 1/4" (6.35 mm) bit mount and three adjustable speed/torque settings, allowing for precise control based on the screw size.

Safety Instructions

• Always read the operating instructions before use.
• Wear appropriate personal protective equipment, including ear protection, a dust mask, and safety goggles.
• Ensure the work area is free of hidden electrical, gas, or water lines before drilling or screwing into walls.
• Store batteries in a dry environment with a temperature between +10°C and +40°C.

Operation

Charging the Battery: The battery pack can be removed by pressing the pushlock button. Ensure the mains voltage matches the charger specifications. The charger features LED indicators to show the charging status, including ready, charging, fully charged, and error states.

Using the Tool: The impact driver features a direction changeover switch that also acts as a safety lock when in the middle position. The on/off switch allows for infinitely variable speed control. An integrated LED light automatically illuminates the work area when the trigger is pressed.

Settings: Use the selector switch to toggle between three speed/torque levels (1, 2, and 3) to suit the specific application.

Maintenance and Cleaning

Always remove the battery before performing any maintenance or cleaning. Keep all safety devices, air vents, and the motor housing free of dust and dirt. Clean the tool with a clean cloth or low-pressure compressed air. Regularly wipe with a damp cloth and mild soap, ensuring no water enters the device.

Disposal

Do not dispose of power tools or batteries in household waste. They must be collected separately and recycled in an environmentally friendly manner according to local regulations.
