BOSCH GSR 180-LI Cordless Drill/Driver

Product Description

The Bosch GSR 180-LI is a powerful and reliable cordless drill/driver designed for professional use. It is ideal for driving and loosening screws, as well as drilling in wood, metal, ceramic, and plastic. The tool features a 2-speed gearbox for versatile performance and 20 torque settings for precise control.

Technical Data

• Rated Voltage: 18 V
• No-load Speed (1st/2nd gear): 0–500 / 0–1900 min⁻¹
• Max. Torque (hard/soft): 54/21 Nm
• Max. Drilling Diameter (Wood/Steel): 35 mm / 10 mm
• Weight (with battery): 1.6–2.6 kg

Safety Instructions

General Safety: Always keep your work area clean and well-lit. Do not operate the tool in explosive atmospheres. Wear personal protective equipment, including eye protection.

Battery Safety: Use only recommended chargers. Protect the battery from heat, fire, and moisture to prevent explosion and short-circuiting.

Operation

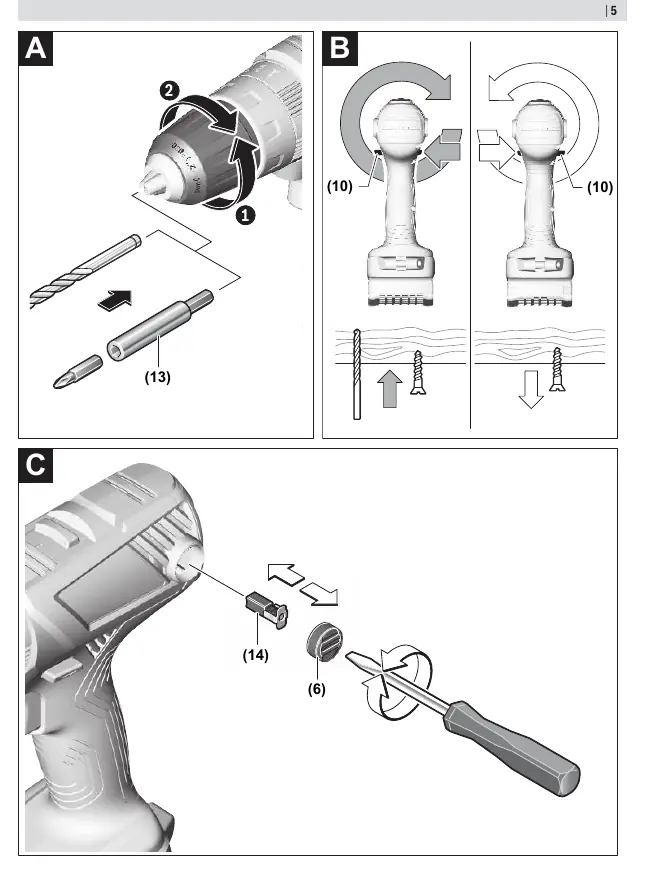

Starting: Insert a charged battery into the handle until it clicks into place. Use the rotational direction switch to set the desired direction (right for drilling/screwdriving, left for loosening).

Operating Modes: Set the torque presetting ring to the desired torque for screwdriving or to the 'drilling' symbol for drilling.

Speed Selection: Use the gear selector switch to choose between low speed (Gear I) for large drilling diameters or high speed (Gear II) for small drilling diameters.

Maintenance

Cleaning: Keep the tool and ventilation slots clean for safe operation. Check carbon brushes every 2–3 months and replace both if necessary.

Disposal

Dispose of power tools, batteries, accessories, and packaging in an environmentally friendly manner. Do not dispose of power tools or batteries in household waste.
