User Manual for Evolur Raleigh 1222R1-610 Glider
Quick guide for the Evolur Raleigh 1222R1-610 glider. Includes assembly instructions, safety warnings, usage tips, and furniture care guidelines.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Evolur Raleigh 1222R1-610 is a glider recliner designed for comfort. Before using, ensure the product is fully assembled and the backrest is securely locked. The maximum weight capacity is 108 kg (240 lbs). Always keep the chair in an upright and closed position when not in use.
Safety Warnings
- Failure to follow instructions may result in serious injury or death.
- Check for damaged hardware, loose joints, or missing parts before and after assembly and frequently during use.
- Do not allow children to play on or use the glider unsupervised.
- Ensure nothing is underneath the footrest when closing it to avoid injury.
- Keep hands and feet clear of the mechanism. Only the occupant should operate the mechanism.
- Do not use the glider if it is not assembled properly.
Parts List
- Seat: The main base unit with the swivel mechanism.
- Back: The backrest component that attaches to the seat.
Assembly Instructions

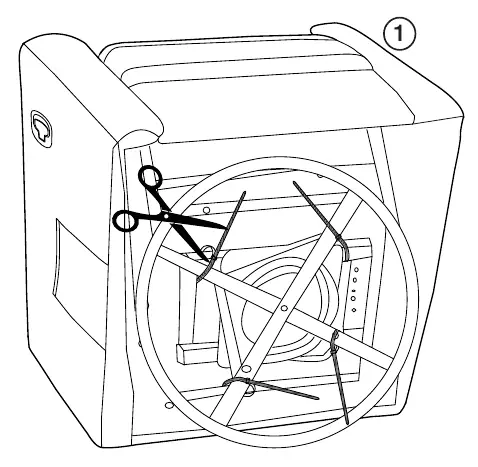

Base Setup
Place the glider on a soft, level surface. Carefully cut the straps wrapped around the metal swivel mechanism located underneath the seat.

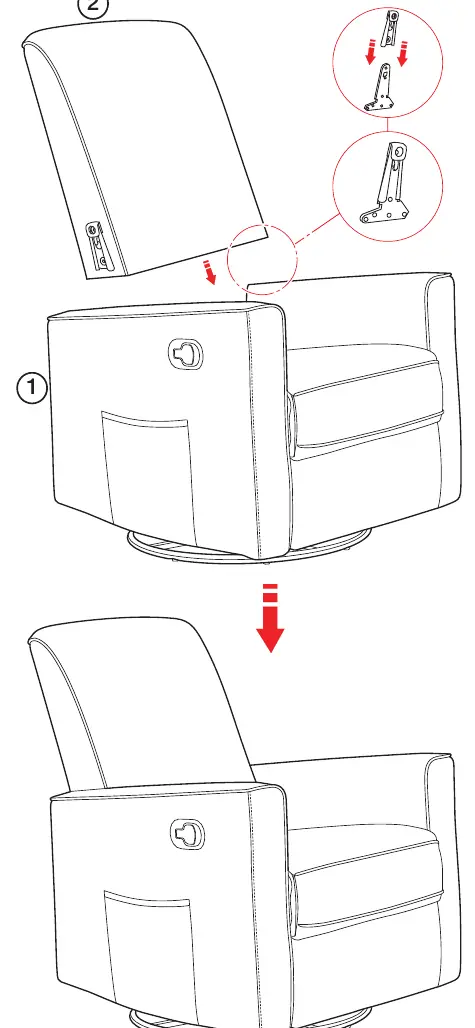

Back Seat Setup
- Align the metal channel on the backrest with the metal prongs on the seat frame.
- Slide the metal channel into the metal prongs.
- Ensure the backrest clicks and locks into place.
- Pull the backrest upward to verify it is fully secured before use.
Operating Instructions

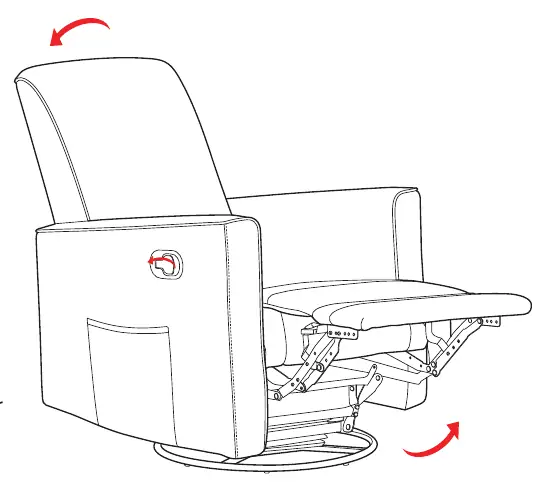

To recline, use the lever located on the side of the chair to lift the footrest. Ensure the backrest is securely attached to the seat before attempting to recline to prevent fall hazards.
Care and Maintenance
- Protect surfaces from hot or extremely cold items.
- Protect fabric from pens, markers, crayons, and scented oils, which can stain or damage the material.
- Do not drag items across the surface.
- Cleaning: Use only mild, water-free cleaning solvents. Never use water, as tap water contains minerals that may cause rings or fading. Do not use bleach.
- Do not spray cleaners directly onto the furniture.
- Inspect the product periodically for loose connections.
- Lift the chair slightly when moving it on carpeting to prevent swivel breakage.
- Do not store in extreme temperatures (e.g., hot attics or damp basements).
Manufacturer information
Evolur
Practical help
Common problems
Backrest feels loose or unstable
Ensure the metal channel on the backrest is fully engaged with the metal prongs on the seat until it clicks and locks.
Swivel mechanism breakage
Lift the chair slightly when moving it across carpeting to avoid putting stress on the swivel base.
Stains or fabric damage
Do not use water or bleach. Use only mild, water-free cleaning solvents. Avoid contact with pens, markers, and scented oils.
Before use
- Check for damaged hardware, loose joints, or sharp edges.
- Ensure no parts are missing or broken.
- Verify the backrest is securely locked into the seat frame.
- Ensure the area under the footrest is clear of obstructions.
- Confirm the chair is placed on a soft, level surface.
Specs in practice
- Maximum Load
- 108 kg (240 lbs). Exceeding this weight may damage the product and cause injury.
Images and diagrams
- Base Setup: Shows the location of straps under the seat that must be cut before use.
- Backrest Assembly: Illustrates the alignment and sliding motion required to lock the backrest into the seat frame.
Model compatibility
- For replacement parts, contact Dream On Me at 145 Veronica Avenue, Somerset, New Jersey 08873.
