The FBT MUSE 118FSND is a high-performance powered subwoofer designed for professional touring and permanent installations. It features a hybrid band-pass design, 1600W RMS amplification, and advanced networking capabilities via Dante and AES70. This guide provides essential information for setup, connection, and operation.
Product Overview

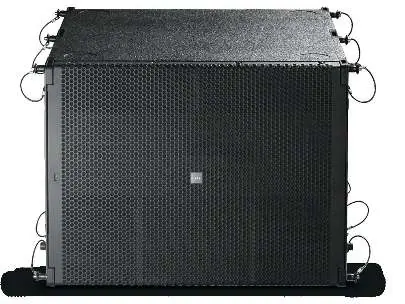

The MUSE 118FSND is equipped with an 18-inch neodymium woofer and a Class D amplifier. It is designed to be used in ground-stacked or suspended configurations, often in conjunction with the MUSE 210LND line array. The enclosure is built from 15mm birch plywood and includes integrated hardware for suspension.

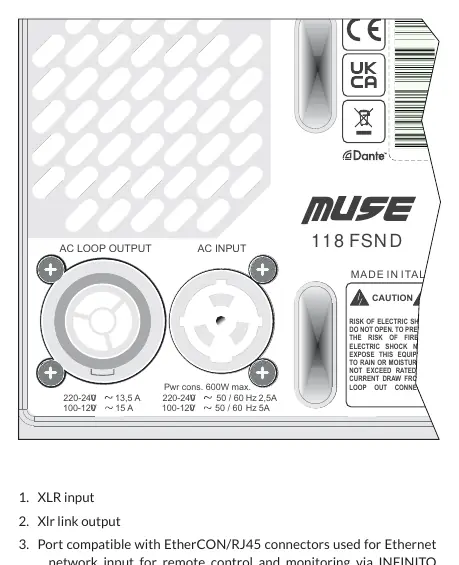

Connection Panel
The rear panel contains all necessary inputs and outputs for audio and networking:
- XLR Input/Link: Standard analog audio input and output for daisy-chaining.
- NET IN/OUT: EtherCon/RJ45 ports for Dante digital audio streaming and remote control via the INFINITO Management Suite.
- AC Power: PowerCon IN and LOOP OUT connectors for power distribution.
DSP and Controls
The subwoofer features an onboard OLED display and a push-encoder knob. This interface allows users to:
- Adjust the general digital volume.
- Access and navigate the DSP menu.
- Select and configure parameters for system optimization.
Software and Networking
The device is compatible with the FBT INFINITO Management Suite. This Windows-based software allows for real-time monitoring of internal sensors, status checks, and parameter control for over 100 connected devices on the same TCP/IP network. It supports auto IP address assignment.
Installation and Accessories
The subwoofer supports cardioid configurations, which require specific orientation (rear-facing) to cancel sound pressure behind the cluster. The enclosure can be suspended facing forward or backward. Key accessories include the MS-F210 flybar for suspension and an optional 4-wheel kit for transport.
Technical Specifications
- Amplifier Power: 1600W RMS / 3200W Peak.
- Frequency Response: 33Hz @-6dB.
- Input Impedance: 22 kOhm.
- SPL Max: 136dB / 140dB (half-space).
- Dimensions: 652mm x 500mm x 750mm.
- Weight: 67 kg.
Manufacturer information
FBT Elettronica SpA
Practical help
Common problems
No sound output
Check XLR input connections and ensure the DSP volume is not set to minimum. Verify the signal source is active.
Network/Dante not recognized
Ensure the EtherCon/RJ45 cable is securely connected to the NET IN port. Verify that the INFINITO software is running and the network settings are configured correctly.
Cardioid configuration ineffective
Ensure the subwoofer is physically oriented correctly (rear-facing) and the appropriate DSP preset for cardioid operation is selected.
Before use
- Verify the AC power source matches the device requirements (100-120V or 220-240V).
- Ensure the mounting surface or flybar is rated for the weight of the subwoofer (67 kg).
- Connect the audio source via XLR cables.
- Connect the network cable to the NET IN port if remote management is required.
- Check that the enclosure is stable and the grille is undamaged.
Images and diagrams
- The connection panel diagram illustrates the location of XLR inputs/outputs, EtherCon network ports, and PowerCon AC power connectors.
- The dimension drawing provides the physical footprint and height/width/depth measurements necessary for installation planning.
Model compatibility
- Compatible with MUSE 210LND line array systems.
- Requires INFINITO Management Suite software for remote control and monitoring.
- Supports daisy-chaining via EtherCon/RJ45 ports.
