Service Manual for Fender American Deluxe Stratocaster® HSS Shawbucker (011911XXXX)
Comprehensive service and technical guide for the American Deluxe Stratocaster HSS Shawbucker. Includes detailed parts diagrams, wiring schematics, and switch control function charts.
Table of contents
Quick guide from the manual
This document serves as the official service and parts reference for the Fender American Deluxe Stratocaster HSS Shawbucker (model 011911XXXX). It provides technical diagrams for maintenance, component identification, and detailed wiring schematics for the HSS pickup configuration, including the S-1 switching system.
Parts Layout and Identification
The manual provides a comprehensive parts breakdown. Key components include the body, neck assembly, locking tuners, roller nut, pickguard, and various bridge components. Each part is assigned a reference number corresponding to the parts list for easy identification during repairs or upgrades.
Wiring and Electronics
The document includes detailed wiring diagrams for the HSS pickup configuration. This includes the 5-way selector switch, S-1 volume switch, and tone controls. The wiring views illustrate the routing of pickup cables, capacitor connections, and output jack wiring, essential for troubleshooting or replacing electronic components.
Switch and Control Function
The guitar features a complex switching system. The manual provides a function chart detailing how the 5-way selector switch interacts with the S-1 switch and the push/push button. This chart shows which pickups are active in each position and whether they are wired in series or parallel, allowing users to understand the full tonal range of the instrument.
Maintenance and Components
The parts list includes specific hardware such as tremolo arm springs, bridge sections, and various screws and washers. Users should refer to the parts list to ensure they are using the correct replacement components, such as the specific .022µF capacitors or the L.S.R. roller nut assembly.
Manufacturer information
Fender Musical Instruments Corporation
Practical help
Common problems
Unclear pickup configuration
Refer to the 'Switch and Control Function' chart on page 6 to see which pickups are active in each 5-way switch position.
Identifying replacement parts

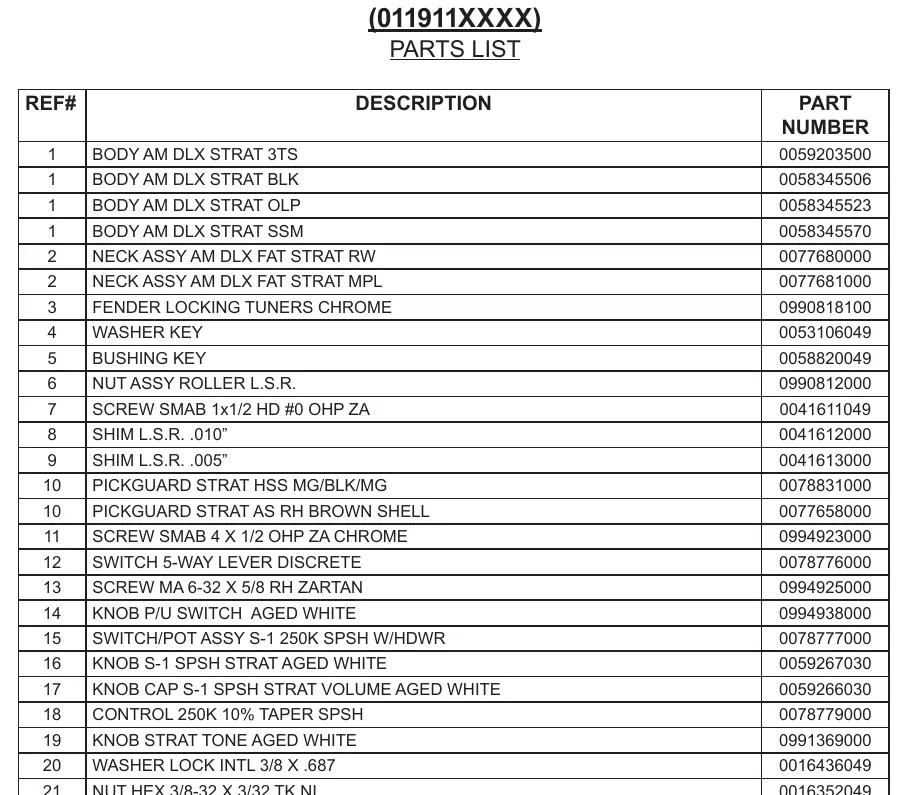

Use the 'Parts List' on pages 2 and 3 to find the exact Fender part number for components like the bridge, tuners, or switches.
Before use
- Verify the model number (011911XXXX) matches your instrument.
- Ensure you have the correct hex keys (.050, 3/32, 1/8) for bridge and hardware adjustments.
- Consult the wiring diagram before attempting any soldering or electronic modifications.
- Check the S-1 switch position if you are not getting the expected pickup combination.
Specs in practice
- HSS Configuration
- Refers to the pickup layout: Humbucker (bridge), Single-coil (middle), Single-coil (neck).
- L.S.R. Roller Nut
- A specialized nut assembly designed to reduce friction and improve tuning stability during tremolo use.
Images and diagrams
- Page 1: Exploded parts layout with reference numbers.
- Page 4: Pickup wiring schematic showing connections to the 5-way switch and S-1 volume.
- Page 5: Detailed wiring view showing specific wire colors and solder points.
- Page 6: Switch and control function matrix for all pickup combinations.
Model compatibility
- Parts are specific to the American Deluxe Stratocaster HSS Shawbucker (011911XXXX).
- Bridge components are specific to the Ultra/Deluxe Stratocaster series.
Manual page author
David Miller
Documentation analyst
Organizes user manual content into clear summaries, with attention to model details, product context, and everyday usability.
