Flomasta 1400MM Steel Panel Radiator Installation Guide
Comprehensive installation and maintenance guide for the Flomasta 1400MM steel panel radiator, including mounting instructions, safety precautions, and technical specifications.
Table of contents
Quick guide from the manual
This document provides essential instructions for the installation and maintenance of Flomasta steel panel radiators. Before starting, ensure all parts are present and the wall is suitable for the radiator's weight. The radiator must be installed by a qualified professional in accordance with relevant standards. It is designed for closed central heating systems and must be used with a chemical corrosion inhibitor.
Safety
- Keep children and vulnerable persons away from the radiator during and after installation.
- Do not use in outdoor areas or where ambient temperature may fall below 0°C.
- Do not hang heavy objects on the radiator or lean against it.
- Ensure the radiator is isolated from the central heating system before any work.
- Use appropriate PPE during installation.
Assembly
- Identify the required brackets and fixings based on the radiator type (T11, T21, T22).
- Mark the wall positions for the brackets using a level.
- Drill 8mm holes at the marked positions and insert the provided wall plugs.
- Secure the brackets to the wall using the provided screws.
- Mount the radiator onto the brackets.
- Install the radiator valve and bleed plug.
First use and operation
To put the radiator into service, open the radiator valve and ensure the central heating system is operating. If the radiator does not heat up, bleed the air from the system using the bleed valve until water flows out.
Care and maintenance
Clean the surface with a soft, damp cloth. Never use solvents, scourers, abrasives, bleach, acids, or strong detergents, as these can damage the finish. When disposing of the radiator, it should be taken to a metal recycling center.
Technical data
The radiators comply with EN 442 and are manufactured under ISO 9001 and ISO 14001 standards. The maximum operating pressure is 10 bars, and the maximum operating temperature is 120°C.
Manufacturer information
Flomasta
Practical help
Common problems
Radiator does not get warm
Ensure the central heating system is operating and bleed the air from the radiator using the bleed valve until water comes out.
Corrosion inside the radiator
Always use a chemical corrosion inhibitor in the water circuit and ensure the system is not exposed to frequent fresh oxygenated water.
Before use
- Verify all parts are present and undamaged.
- Ensure the wall is solid (e.g., masonry) or reinforced if using hollow walls.
- Check for hidden pipes or wires before drilling.
- Ensure the central heating system is isolated.

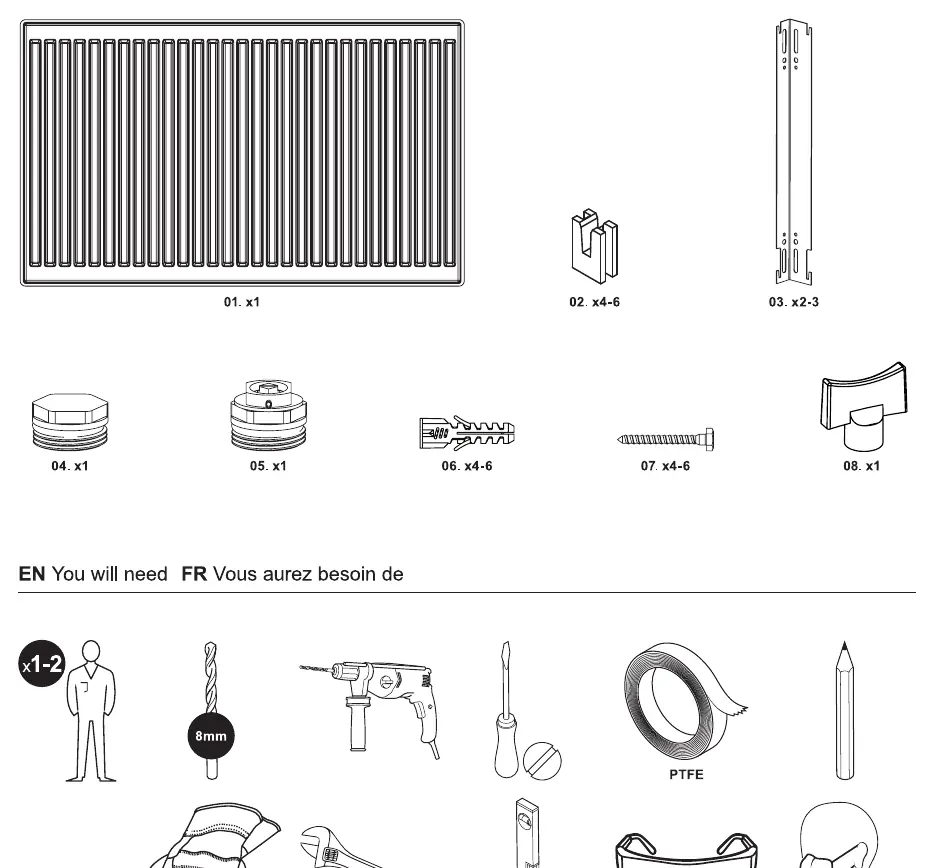

- Have necessary tools ready: drill, 8mm bit, level, wrench, PTFE tape, pencil, and PPE.
Specs in practice
- Max Operating Pressure
- 10 Bars - Do not exceed this pressure to prevent damage.
- Max Operating Temperature
- 120°C - The system must not exceed this temperature.
Images and diagrams
- Page 7 shows the wall-to-radiator clearance distances for different types (T11, T21, T22).
- Page 8 illustrates the drilling and bracket mounting sequence.
- Page 10 shows the correct placement of the bleed plug and radiator valve.
Model compatibility
- Not suitable for direct central heating systems (e.g., kitchen/bathroom taps).
- Must be used with a chemical corrosion inhibitor.
- Requires a thermostatic radiator valve (not supplied) for temperature control.
