FMS 1800mm Ranger RC Airplane Instruction Manual

Product Overview

The FMS 1800mm Ranger is a high-performance RC airplane designed for both beginners and experienced pilots. It features a durable EPO foam construction, STOL (Short Take-Off and Landing) capabilities, and functional flaps. The model is equipped with a powerful 3541-750KV brushless motor and a 45A ESC, providing excellent flight characteristics and low-speed handling.

Technical Specifications

• Wingspan: 1800mm
• Overall Length: 1335mm
• Flying Weight: ~2180g
• Motor: 3541-KV750
• ESC: 45A
• Servos: 17g x 6
• Recommended Battery: 14.8V 3300mAh-4000mAh 35C Li-Po

Safety Precautions

This is a sophisticated hobby product, not a toy. It must be operated with caution. Always keep a safe distance from people, traffic, and buildings. Never operate in populated areas. Handle Li-Po batteries with extreme care: never leave charging batteries unattended, use only a Li-Po compatible charger, and never discharge cells below 3V. Store batteries in a cool, dry place.

Assembly and Setup

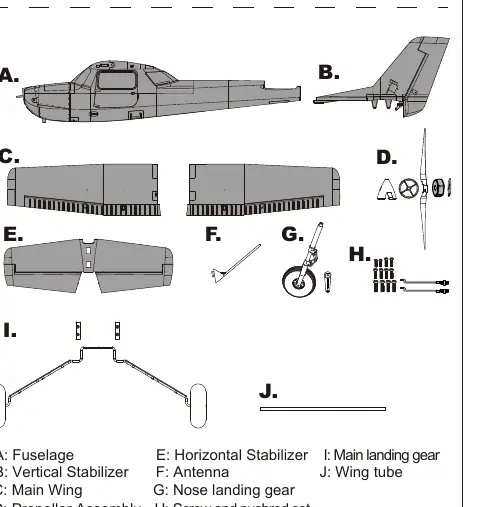

The Ranger features a straightforward, screw-together assembly. Key steps include installing the nose and main landing gear, attaching the horizontal and vertical stabilizers, mounting the main wings with struts, and installing the propeller. Ensure all control surfaces are centered and move in the correct direction before flight. The recommended Center of Gravity (CG) is 75-85mm from the leading edge of the main wing.

Flight and Maintenance

Always perform a ground range check before the first flight of the day. Choose a wide-open space, preferably a sanctioned flying field. During takeoff, apply power slowly to keep the model straight. Monitor flight time using a timer; a conservative 4-minute limit is recommended for the first flight. After landing, inspect the aircraft for damage and ensure all screws are tightened. Repairs to the foam should be made using foam-safe adhesives.

Troubleshooting

If the aircraft fails to respond to throttle, ensure the ESC is armed and the throttle channel is not reversed. For reduced flight time or power, check the battery charge and propeller orientation. If control surfaces are slow or unresponsive, inspect linkages and wiring for damage or loose connections.
