Ford Safety Recall 22S06 Service Instructions for Mustang
Official Ford service instructions for Safety Recall 22S06, covering luggage compartment lid wiring inspection and rear view camera repair for 2015-2017 Mustang models.
Quick answers from the manual
Quick answer
- This document provides service instructions for Ford Safety Recall 22S06, addressing luggage compartment lid wiring harness damage and rear view camera issues in 2015-2017 Mustang vehicles. p. 1
Key actions
- Inspect luggage compartment lid wiring harness for damage or chafing. p. 14, 21, 36
- Replace rear view camera if part number is not FR3T-19G490-AH (2015 models). p. 13
Problems and fixes
Intermittent rear view camera operation
Inspect wiring harness for damage or chafing; replace camera if part number is not FR3T-19G490-AH.
p. 1Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Torque | 12 Nm | Ground bolt installation | p. 37 |
Where to find it in the PDF
- Recall Notice p. 1, 2
- Labor Allowances p. 6, 7, 8, 9
- Service Procedure p. 13, 14, 15, 16
Table of contents
Manual images
Click an image to enlargeRecall Overview
This document provides official service instructions for Ford Safety Recall 22S06, which addresses issues with the luggage compartment lid wiring harness and rear view camera function in certain 2015-2017 Mustang vehicles. Damage to the wiring harness in the area of the right-side luggage compartment lid hinge may lead to intermittent rear view camera operation, loss of satellite radio reception, or inoperative luggage compartment lamp/release.
Service Action
The service procedure involves inspecting the vehicle build date, checking the rear view camera part number (for 2015 models), and inspecting the luggage compartment lid wiring harness for damage or chafing. If damage is found, the harness must be repaired or a jumper harness installed.
Camera Inspection (2015 Models)
- Verify if the vehicle was built between May 12, 2014, and February 28, 2015.
- If applicable, remove the rear parking aid camera and inspect the engineering part number on the back.
- If the part number is not FR3T-19G490-AH, the camera must be replaced.
Wiring Harness Inspection and Repair
- Access the luggage compartment lid wiring harness by removing the emergency release handle, latch cover, and trim panel.
- Disconnect the negative battery cable before proceeding.
- Inspect the exposed wiring harness for signs of damage or chafing.
- If damage is found, cut out the damaged section and splice in the replacement harness section using the specified wiring splice kits (3U2Z-14A088-AB).
- Use solder for all connections; do not use wire crimps.
- Wrap the spliced area with Coroplast 837 electrical wire harness tape or equivalent.

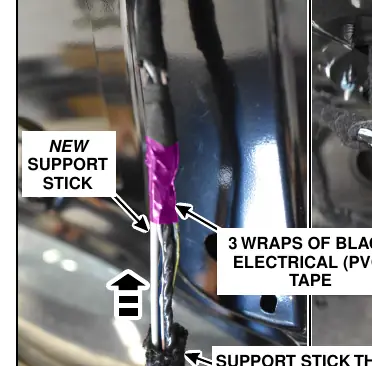

- Secure the replacement harness using the provided clips and support sticks as detailed in the specific procedure for Coupe or Convertible models.
- Re-wrap the harness using the specified fleece and electrical tapes to ensure proper protection.
Technical Specifications and Requirements
- Torque: 12 Nm (106 lb. in) for the electrical ground bolt installation.
- Wiring Protection: Use Coroplast 837 or equivalent electrical wire harness tape, Tesa 51608 PET Fleece tape, and KTI73510 or equivalent black electrical (PVC) tape.
- Parts: Specific jumper harnesses and splice kits are required based on the vehicle configuration (Coupe vs. Convertible).
Manufacturer information
Ford Motor Company
Practical help
Common problems
Intermittent rear view camera operation
Inspect wiring harness for damage or chafing; replace camera if part number is not FR3T-19G490-AH (2015 models).
Inoperative luggage compartment lamp or release
Inspect luggage compartment lid wiring harness for damage or chafing.
Loss of satellite radio reception
Inspect luggage compartment lid wiring harness for damage or chafing.
Before use
- Verify vehicle build date
- Check warranty and customer pay history for previous TSB 18-2362 or 19-2273
- Obtain required wiring splice kits (3U2Z-14A088-AB)
- Ensure availability of Coroplast 837, Tesa 51608, and KTI73510 tapes
Show more Show less
Specs in practice
- Camera Part Number
- FR3T-19G490-AH is the correct part; replace if different on 2015 models.
Images and diagrams
- Figure 1: Rear parking aid camera identification
- Figure 15/39: Example of damaged wiring harness

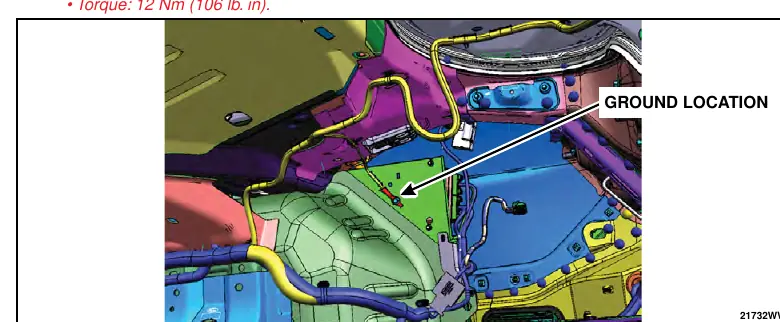

- Figure 41: Ground location for harness repair
Model compatibility
- Applies to 2015-2017 Mustang vehicles.
- Procedures differ between Coupe and Convertible models.
- 2015 models require additional camera part number verification.
