User Manual for FOS Hydor 120W RGBL Stage Light

Quick guide from the manual

The FOS Hydor 120W RGBL is a professional stage lighting fixture. This manual provides essential safety, installation, and operational guidelines. Always ensure the fixture is properly grounded (Protection Class 1) and never plug it into a dimmer pack. During initial operation, a light smoke or smell may occur; this is normal as excess paint burns off. Allow the fixture to cool for 15 minutes before servicing.

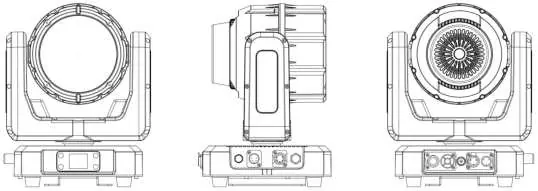

Device Overview

The fixture features a system menu LCD display, DMX input/output ports (3-pin and 5-pin), power input/output, and a fuse. Refer to the device diagram for the exact location of these components.

Installation Guidelines

Installation must be performed by qualified personnel. Follow these critical safety steps:

• Maintain a minimum distance of 3.3 feet (1 meter) from surfaces/objects.
• Keep flammable materials at least 1.6 feet (0.5 meters) away.
• Ensure the mounting structure is certified to hold the weight of the fixture and accessories.
• Always use a secondary safety attachment (safety cable) for overhead rigging.
• Ambient operating temperature must be between -4°F and 113°F (-20°C to 45°C).
• Ensure all connections are sealed with dielectric grease to prevent corrosion.

System Menu

The system menu allows for configuration of the following:

• Control: DMX Address (001-512), Channel Mode (12CH/22CH), Signal Select, and Wireless settings.
• Settings: Display options, Key Lock, DMX Fault behavior (Hold/Blackout), Dimmer Speed, Dimmer Curve, LED Frequency, Fan Mode, and Calibration settings.
• Information: View error info, temperature, firmware version, and UID.

DMX Channel Mapping

The fixture supports a 12CH DMX mode. Key channels include:

• 1CH: Pan (540°)
• 2CH: Tilt (230°)
• 3CH: Zoom
• 4CH: Dimmer
• 5CH: Strobe effects
• 6CH-9CH: RGB and L (Lime) color control
• 10CH: Color Temperature (1800K-8000K)
• 11CH: Color Macros
• 12CH: System functions (Reset, Fan control, etc.)

Maintenance and Cleaning

Regular maintenance is required to ensure longevity:

• Cleaning: Periodically clean the external lens with a soft cloth. Never use alcohol, solvents, or ammonia-based cleaners.
• Inspections: Perform a detailed electric check every three months. Ensure all screws and fasteners are tight. Check for housing deformations and ensure power cables are free of damage.

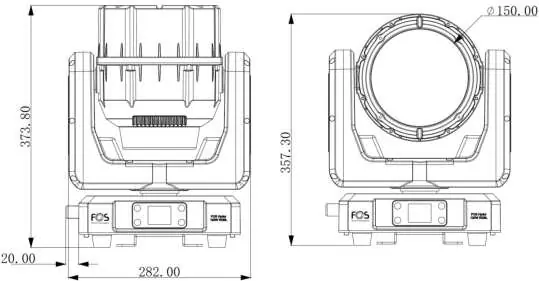

Technical Specifications

The FOS Hydor 120W RGBL features a 120W RGBL LED source with a 2500lm output. It includes a 140mm Fresnel lens with a 3.8 to 38-degree zoom range. The unit is IP65 rated, weighs 7 kg, and operates on 100-240V AC power.
