Assembly Instructions for Furniture of America Obera 3-Piece Coffee Table Set
A comprehensive assembly guide for the Furniture of America Obera 3-Piece Coffee Table Set. This guide provides step-by-step instructions for assembling the coffee table, end table, and sofa table, along with essential maintenance and...
Quick answers from the manual
Quick answer
- The Furniture of America Obera 3-Piece Coffee Table Set requires assembly by two people. Use the included Allen wrench to secure the base, legs, and frame with the provided bolts and washers. p. 1, 8, 15
Key actions
- Check and tighten all hardware every six months to prevent wobbling and potential collapse. p. 4, 11, 18
- Always lift the furniture when moving it; do not drag it. p. 7, 14, 21
Problems and fixes
Furniture is wobbly or unstable
Ensure the furniture rests on an even and flat surface. Double-check that all bolts and screws are properly tightened.
p. 7, 14, 21Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bolt (Coffee/End Table) | 5/16" x 1-3/4" | Hardware size for assembly | p. 5, 12 |
| Bolt (Sofa Table) | 5/16" x 2" | Hardware size for assembly | p. 19 |
Where to find it in the PDF
- Coffee Table Assembly p. 1, 7
- End Table Assembly p. 8, 14
- Sofa Table Assembly p. 15, 21
Table of contents
Manual images
Click an image to enlargeImportant Information
The Furniture of America Obera 3-Piece Coffee Table Set requires assembly. It is highly recommended that two people perform the assembly to avoid injury or damage. The assembly process is rated as easy. An Allen wrench is included in the hardware kit. Always lift the furniture when moving it; do not drag it across the floor.

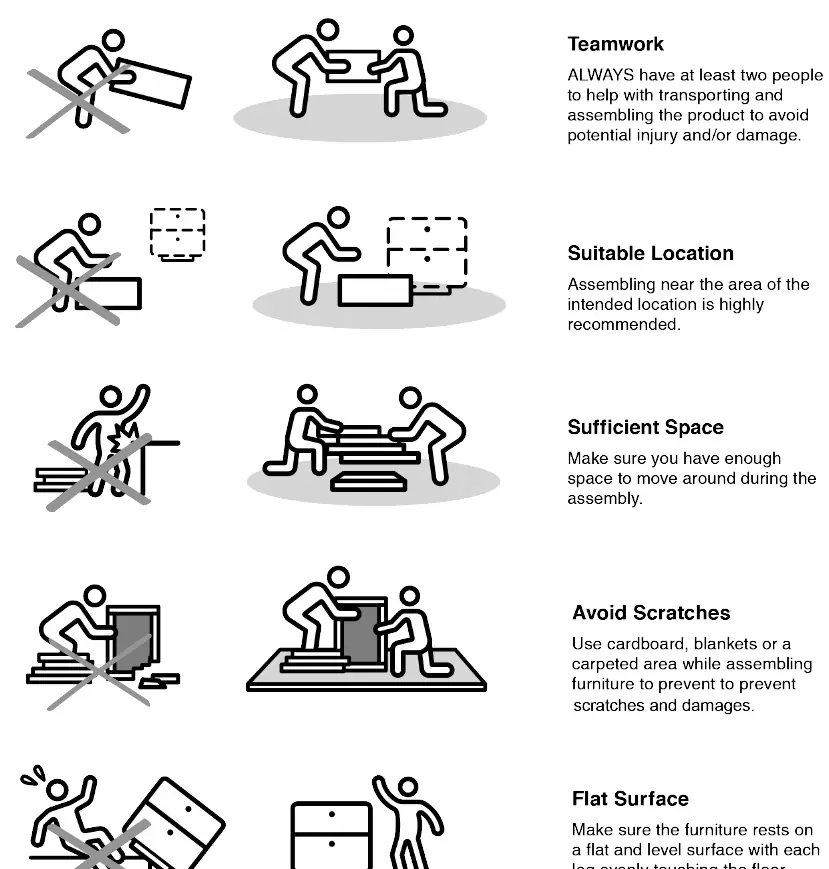

Pre-Assembly Preparation
Before beginning, ensure you have sufficient space to work. It is recommended to assemble the furniture near its intended location. Use a flat surface and protect the floor or furniture with cardboard or blankets to avoid scratches. Check all parts and hardware against the provided lists to ensure nothing is missing.

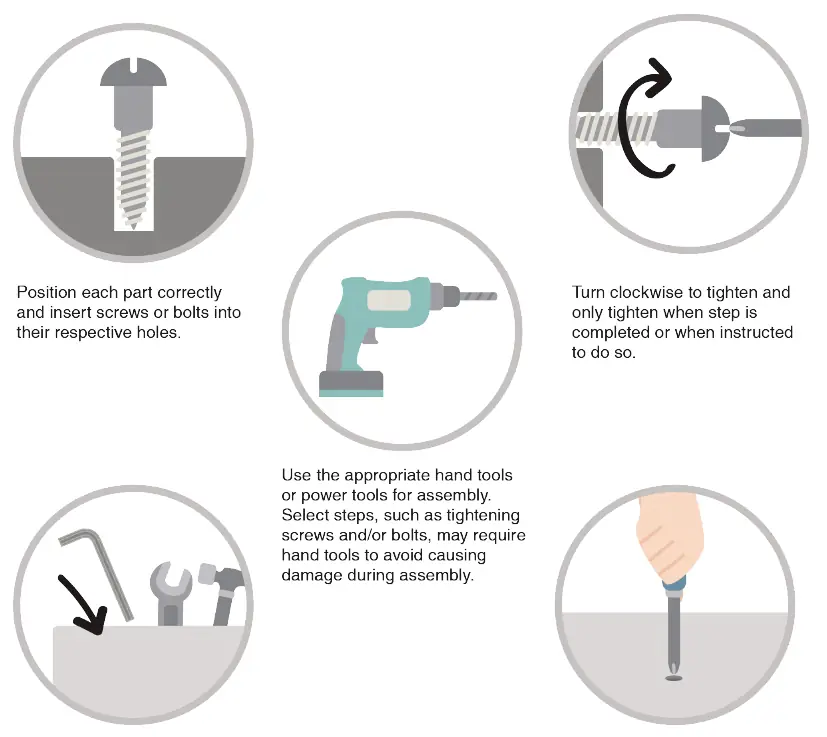

Assembly Advice
Follow these guidelines to ensure a stable and safe assembly:
- Position each part correctly and insert screws or bolts into their respective holes.
- Use appropriate hand tools or power tools.
- Turn clockwise to tighten bolts. Only tighten fully when the step is completed or instructed.
- After two weeks, check and tighten any loose hardware. Repeat this maintenance every six months.

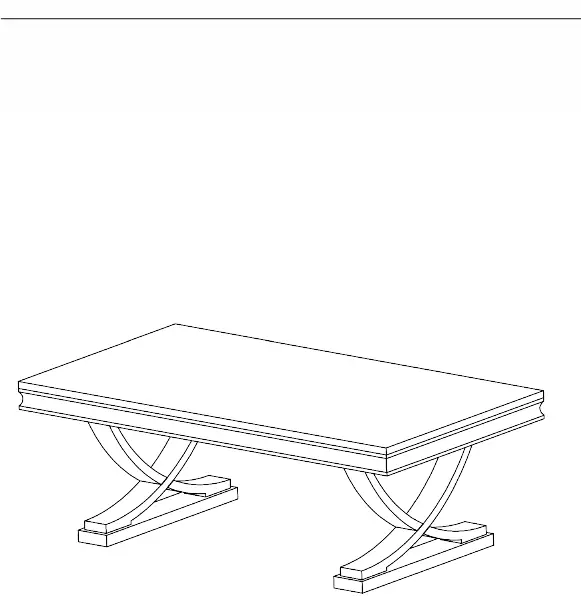

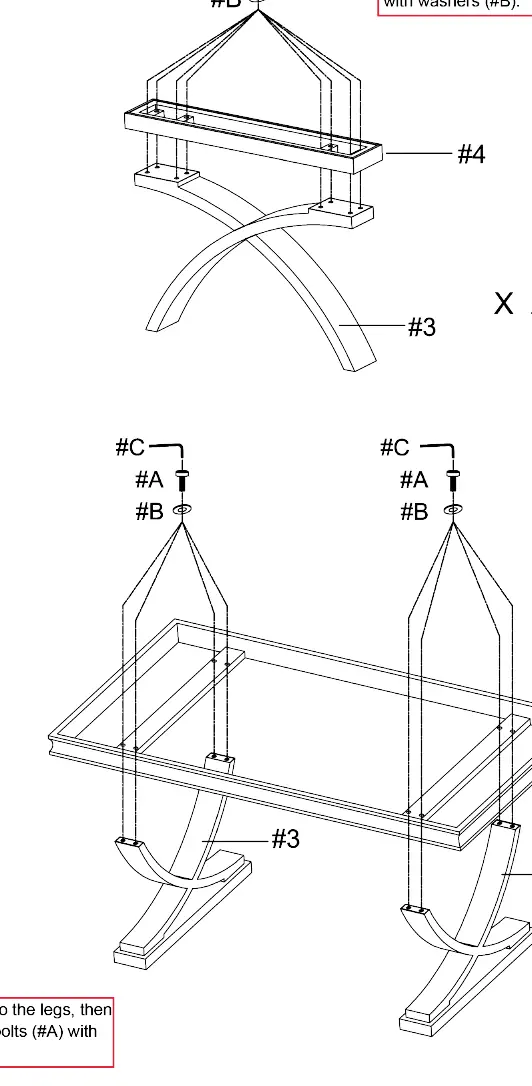

Coffee Table Assembly
The coffee table assembly involves the following steps:
- Base and Legs: Align the base (#4) to the legs (#3) and secure using bolts (#A) with washers (#B).
- Frame: Align the table frame (#2) to the legs and secure using bolts (#A) with washers (#B).
- Pads: Attach pads (#D) onto the frame.
- Top Panel: Place the top panel (#1) onto the assembled frame.

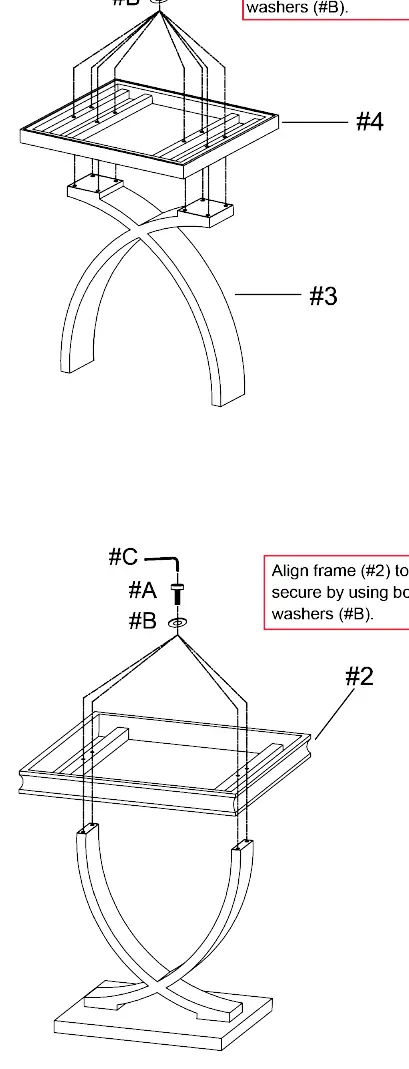

End Table Assembly
The end table assembly follows a similar process:
- Base and Legs: Align the base (#4) to the legs (#3) and secure using bolts (#A) with washers (#B).
- Frame: Align the table frame (#2) to the legs and secure using bolts (#A) with washers (#B).
- Pads: Attach pads (#D) onto the frame.
- Top Panel: Place the top panel (#1) onto the assembled frame.

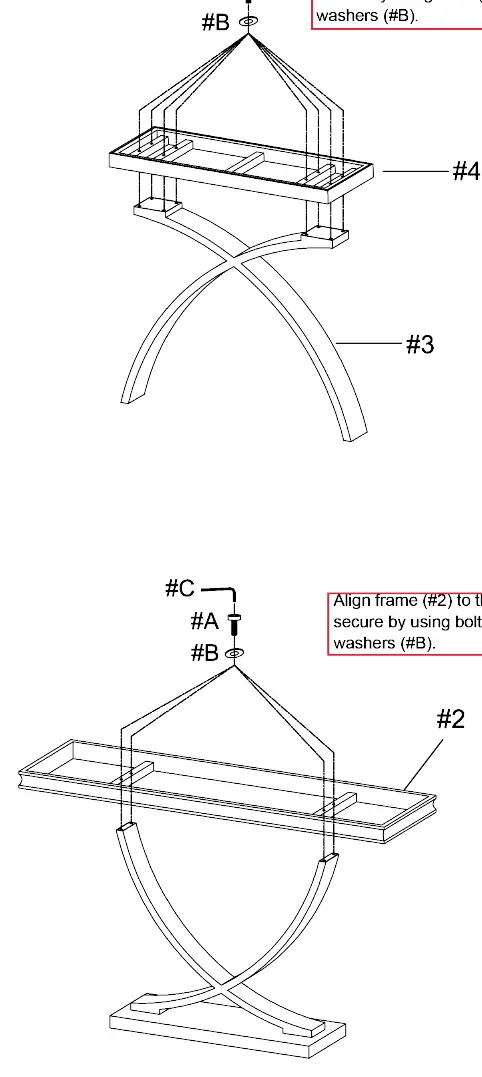

Sofa Table Assembly
The sofa table assembly follows the same process:
- Base and Legs: Align the base (#4) to the legs (#3) and secure using bolts (#A) with washers (#B).
- Frame: Align the table frame (#2) to the legs and secure using bolts (#A) with washers (#B).
- Pads: Attach pads (#D) onto the frame.
- Top Panel: Place the top panel (#1) onto the assembled frame.
Maintenance and Care
It is the user's responsibility to maintain the furniture. Hardware may loosen over time, which can cause the furniture to become wobbly and unable to support its intended weight capacity. This may lead to collapse and serious injury. Regularly inspect and tighten all hardware.
Practical help
Common problems
Furniture feels wobbly
Ensure the furniture is on a flat, level surface and check that all bolts are properly tightened.
Missing parts or hardware
Double-check all packaging and hardware lists before starting. Contact the manufacturer for replacements if items are missing or flawed.
Before use
- Verify all parts and hardware are accounted for.
- Clear sufficient space for assembly.
- Ensure you have a second person to assist with lifting and assembly.
- Prepare a flat, protected surface (e.g., carpet or cardboard) to prevent scratches.
- Review all assembly diagrams before starting.
Specs in practice
- Bolt 5/16" x 1-3/4"
- Used for Coffee Table and End Table assembly.
- Bolt 5/16" x 2"
- Used for Sofa Table assembly.
Images and diagrams
- Diagrams illustrate the alignment of the base (#4) to the legs (#3) and the frame (#2) to the legs.
- Arrows indicate the insertion points for bolts and washers.
Model compatibility
- The set includes three distinct tables: Coffee Table, End Table, and Sofa Table, each with specific hardware requirements.
