User Manual for GE Lighting Drake Square LED Flush Mount 12059L / 12060L
Quick guide for the GE Lighting Drake Square LED Flush Mount. Includes installation steps, wiring instructions, safety tips, and technical specifications for models 12059L and 12060L.
Table of contents
Quick guide from the manual
This document provides installation and safety instructions for the GE Lighting Drake Square LED Flush Mount. Important: This product must be installed by a licensed electrician. Using a dimmer switch with this fixture will void the warranty. The light source is not replaceable; when it reaches the end of its life, the entire luminaire must be replaced.
Installation requirements
- Professional Installation: Must be installed by a licensed electrician in accordance with local and national wiring rules.
- Location: Suitable for indoor use only. Ensure the mounting point can support twice the weight of the fitting.
- Environment: Do not install near air vent systems. In moist areas, ensure proper ventilation and use an exhaust fan if necessary.
- Pre-installation: Check for transport damage before installing. Do not install if damaged. Ensure power is switched OFF before starting.
Installation steps
- Remove all packaging material, ensuring no accessories are discarded.
- Remove the shade by pulling out the 4 brackets (Fig. A).
- Loosen the screw to remove the terminal block cover (Fig. B).
- Use the fitting as a template to mark screw positions on the ceiling.
- Install the fitting onto the ceiling using appropriate screws and anchors (Fig. C).
- Connect the mains supply wire to the terminal block (Fig. D).
- Reinstall the shade back onto the fitting (Fig. E).
- Turn ON the power.
Wiring instructions
Connect the mains supply wire to the terminal block as follows:
- Neutral: Blue or Black (Connect to Blue N)
- Earth: Yellow/Green (Connect to Yellow/Green)
- Live: Brown or Red (Connect to Brown L)
Ensure wires are secure and no bare wires are exposed before replacing the terminal block cover.
Safety and maintenance
- Always ensure the power is OFF and the fitting has cooled down before performing any maintenance or cleaning.
- To clean, wipe with a damp, clean cloth. Never soak the fitting in water.
- Ensure the fitting does not come into contact with corrosive chemicals.
- Verify that all power leads and screws are secure before connecting the power.
Technical specifications
- Model Numbers: 12059L, 12060L
- Rated Voltage: 200-240V~ 50Hz
- Rated Wattage: 12W
- Insulation Class: Class I
- Dimensions: 335mm (L) x 335mm (W) x 85mm (H)
- Weight: 0.69kg
- LED Specs: GuangPu LEDs (3000K/820lm for 12059L; 4000K/850lm for 12060L)
Practical help
Common problems
Dimmer switch usage
Do not use a dimmer switch; it will void the warranty.
Moisture damage
Ensure the area is well-ventilated. Damage or corrosion caused by moisture is not covered by warranty.
Missing parts
Return the complete product to the place of purchase for inspection or replacement.
Before use
- Ensure power to the circuit is switched OFF.
- Verify the mounting point can support 2 times the weight of the fitting.
- Check for transport damage before installation.
- Ensure a licensed electrician is available for installation.
- Confirm the installation location is indoors and not near an air vent.
Specs in practice
- Rated Wattage
- 12W power consumption.
- Insulation Class
- Class I, requires proper grounding.

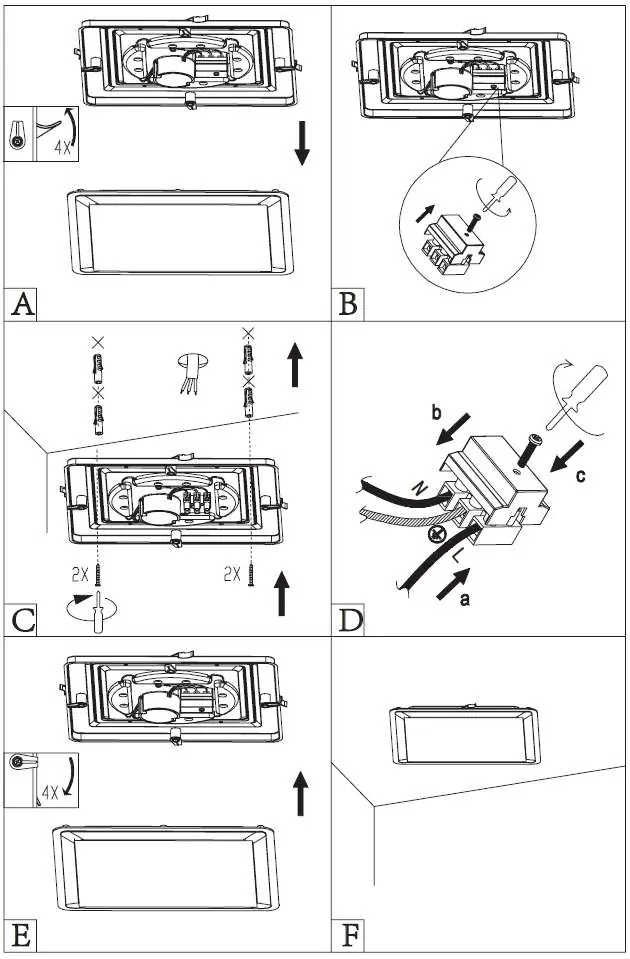

Images and diagrams
- Fig A: Removing the shade by pulling out the 4 brackets.
- Fig B: Accessing the terminal block by loosening the screw.
- Fig C: Mounting the base to the ceiling.
- Fig D: Wiring connections for Neutral, Earth, and Live.
- Fig E: Reinstalling the shade.
Model compatibility
- Not compatible with dimmer switches.
- Indoor use only.
- Light source is not replaceable.
