Globo Lighting 15698-4HB Pendant Lamp

Product Overview

The Globo Lighting 15698-4HB is a stylish pendant lamp designed for indoor ceiling installation. It features a multi-light design suitable for various interior spaces, providing both functional and aesthetic lighting.

Technical Specifications

The luminaire is designed for the following electrical parameters:

• Voltage: 230V ~ 50Hz
• Light Source: 4 x E27 sockets
• Maximum Power: 60W per socket

Safety Instructions

Before beginning any installation work, ensure that the power supply is completely disconnected at the main circuit breaker. Electrical installation should only be performed by qualified personnel in accordance with local safety regulations. Ensure all connections are secure and properly insulated.

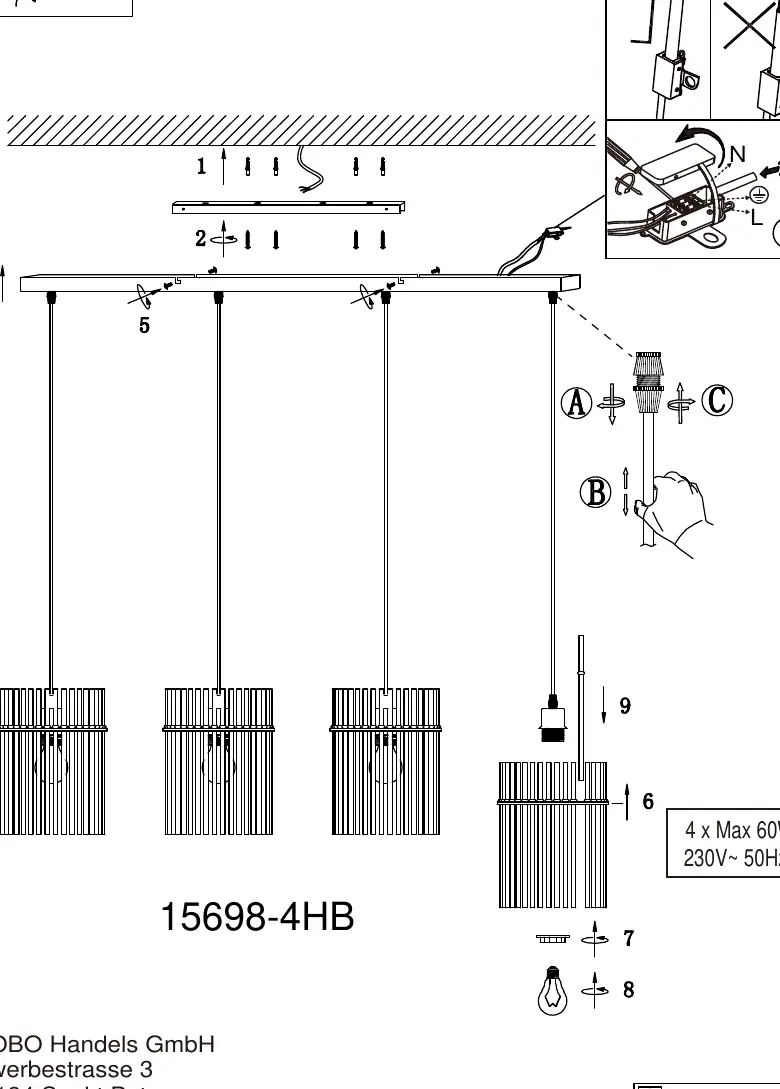

Installation Steps

Follow these steps to install the pendant lamp:

• Preparation: Turn off the power supply at the fuse box.
• Mounting: Secure the mounting bracket to the ceiling using appropriate hardware.
• Wiring: Connect the power supply wires to the terminal block, ensuring correct polarity (L for Live, N for Neutral, and Ground connection).
• Assembly: Attach the main fixture body to the mounting bracket. Adjust the cable lengths as needed to achieve the desired height for each pendant.
• Bulb Installation: Insert the E27 bulbs into the sockets. Ensure they are screwed in firmly but do not overtighten.
• Completion: Restore power at the circuit breaker and test the light.

Maintenance and Care

To maintain the appearance and functionality of the lamp, clean the surfaces regularly with a soft, dry cloth. Do not use abrasive cleaners or chemicals that could damage the finish. Always ensure the power is off before cleaning or replacing bulbs. If the lamp fails to operate, check the bulbs and the circuit breaker connection before seeking professional assistance.

Disposal

Dispose of the product and its packaging in accordance with local environmental regulations. Do not discard electrical components in household waste.
