Globo Lighting 15788-3H Pendant Lamp Instruction Manual

Product Overview

The Globo Lighting 15788-3H is a stylish three-light pendant fixture designed for indoor ceiling installation. It features a modern design suitable for various living spaces. The unit requires three E27 bulbs with a maximum wattage of 60W each.

Technical Specifications

• Model: 15788-3H
• Voltage: 230V ~ 50Hz
• Socket Type: 3x E27
• Maximum Power: 3x 60W

Safety Precautions

Important: Before starting any installation work, ensure that the main power supply is switched off at the circuit breaker. Electrical work should only be performed by qualified personnel. Ensure that all connections are secure and that the fixture is properly grounded to prevent electrical shock.

Installation Instructions

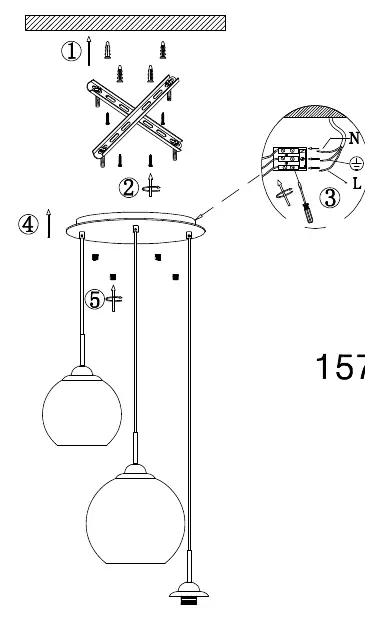

Follow these steps to install your pendant lamp:

• Ensure the power is turned off at the main fuse box.
• Mark and drill holes in the ceiling according to the mounting bracket dimensions.
• Secure the mounting bracket to the ceiling using appropriate screws and anchors.
• Connect the house wiring to the terminal block on the fixture, matching the Neutral (N), Ground, and Live (L) wires correctly.
• Attach the canopy to the mounting bracket and secure it with the provided nuts.
• Install the glass shades onto the lamp holders.
• Insert the E27 bulbs into the sockets.
• Restore power at the circuit breaker to test the fixture.

Maintenance and Care

To keep your pendant lamp in optimal condition, clean the metal surfaces and glass shades periodically with a soft, dry cloth. Do not use abrasive cleaners or chemicals that could damage the finish. Always ensure the power is off before cleaning. If the lamp fails to light, check the bulbs and ensure they are properly seated in the sockets. If the issue persists, consult a professional electrician.

Disposal

When the product reaches the end of its service life, dispose of it in accordance with local environmental regulations. Do not discard electrical components in household waste; use designated recycling facilities for electronic equipment.
