User manual for Harley Benton CPT-20 Floor Pedal Tuner

Quick guide from the manual

The Harley Benton CPT-20 is a chromatic floor tuner designed for musical instruments. To use the device, connect your instrument cable to the INPUT jack, connect a 9V DC power supply, and press the BYPASS switch to activate the tuning function. The device features a True Bypass circuit to ensure signal integrity when the tuner is not in use.

Safety instructions

• Intended use: This device is for tuning musical instruments only. Improper use may result in injury or damage.
• Electrical safety: The device contains high-voltage parts. Never remove covers. Do not use if covers or components are damaged.
• Ambient conditions: Operate only indoors within specified temperature (0°C to 40°C) and humidity ranges. Avoid direct sunlight, heavy pollution, strong vibrations, and temperature fluctuations.
• General handling: Do not exert force, immerse in water, or use liquid cleaners. Keep away from liquids and metallic objects.
• Children: Keep packaging and small parts away from children to prevent choking hazards.

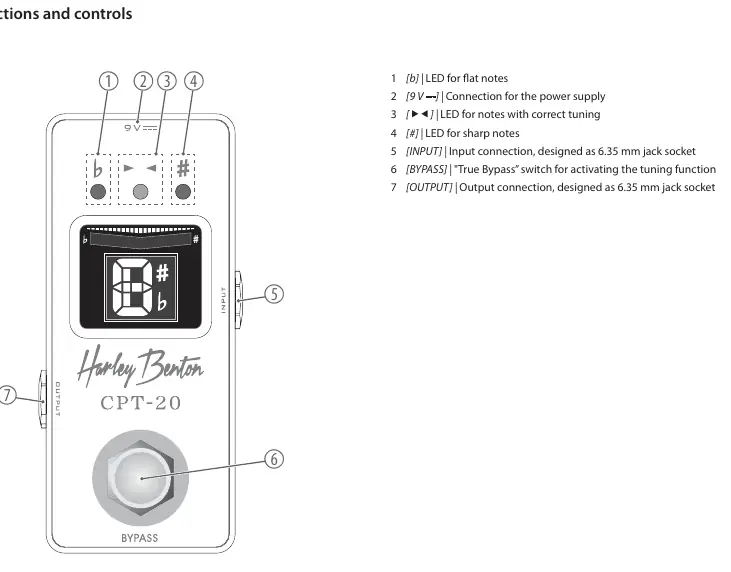

Connections and controls

The device features the following inputs and indicators:

• 1 [b]: LED for flat notes.
• 2 [9 V]: Connection for the power supply.
• 3 [LED]: LED for notes with correct tuning.
• 4 [#]: LED for sharp notes.
• 5 [INPUT]: 6.35 mm jack socket for instrument input.
• 6 [BYPASS]: Switch for activating the tuning function.
• 7 [OUTPUT]: 6.35 mm jack socket for signal output.

Operation

1. Connect the instrument cable to the INPUT jack.
2. Connect the cable of the optionally available power supply to the DC 9 V socket. The device will be in bypass mode.
3. Press the BYPASS switch to activate the tuning function.
4. Connect the rest of the signal chain to the OUTPUT jack.

Technical specifications

• Power supply: External power adapter, 100–240 V ~ 50/60 Hz.
• Operating voltage/current: 9 V DC / min. 33 mA, polarity: Centre negative.
• Frequency range: A (27.5 Hz) to C (4,168 Hz).
• Accuracy: ±1 cent.
• Dimensions (W × H × D): 46 mm × 49 mm × 95 mm.
• Weight: 112 g.
• Ambient conditions: Temperature 0 °C to 40 °C; Relative humidity 20% to 80% (non-condensing).

Disposal

This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE). Do not dispose of the device with normal household waste. Deliver it to an approved waste disposal firm or your local waste facility. Packaging materials should be recycled according to local regulations.
