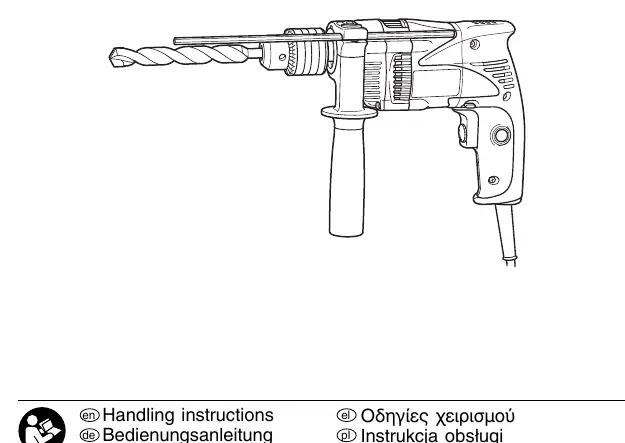

HiKOKI DV 16V Impact Drill

Product Overview

The HiKOKI DV 16V is a high-performance impact drill engineered for both professional and DIY applications. It features a dual-mode operation, allowing for efficient drilling in hard materials like concrete, marble, and granite using the impact function, as well as standard rotational drilling for metal, wood, and plastic.

Safety Precautions

General Safety: Always keep your work area clean and well-lit. Do not operate power tools in explosive atmospheres. Keep children and bystanders away during operation.

Electrical Safety: Ensure the power tool plug matches the outlet. Do not modify the plug. Avoid body contact with earthed surfaces to reduce the risk of electric shock. Use an RCD-protected supply if working in damp locations.

Personal Safety: Stay alert and use common sense. Wear personal protective equipment, including eye and ear protection. Avoid unintentional starting by ensuring the switch is in the off-position before connecting to a power source.

Operation

• Drilling: Start slowly and gradually increase speed. Apply pressure in a straight line with the drill bit.
• Impact vs. Rotation: Use the impact mode for hard materials. Use rotation-only mode for metal, wood, and plastic to prevent damage to the drill bit.
• Handling: Hold the tool firmly with both hands using the main handle and the auxiliary side handle.

Maintenance and Inspection

• Drill Bits: Replace or resharpen abraded drill bits immediately to maintain efficiency and prevent motor strain.
• Mounting Screws: Regularly inspect all screws and ensure they are properly tightened.
• Motor Maintenance: Keep the motor winding clean and free from oil or water.
• Carbon Brushes: Inspection and replacement of carbon brushes must be performed exclusively by a HiKOKI Authorized Service Center.

Troubleshooting and Disposal

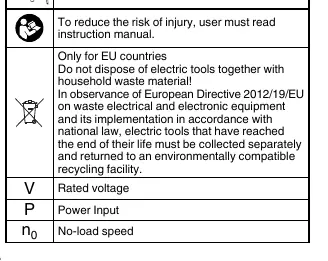

If the drill stalls, release the trigger immediately and remove the bit from the workpiece. Do not repeatedly click the trigger to restart a stalled tool. Dispose of the tool in accordance with local regulations, specifically the European Directive 2012/19/EU for waste electrical and electronic equipment.
