HiKOKI CJ 160V Cordless Jigsaw

Product Description

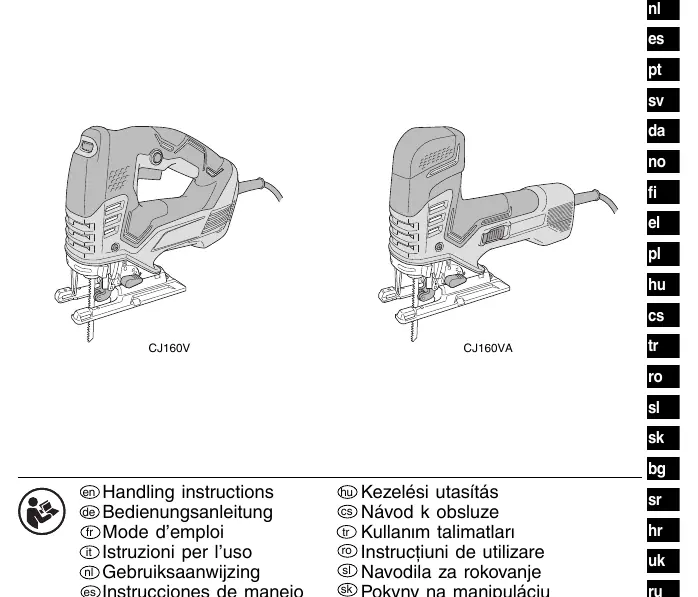

The HiKOKI CJ 160V and CJ 160VA are high-power jigsaws engineered for versatile cutting applications. They are suitable for cutting lumber, mild steel, aluminum, copper, and synthetic resins. The tools feature a high-power motor and two operating modes: Standard Mode (manual speed control) and AUTO Mode (automatic speed adjustment based on workload to reduce vibration and noise).

Technical Specifications

• Power Input: 800 W
• Max. Cutting Depth: 160 mm (wood), 10 mm (mild steel)
• No-load Speed: 800 – 2800 min-1
• Stroke: 26 mm
• Weight: 2.5 kg

Safety

Always follow general power tool safety warnings. Ensure the work area is clean and well-lit. Wear personal protective equipment, including eye protection and a dust mask. Ensure the power switch is in the OFF position before connecting to a power source. Hold the tool by insulated gripping surfaces when cutting near hidden wiring.

Operation

To change blades, ensure the tool is switched OFF and unplugged. Ensure the blade is properly inserted into the blade holder and positioned within the roller groove. For accurate cutting with the guide, set the orbital position to 0. When cutting small circular arcs, reduce the feeding speed to prevent blade breakage.

Maintenance

Regularly inspect the blade for dullness or damage and replace it if necessary. Inspect all mounting screws to ensure they are properly tightened. The motor unit winding is the heart of the tool; ensure it does not become damaged or wet. Carbon brush inspection and replacement should only be performed by a HiKOKI Authorized Service Center.

Troubleshooting and Disposal

If the tool malfunctions, have it repaired by a qualified professional. Do not dispose of electric tools with household waste; follow local regulations for environmentally compatible recycling.
