Hilti SF 10W-22 Cordless Drill Driver User Manual
Comprehensive user manual for the Hilti SF 10W-22 cordless drill driver, covering safety instructions, operation, maintenance, and troubleshooting.
Table of contents
Manual images
Jump to the sectionProduct Overview
The Hilti SF 10W-22 is a professional-grade, hand-held cordless drill driver designed for driving and removing screws, as well as drilling into steel, wood, and plastic. It features a 4-speed gear selector, a 15-stage torque adjustment ring, and an integrated LED work-area light.
Safety Instructions
Before use, read all safety warnings and instructions provided in the manual. This tool is intended for professional use by trained, authorized personnel only. Always wear personal protective equipment, including eye protection, a hard hat, and hearing protection. Ensure the auxiliary handle is correctly mounted and securely tightened before operation. Be aware of high torque output; brace the tool properly during use. Avoid contact with rotating parts and keep air vents clear to prevent overheating.
Operation
To operate, ensure the battery is fully charged and securely inserted. Use the gear selector switch to choose between four speed settings (only when the motor is at a standstill). The forward/reverse switch includes a switch-on interlock in the middle position. Speed is controlled steplessly via the control switch.
Battery Management
The tool uses Hilti Nuron Li-ion batteries (B 22 series). Battery status, charge level, and fault messages can be checked by pressing the release button on the battery. If the battery is too hot to touch, it may be defective; allow it to cool in a non-flammable area.
Maintenance
Always remove the battery before performing any care or maintenance. Clean the housing with a slightly damp cloth and keep air vents free of debris using a dry, soft brush. Do not use silicone-based cleaning agents. Repairs to electrical components must be performed only by trained electrical specialists using original Hilti spare parts.
Troubleshooting
If the tool fails to operate, ensure the battery is fully inserted. If the control switch is locked, check the forward/reverse switch position. For persistent issues, such as overheating or battery faults, contact Hilti Service.
Manufacturer information
Hilti Corporation
Practical help
Common problems
Control switch is locked or cannot be pressed.
Ensure the forward/reverse switch is not in the middle (locked) position.
Product does not function.
Check that the battery is fully inserted and engaged with an audible click.
Battery drains faster than usual.
This may be due to very low ambient temperatures; allow the battery to warm up slowly to room temperature.
Strong heat development in the product or battery.
Switch off immediately, remove the battery, allow it to cool, and contact Hilti Service.
Before use
- Read all safety warnings and instructions.
- Ensure the battery is fully charged.
- Check that the auxiliary handle is correctly mounted and tightened.
- Verify that the accessory tool is clean and securely held in the chuck.
- Check the work area for concealed electrical cables or gas/water pipes.
- Ensure the battery is correctly engaged in the tool.
Specs in practice
- Torque range
- 15 settings (1.5 Nm to 12 Nm) for precise control when driving screws.
- Speed settings
- 4 gears ranging from 0-330 rpm up to 0-2230 rpm for various drilling and screwdriving applications.
- Drilling capacity
- Up to 50mm in softwood, 20mm in hardwood, and 13mm in metal.

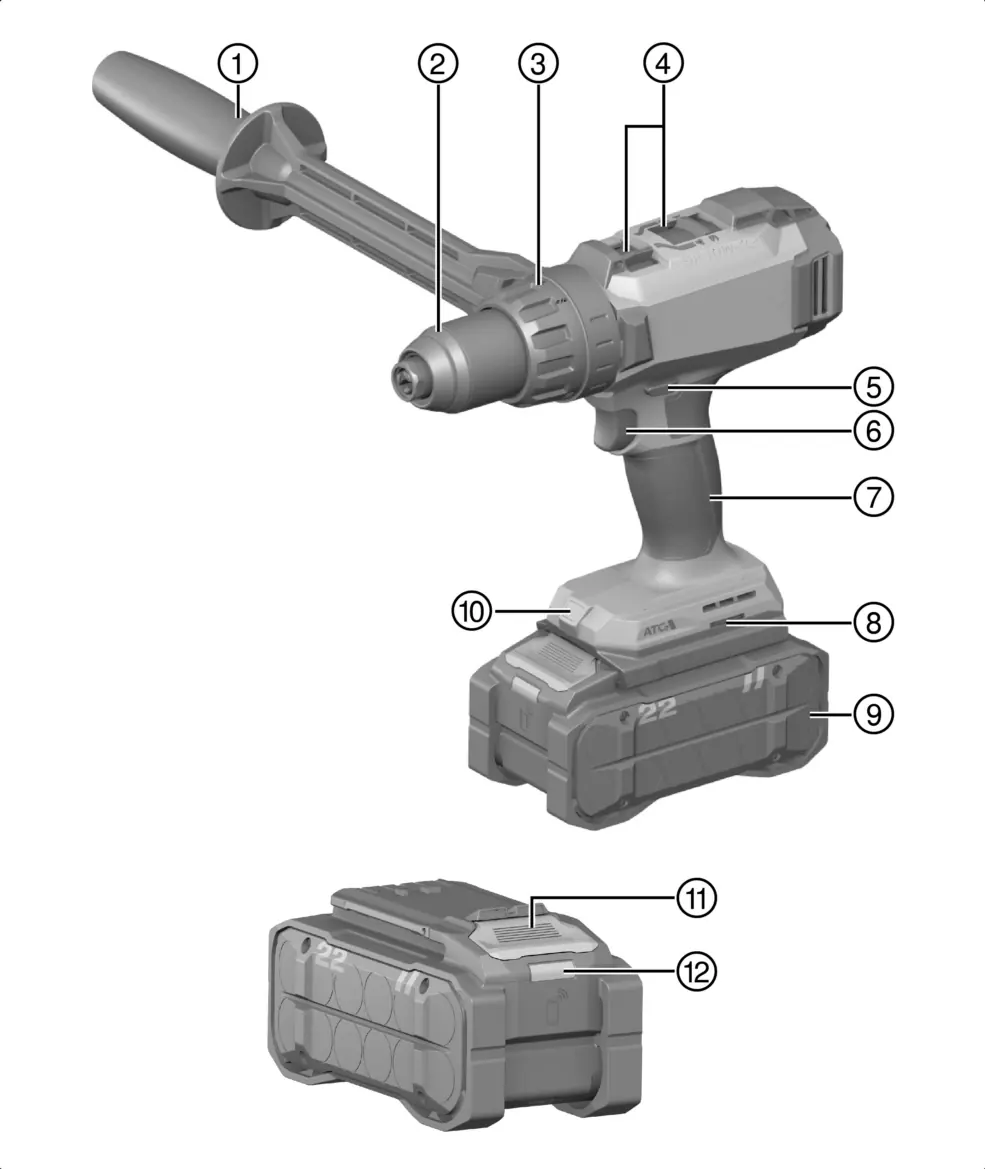

Images and diagrams
- 1: Auxiliary handle
- 2: Keyless chuck
- 3: Torque and drilling mode selector ring
- 4: Gear selector switch
- 5: Forward/reverse switch with switch-on interlock
Model compatibility
- Use only Hilti Nuron Li-ion batteries of the B 22 series.
- Use only Hilti chargers approved for the B 22 series batteries.
