Home Accents Holiday 120in 440 Light LED Nativity Scene Assembly and Use Guide

Quick guide from the manual

This document provides assembly and care instructions for the 120in 440 Light LED Nativity Scene. Assembly requires a flat surface and may necessitate more than one person. Before starting, identify all parts using the provided parts list. Do not attempt assembly if any components are missing or damaged.

Safety and Pre-Operation

• Grasp the plug to insert or remove from the power source; do not pull on the cord.
• The lighting string is rated at 44.4 Watts (0.37 Amps). Do not overload.
• Do not connect to other lighting strings or electrical products.
• Inspect the product before use; discard if there are cuts, frayed insulation, cracks in sockets, or loose connections.

Assembly

Follow these steps to assemble the Nativity Scene:

1. Support Bars and Base Stands: Stack and lock two segments of Support Bars (D2) and insert into Base Stands (D3) using Cotter Pins (T).
2. Stable Columns: Connect the top and bottom Left & Right Columns (C) using Bolts & Wingnuts (U). Attach to Base Stands (D3) with Cotter Pins (T) and secure with Plastic Ties (X).
3. Top of Stable: Attach the Top of Stable (B) to the columns using Bolts & Wingnuts (U). Secure the two roof sections together with Plastic Ties (X).
4. Stabilizing Bar and Star: Insert the Stabilizing Bar (D1) into the back of the Top of Stable (B) and insert the Star (A) into the front.
5. Mary: Assemble Mary's components (D4, F, E, G) and secure to the Base Stand (D3) using Cotter Pins (T).
6. Joseph: Assemble Joseph's components (I, J, D5, H, L, M, K, N) and secure to the Base Stand (D3) using Cotter Pins (T) and Plastic Ties (X).
7. Baby and Bed: Assemble the bed and baby components (Q, R, S, O, P, D6) and secure with Cotter Pins (T).

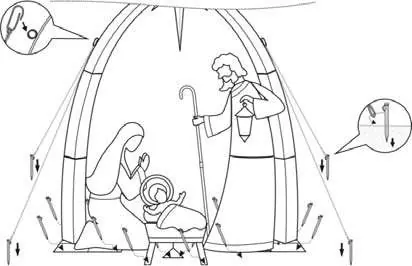

8. Securing to Ground: Use the Anchoring Strings (W) and Ground Stakes (V) to secure the stable and figures firmly to the ground.

Care and Cleaning

• Remove the product carefully to avoid strain on connections.
• If placed off the ground, ensure it is well-secured and stable.
• Wipe with a damp cloth and allow to dry before storing.
• Store in a cool, dry location protected from sunlight.

Guarantee

The product includes a 90-day limited guarantee for residential seasonal use. It does not cover commercial use, normal wear and tear, burnt-out bulbs/LEDs, batteries, unauthorized repairs, or damage from improper handling.
