Assembly and Care Guide for Homestyles 2001-301-FB02 Sofa

Quick Guide from the Manual

This sofa requires assembly using parts from two cartons: 2001-301-FB02 and 2001-302-FB02. Please ensure you have all parts before beginning.

Important Assembly Warnings

• Do not use power tools above 8 volts to assemble the unit to prevent cracking.
• Place all parts on a soft cloth during assembly to prevent scratches or damage.
• If parts are missing or damaged, contact Homestyles customer service within 1 year of purchase.

Parts List

• A: Base (1 pc)
• B: Foot (5 pcs)
• C: Side (1 pc)
• D: Side (1 pc)
• E: Back (1 pc)
• F: Seat Cushion (2 pcs)
• G: Back Cushion (2 pcs)

Assembly Instructions

Step 1 & 2: Base and Feet

Attach Base (A) to Side (C) by sliding the metal slots into position. Repeat this process to attach Side (D) to the unit. Once the frame is connected, attach the five Feet (B) to the unit and tighten them securely.

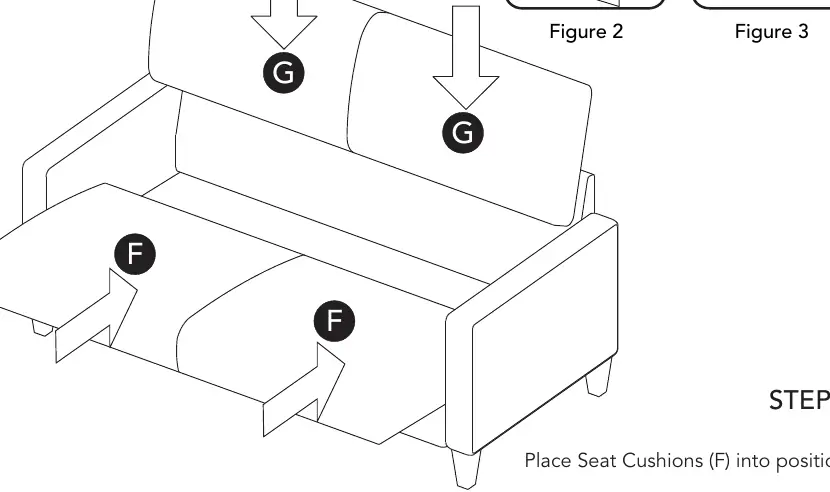

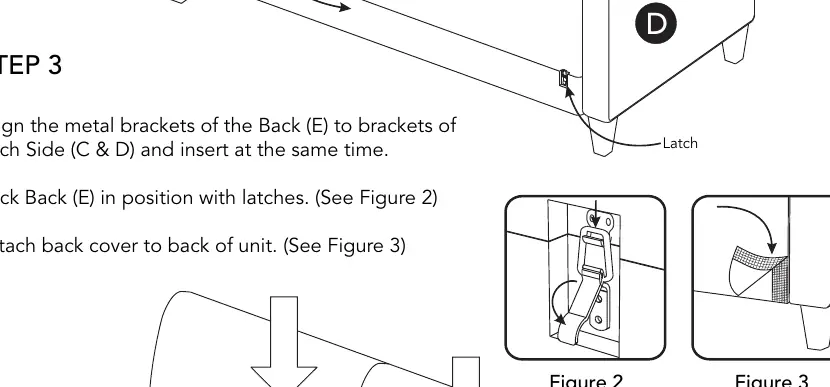

Step 3 & 4: Backrest and Cushions

Align the metal brackets of the Back (E) with the brackets on each Side (C & D) and insert them simultaneously. Lock the Back (E) into position using the latches. Attach the back cover to the back of the unit. Finally, place the Seat Cushions (F) and Back Cushions (G) into their designated positions.

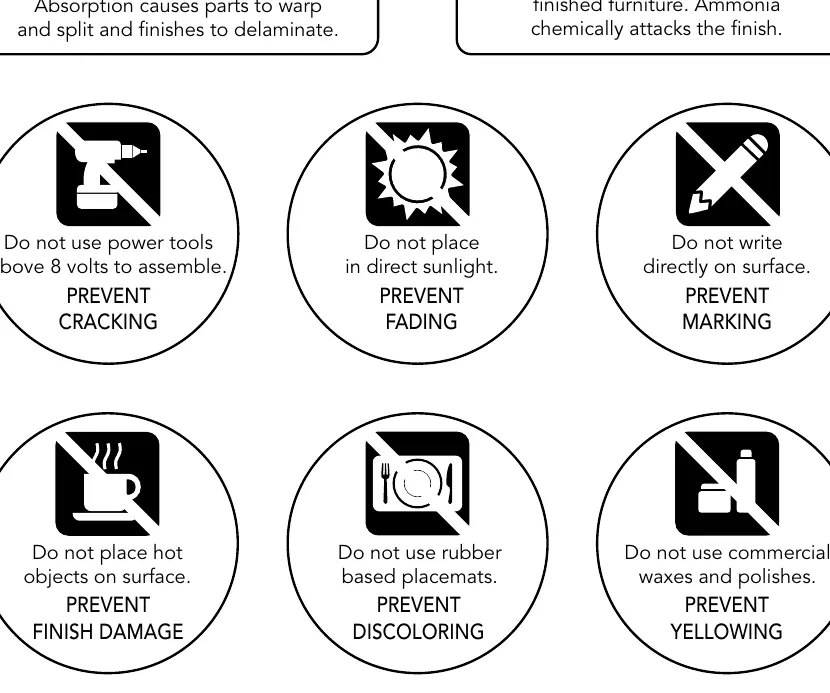

Care Instructions

To maintain the finish of your sofa, follow these guidelines:

• Cleaning: Use a soft cloth moistened in lukewarm soap and water. Buff with a dry, clean cloth.
• Do not use: Glass cleaners, ammonia, commercial waxes, or polishes.
• Avoid: Allowing liquids to remain on the furniture, placing hot objects on the surface, using rubber-based placemats, or writing directly on the surface.
• Environment: Do not place the sofa in direct sunlight to prevent fading.
