Installation Guide for Home Depot 2088-2-TIEPIAN Queen Pull Out Sofa Bed

Important Information

Do not return the product to the store if parts are missing or damaged. Please contact support via email at [email protected] for assistance. Important: Do not fully tighten bolts or nuts until the product is fully assembled. Keep all hardware out of reach of children.

Assembly Preparation

• Use proper tools for assembly.
• Follow the assembly steps in order; do not skip any steps.
• Check all parts and hardware quantities against the provided list before starting.
• Assemble on a clean, flat, and soft surface to prevent scratches.
• The assembly requires two or more people; do not attempt to assemble alone to avoid injury.
• Periodically check that all connectors (bolts, screws, etc.) are tight.

Assembly Steps

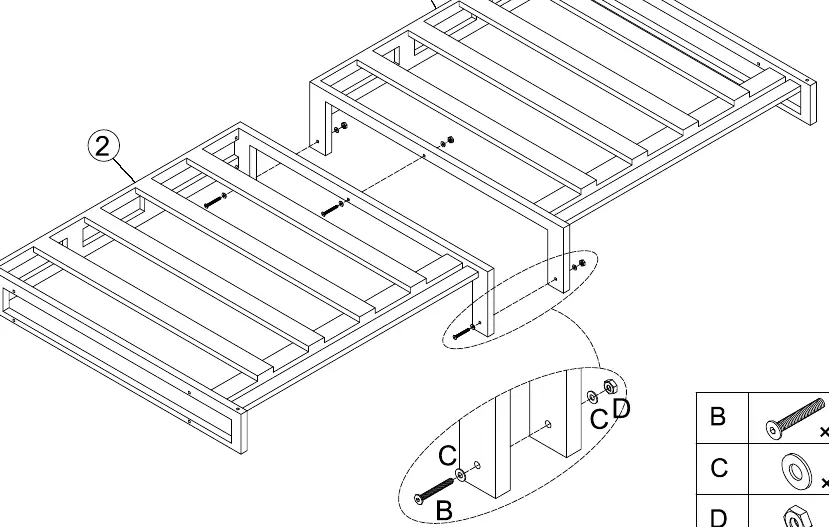

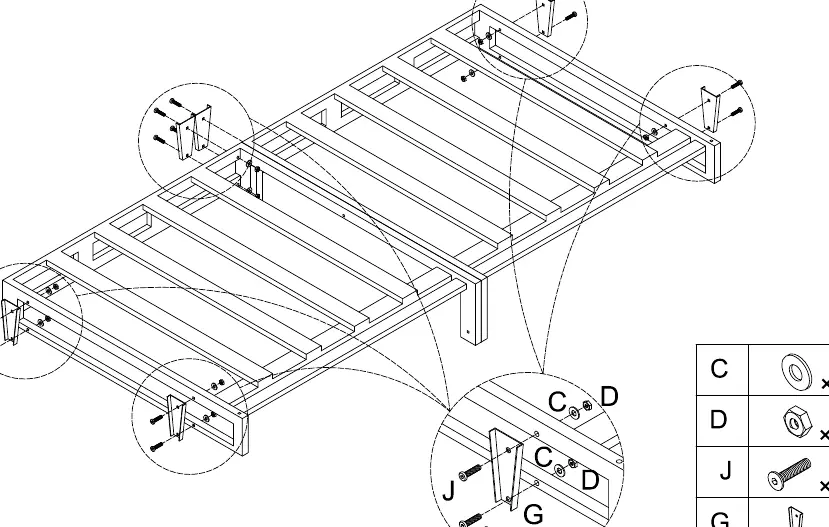

Step 1 & 2: Frame Assembly

Connect the main frame sections using the provided bolts, washers, and nuts. Ensure all connectors are aligned before tightening.

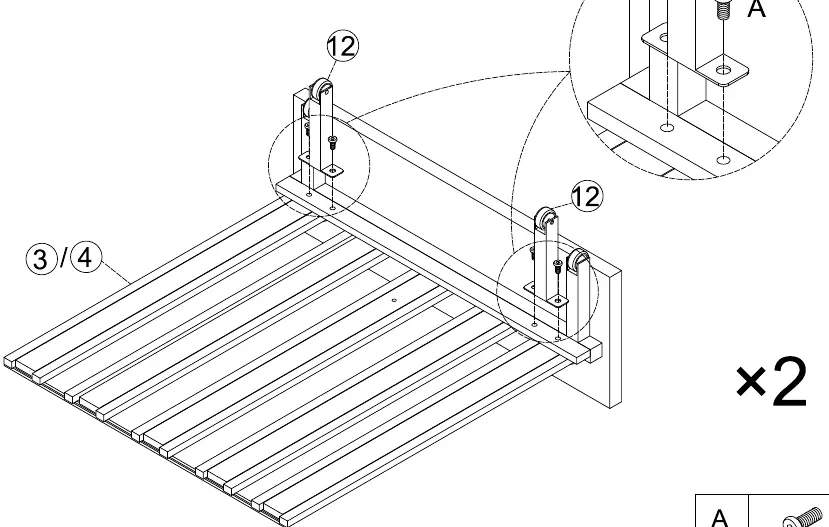

Step 3 & 4: Support and Legs

Attach the support brackets and legs to the frame sections. Ensure the orientation matches the diagrams provided in the manual.

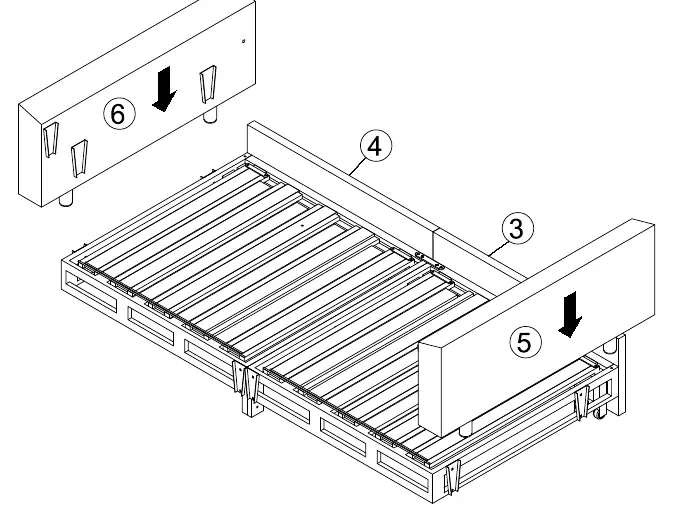

Step 5 & 6: Main Structure

Assemble the main structure by connecting the frame components. Ensure all parts are securely fastened.

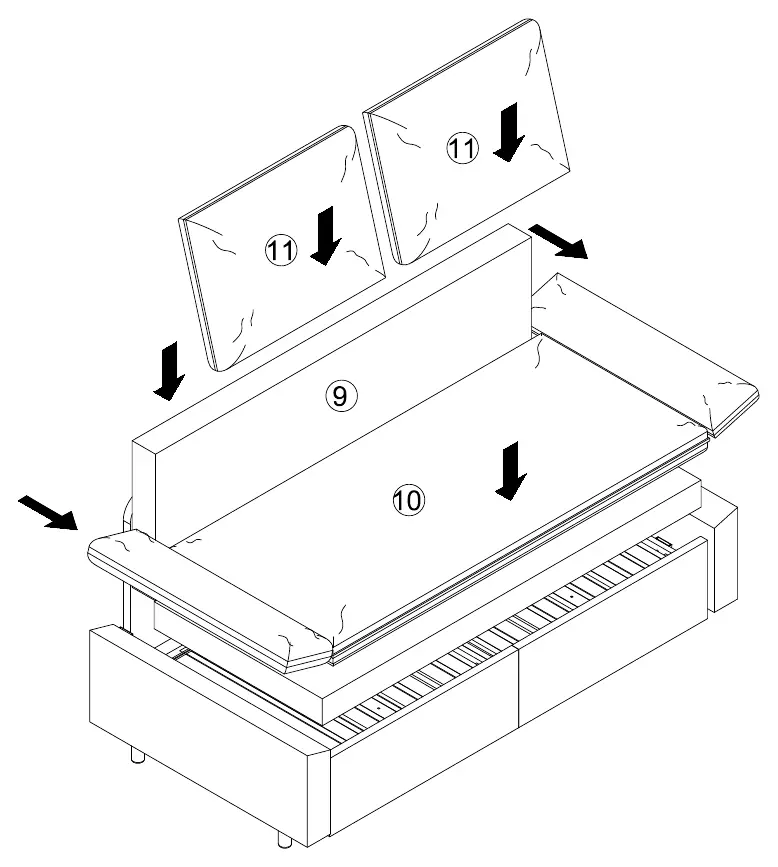

Step 7: Cushions

Place the cushions onto the assembled sofa bed frame as indicated in the final assembly step.
