Husky 36 in. 12-Drawer Chest and Cabinet User Guide

Quick guide from the manual

This guide provides essential information for the assembly, safe operation, and maintenance of the Husky 36 in. 12-Drawer Chest and Cabinet. Always assemble the unit near its final location due to its weight. Ensure the unit is placed on a level surface and that drawers are locked before moving to prevent instability.

Safety Information

• Always push the unit, do not pull it.
• Engage brakes when the unit is stationary.
• Do not tow with power equipment.
• Do not stand on the unit.
• Ensure drawers are fully closed before locking.
• Use two people to move the unit safely.
• Follow all electrical safety precautions if using the integrated power features.

Assembly

1. Attaching the cabinet handle: Position the handle over the holes on the cabinet and secure it using the provided bolts (BB) and hex key (CC).
2. Attaching the casters: With the cabinet on its top, attach the swivel casters (E) on the same side as the handle, then attach the fixed casters (D) on the opposite side using bolts (AA). Tighten securely but do not overtighten.

Operation

Removing drawers: Fully extend the drawer, push up on one release lever while pulling down on the other, and pull the drawer outward until it releases from the slide.

Re-inserting drawers: Extend the slides, align the drawer brackets into the slots, and push the drawer in until it clicks into place.

Top till rubber grommet: When passing cords into the box, enter from the rear and pull back 2-3 inches to ensure the weather-resistant seal is maintained.

Maintenance

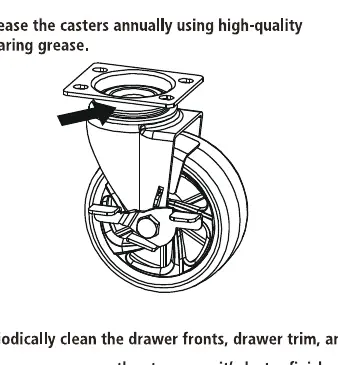

• Casters: Grease annually with high-quality bearing grease.
• Drawer slides: Lubricate semi-annually with high-quality bearing grease.
• Cleaning: Use a mild detergent and water for surfaces. Apply auto wax to preserve the finish and protect against scratches.
