Husky 80 in. 10-Drawer Tool Chest and Cabinet Set with Side Locker

Comprehensive use and care guide for the Husky 80-inch 10-drawer tool chest and cabinet set, including assembly instructions, safety guidelines, and maintenance tips.

Table of contents

Product Overview

The Husky 80-inch 10-drawer tool chest and cabinet set with side locker is a heavy-duty storage solution designed for household use. This unit provides extensive organization for tools and equipment, featuring a robust steel construction with an industrial powder coating for durability. The set includes a top chest, a rolling cabinet, and a side locker, offering a combined storage capacity designed to keep your workspace organized and efficient.

Safety Information

Safety is paramount when using this heavy-duty storage unit. Always place heavier items in the bottom drawers to prevent the unit from tipping. Never open more than one drawer at a time. Ensure the unit is placed on a level surface and keep the locking casters engaged unless moving the cabinet. When moving the unit, always push it rather than pull it. The unit includes a power strip and LED working light; ensure these are used in accordance with electrical safety standards, keeping cords away from heated surfaces and avoiding use in humid environments or outdoors.

Assembly and Setup

Begin assembly close to the final intended location, as the unit is heavy and difficult to move once fully assembled. The assembly process involves attaching the side handle, mounting the top chest to the rolling cabinet, installing security brackets, and attaching the side locker. Two people are recommended for several steps, particularly when placing the chest and attaching the side locker. Ensure all bolts are tightened securely but avoid over-tightening to prevent damage to the finish.

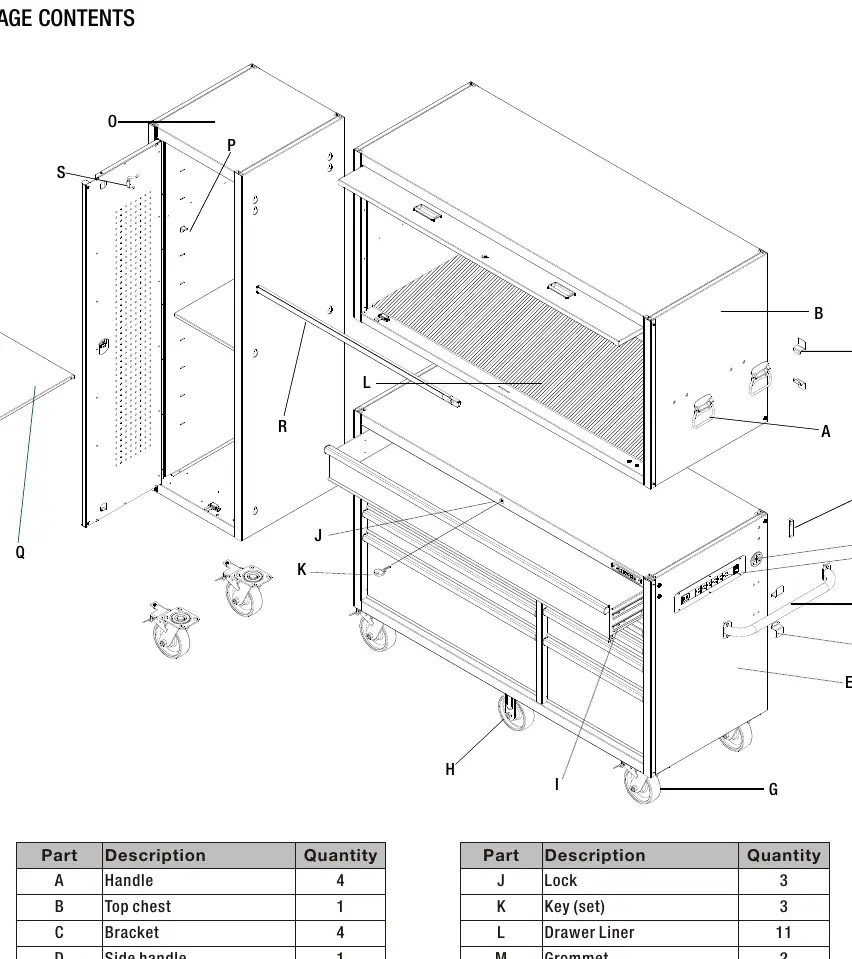

Exploded view of the tool chest and cabinet set components.
Exploded view of the tool chest and cabinet set components.

Operation and Maintenance

To lock or unlock the unit, ensure all drawers are fully closed, then use the provided key. The drawers can be removed or installed by manipulating the plastic release levers on the slides. For maintenance, grease the casters annually with high-quality bearing grease and lubricate the drawer slides semi-annually. Keep the powder-coated finish clean by using a glass cleaner or mild detergent, and avoid allowing harsh chemicals like oil or grease to remain on the surface. Drawer liners are recommended to protect the interior finish and facilitate easier cleaning.

Manufacturer information

Husky

Brand profile

Practical help

Common problems

Unit is unstable or tips over

Ensure the unit is on a level surface and load heavier items in the bottom drawers first.

Drawer slides are stiff or difficult to operate

Lubricate the slides semi-annually with grease or an equivalent lubricant.

Side handle feels loose or breaks

Do not use the side handle for vertical lifting; it is designed only for moving the unit on its casters.

Before use

  • Ensure the unit is on a level surface.
  • Check that all bolts are tightened securely.
  • Verify that locking casters are engaged.
  • Ensure drawers are fully closed before moving.
  • Confirm the power strip is connected to a properly grounded outlet.
  • Install drawer liners to protect the finish.

Specs in practice

Maximum capacity (top chest)
1500 lbs.
Maximum capacity (bottom cabinet)
1800 lbs.
Maximum capacity (side locker)
500 lbs.
Empty weight
771.8 lbs.

Images and diagrams

  • The assembly diagrams illustrate the step-by-step attachment of handles, brackets, and casters.
  • The exploded view in the package contents section helps identify all hardware and components.
  • The drawer removal diagram shows the location of the plastic release levers on the slides.

Model compatibility

  • The power strip is intended for use on a nominal 120-volt circuit.
  • The LED work light is for indoor use only.
