Husqvarna 230i Battery-Powered Chain Saw User Manual
Quick guide for the Husqvarna 230i battery-powered chain saw. Includes assembly, operation, safety instructions, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The Husqvarna 230i is a 36V battery-powered chainsaw. To start, ensure the battery is inserted, engage the chain brake, and press the start/stop button on the user interface until the green LED lights up. p. 20, 31
Key actions
- Adjusting chain tension p. 38
- Sharpening the chain p. 36, 37
First start
- Insert battery and check safety devices p. 29, 31
Show 4 more answers Show less
Problems and fixes
Warning indicator flashes
Check for temperature deviation (let cool) or overload (release trigger).
p. 39Maintenance and reset
- Remove battery before any maintenance p. 28, 34
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Motor | BLDC (brushless) 36V | Electric motor type and voltage | p. 41 |
| Weight | 3.1 kg | Weight without battery, bar, and chain | p. 41 |
| Sound power level | 100 dB(A) | Guaranteed noise emission | p. 41 |
Where to find it in the PDF
- Product Overview p. 20
- Assembly p. 28
- Technical Data p. 41
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Husqvarna 230i is a battery-powered chainsaw designed for forest work such as felling, delimbing, and bucking. Before using the product, ensure you have read the safety instructions, checked the chain tension, and verified that the chain brake is functioning correctly. Always use approved personal protective equipment (PPE) including a helmet, hearing protection, and eye protection.
Product overview
The chainsaw features a user interface with an on/off button, a SaVe button for energy saving, and LED indicators for battery status and warnings. The chain brake is located at the front handguard. The battery is inserted into the rear of the housing.
Safety instructions
- Kickback prevention: Maintain a firm grip with both hands. Do not overreach or cut above shoulder height. Ensure the guide bar tip does not touch objects.
- Personal safety: Always use two hands. Do not operate in rain. Keep bystanders away.
- Battery safety: Use only approved Husqvarna 40-B series batteries and 40-C80 chargers. Do not expose the battery to fire or temperatures above 130°C.
Assembly
To assemble the guide bar and saw chain:
- Disengage the chain brake.
- Loosen the bar knob/nut and remove the drive sprocket cover.
- Place the guide bar on the bar bolt.
- Fit the saw chain over the drive sprocket and into the groove of the guide bar. Ensure the cutters point forward on the top edge of the bar.
- Install the drive sprocket cover and tighten the bar knob/nut.
- Adjust the chain tension until it is tight against the guide bar.
Operation
Starting the product:
- Check the chain brake, power trigger, and power trigger lockout.
- Engage the chain brake.
- Insert the battery.
- Push the start/stop button until the green LED comes on.
Cutting techniques: Always use full power when cutting and decrease to idle speed after each cut. Be aware of the push and pull stroke forces. If the chain gets caught, stop the motor immediately.
Maintenance
Regular maintenance is essential for safety and performance. Perform checks before use, weekly, and monthly. This includes cleaning the external parts, checking the chain brake, inspecting the guide bar for wear, sharpening the saw chain, and cleaning the air inlet. Always remove the battery before performing maintenance.
Troubleshooting
The user interface provides LED feedback for faults. If the warning indicator flashes, it may indicate a temperature deviation or overload. If the battery LED flashes, check the battery charge or temperature. Refer to the troubleshooting table in the manual for specific LED patterns and solutions.
Technical data
The 230i uses a 36V BLDC motor. The weight without battery, bar, and chain is 3.1 kg. Sound power level is 100 dB(A). Vibration levels are 3.5 m/s² (front handle) and 2.4 m/s² (rear handle).
Manufacturer information
Husqvarna
Practical help
Common problems
Chain derailment or excessive wear
Check chain tension and ensure the guide bar groove is clean and not damaged.
Product stops during operation
Check for overload or temperature deviation. Let the product cool down or release the power trigger to reset.
Battery not charging
Ensure the battery temperature is between 5°C and 40°C. Check for battery or charger faults via LED indicators.
Before use
- Check that the chain brake operates correctly.
- Verify the power trigger and lockout function.
- Check chain tension and lubrication.
- Ensure the battery is charged and correctly inserted.
- Inspect the guide bar and chain for cracks or damage.
- Ensure the air inlet is clean.
Show more Show less
Specs in practice
- 36V BLDC Motor
- Brushless DC motor providing efficient power for the chainsaw.
Images and diagrams

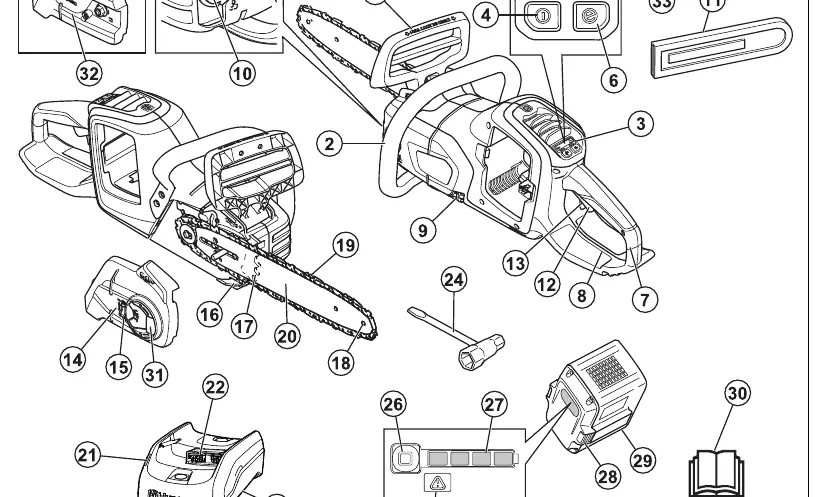

- Fig 1: Overview of all components including chain tensioner, battery, and controls.
- Fig 33: User interface layout showing battery, lock, and warning indicators.

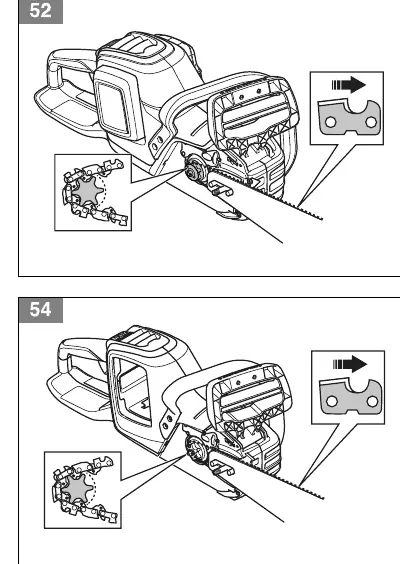

- Fig 50-54: Step-by-step guide for installing the guide bar and chain.
- Fig 136-141: Procedure for adjusting chain tension.
Model compatibility
- Approved batteries: Husqvarna 40-B series (e.g., 40-B140).
- Approved chargers: Husqvarna 40-C80.
- Use only Husqvarna approved guide bar and saw chain combinations.
