Spare Parts List for Husqvarna PW 235R Pressure Washer
Official spare parts list for the Husqvarna PW 235R pressure washer. This guide provides exploded diagrams and part numbers for accessories, internal components, and pump assemblies to assist with maintenance and repairs.
Quick answers from the manual
Quick answer
- This document is a spare parts list for the Husqvarna PW 235R pressure washer, containing exploded diagrams and part numbers for accessories, internal components, and the pump assembly. p. 1, 3, 5, 7
Key actions
- Locate the part number using the exploded diagrams. p. 2, 4, 6
- Verify part details in the corresponding tables. p. 3, 5, 7
Where to find it in the PDF
- Accessories p. 2, 3
- Overview p. 4, 5
Table of contents
Manual images
Click an image to enlargeImportant Information from the Manual
This document is the official spare parts list for the Husqvarna PW 235R pressure washer. It is designed to help users and service technicians identify and order replacement parts. The document contains exploded diagrams and corresponding parts tables for the accessories, main overview, and pump assembly.
Accessories

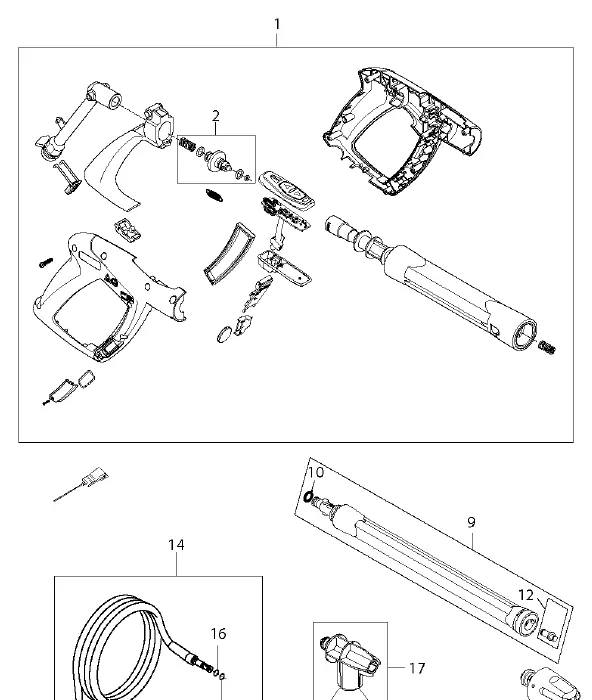

This section details the external components and accessories for the PW 235R. Key parts include:
- Gun: G3 Wireless Gun (Dark Grey).
- Nozzles: Includes C&C Foam Sprayer, PR Tornado (Turquoise for AU, Yellow for EU), and C&C Powerspeed.
- Hose: Soft DN6 8M hose with thread.
- Service Kit: Includes G3 gun spring and valve.
- O-Rings: Various sizes for sealing connections.
Overview

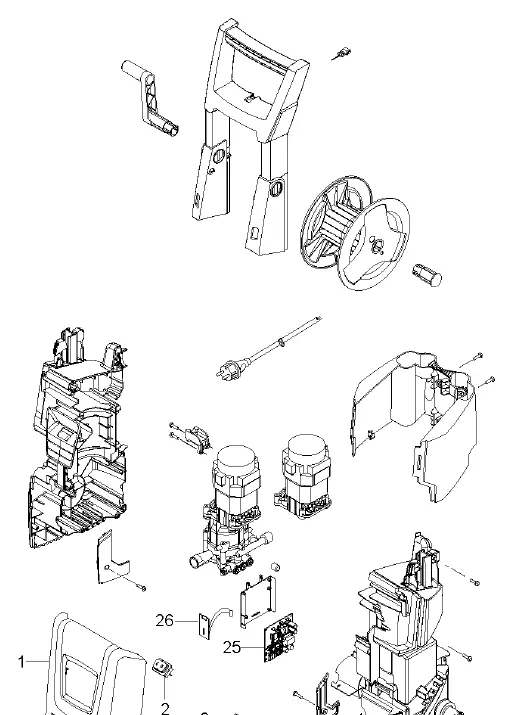

This section covers the main internal and external housing components of the pressure washer, including:
- Front Cover: Specific to the PW 235R model.
- Electrical Components: Main switch, universal capacitor, EMC coil, and printed circuit boards (PCBA) for the wireless gun motor and machine RF module.
Pump Assembly

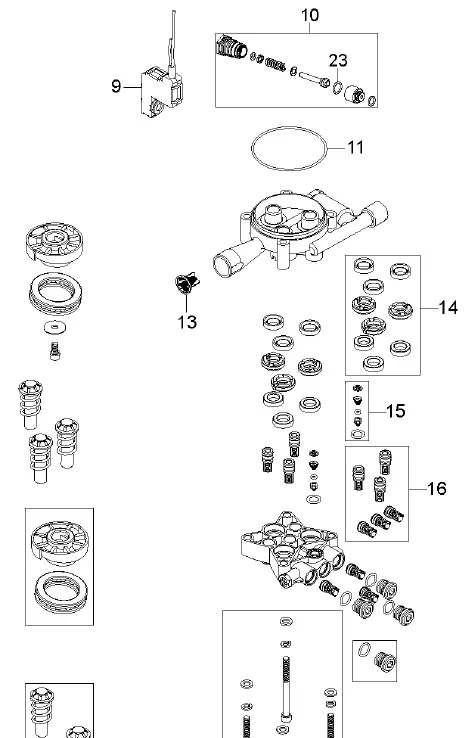

This section details the internal pump mechanism, which is critical for the pressure washer's operation. Key components include:
- Piston Assembly: DIA.12 pump piston kit.
- Switchbox: Micro switch box kit and start/stop system kit.
- Valves and Filters: Water filter, non-return valve kit, and suction/pressure valve kit.
- Seals: Various O-rings for the start/stop valve and pump housing.
Manufacturer information
Husqvarna
Practical help
Before use
- Identify the specific part number from the exploded diagrams.
- Verify the part description and remark (e.g., specific nozzle type or O-ring size).
- Ensure the correct quantity is ordered for the assembly.
- Check for region-specific parts (e.g., AU vs EU nozzles).
Images and diagrams
- The diagrams provide exploded views of the pressure washer components.
- Numbers in the diagrams correspond to the 'Ref' column in the parts tables.
Show more Show less
Model compatibility
- Some parts are region-specific (e.g., PR TORNADO TURQUOISE for AU vs YELLOW for EU).
